Installing and configuring the Persistent Mobile Foundation Application Center

Overview

You install the Application Center as part of the PMF installation. You can install it with one of the following methods:

• Installation with Ant tasks
• Manual installation

Optionally, you can create the database of your choice before you install PMF with the Application Center. For more information, see Optional creation of databases.

After you installed the Application Center in the web application server of your choice, you have additional configuration to do. For more information, see Configuring Application Center after installation. If you chose a manual setup in the installer, see the documentation of the server of your choice.

Note: If you intend to install applications on iOS devices through the Application Center, you must first configure the Application Center server with SSL.

Optional creation of databases

If you want to activate the option to install the Application Center when you run the PMF installer, you need to have certain database access rights that entitle you to create the tables that are required by the Application Center. The database needs to be created before you start the PMF installer.

The following topics describe the procedure for the supported database management systems.

Jump to

• Creating the DB2 database for PMF Application Center
• Creating the MySQL database for PMF Application Center
• Creating the Oracle database for PMF Application Center

Creating the DB2 database for PMF Application Center

During the Persistent Mobile Foundation installation, the installer can create the Application Center database for you.

The installer can create the Application Center database for you if you enter the name and password of a user account on the database server that has the DB2 SYSADM or SYSCTRL privilege, and the account can be accessed through SSH. Otherwise, the database administrator can create the Application Center database for you. For more information, see the DB2 Solution user documentation.

When you manually create the database, you can replace the database name (here APPCNTR) and the password with a database name and password of your choosing.

Important: You can name your database and user differently, or set a different password, but ensure that you enter the appropriate database name, user name, and password correctly across the DB2 database setup. DB2 has a database name limit of 8 characters on all platforms, and has a user name and password length limit of 8 characters for UNIX and Linux systems, and 30 characters for Windows.

1. Create a system user, for example, named wluser in a DB2 admin group such as DB2USERS, using the appropriate commands for your operating system. Give it a password, for example, wluser. If you want multiple instances of PMF to connect to the same database, use a different user name for each connection. Each database user has a separate default schema. For more information about database users, see the DB2 documentation and the documentation for your operating system.

2. Open a DB2 command line processor, with a user that has SYSADM or SYSCTRL permissions:

   • On Windows systems, click Start → IBM DB2 → Command Line Processor
   • On Linux or UNIX systems, navigate to ~/sqllib/bin and enter ./db2.

   • Enter database manager and SQL statements similar to the following example to create the Application Center database, replacing the user name wluser with your chosen user names:

     CREATE DATABASE APPCNTR COLLATE USING SYSTEM PAGESIZE 32768
     CONNECT TO APPCNTR
     GRANT CONNECT ON DATABASE TO USER wluser
     DISCONNECT APPCNTR
     QUIT


3. The installer can create the database tables and objects for Application Center in a specific schema. This allows you to use the same database for PMF Application Center and for a PMF server project. If the IMPLICIT_SCHEMA authority is granted to the user created in step 1 (the default in the database creation script in step 2), no further action is required. If the user does not have the IMPLICIT_SCHEMA authority, you need to create a SCHEMA for the Application Center database tables and objects.

Creating the MySQL database for PMF Application Center

During the PMF installation, the installer can create the PMF Application Center database for you.

The installer can create the database for you if you enter the name and password of the superuser account. For more information, see Securing the Initial MySQL Accounts on your MySQL database server. Your database administrator can also create the databases for you. When you manually create the database, you can replace the database name (here APPCNTR) and password with a database name and password of your choosing. Note that MySQL database names are case-sensitive on UNIX.

1. Start the MySQL command-line tool.

2. Enter the following commands:

   CREATE DATABASE APPCNTR CHARACTER SET utf8 COLLATE utf8_general_ci;
   GRANT ALL PRIVILEGES ON APPCNTR.* TO 'PMF'@'PMF-host' IDENTIFIED BY 'password';
   GRANT ALL PRIVILEGES ON APPCNTR.* TO 'PMF'@'localhost' IDENTIFIED BY 'password';
   FLUSH PRIVILEGES;


   Here, you need to replace PMF-host with the name of the host on which PMF runs.

Creating the Oracle database for PMF Application Center

During the installation, the installer can create the PMF Application Center database, except for the Oracle 12c database type, or the user and schema inside an existing database for you.

The installer can create the database, except for the Oracle 12c database type, or the user and schema inside an existing database if you enter the name and password of the Oracle administrator on the database server, and the account can be accessed through SSH. Otherwise, the database administrator can create the database or user and schema for you. When you manually create the database or user, you can use database names, user names, and a password of your choosing. Note that lowercase characters in Oracle user names can lead to trouble.

1. If you do not already have a database named ORCL, use the Oracle Database Configuration Assistant (DBCA) and follow the steps in the wizard to create a new general-purpose database named ORCL:
   • Use global database name ORCL_your_domain, and system identifier (SID) ORCL.
   • On the Custom Scripts tab of the step Database Content, do not run the SQL scripts, because you must first create a user account.
   • On the Character Sets tab of the step Initialization Parameters, select Use Unicode (AL32UTF8) character set and UTF8 - Unicode 3.0 UTF-8 national character set.
   • Complete the procedure, accepting the default values.
2. Create a database user either by using Oracle Database Control, or by using the Oracle SQLPlus command-line interpreter.
   • Using Oracle Database Control:
     • Connect as SYSDBA.
     • Go to the Users page: click Server, then Users in the Security section.
     • Create a user, for example, named APPCENTER. If you want multiple instances of Persistent PMF to connect to the same general-purpose database you created in step 1, use a different user name for each connection. Each database user has a separate default schema.
     • Assign the following attributes:
       • Profile: DEFAULT
       • Authentication: password
       • Default tablespace: USERS
       • Temporary tablespace: TEMP
       • Status: Unlocked
       • Add system privilege: CREATE SESSION
       • Add system privilege: CREATE SEQUENCE
       • Add system privilege: CREATE TABLE
       • Add quota: Unlimited for tablespace USERS

   • Using the Oracle SQLPlus command-line interpreter:
     The commands in the following example create a user named APPCENTER for the database:

       CONNECT SYSTEM/<SYSTEM_password>@ORCL
       CREATE USER APPCENTER IDENTIFIED BY password DEFAULT TABLESPACE USERS QUOTA UNLIMITED ON USERS;
       GRANT CREATE SESSION, CREATE SEQUENCE, CREATE TABLE TO APPCENTER;
       DISCONNECT;


     Note while using Oracle as database: If you are using same schema for both MFPADMIN & APPCENTER components, please check that, ‘OPEN_JPA_SEQUENCE_TABLE’ exists before installing MFPAdmin. If table exists, please delete it with below steps. Installation script should re-create it. <Add steps for executing delete table script present in our installer>

Jump to

• Installing the PMF Application Center with Ant tasks
• Manually installing PMF Application Center
• Configuring PMF Application Center after installation

Installing the Persistent Mobile Foundation Application Center with Ant tasks

Learn about the Ant tasks that you can use to install PMF Application Center.

Jump to

• Creating and configuring the database for PMF Application Center with Ant tasks
• Deploying the PMF Application Center Console and Services with Ant tasks

Creating and configuring the database for PMF Application Center with Ant tasks

If you did not manually create the database, you can use Ant tasks to create and configure your database for PMF Application Center. If your database already exists, you can perform only the configuration steps with Ant tasks.

Before you begin, make sure that a database management system (DBMS) is installed and running on a database server, which can be on the same computer, or a different one.

The Ant tasks for PMF Application Center are in the ApplicationCenter/configuration-samples directory of the PMF distribution.

If you want to start the Ant task from a computer where PMF is not installed, you must copy the following files to that computer:

• The library pmf_install_dir/MobileFoundationServer/mfp-ant-deployer.jar
• The directory that contains binary files of the aapt program, from the Android SDK platform-tools package: pmf_install_dir/ApplicationCenter/tools/android-sdk
• The Ant sample files that are in pmf_install_dir/ApplicationCenter/configuration-samples

Note: The pmf_install_dir placeholder represents the directory where you installed PMF.

If you did not create your database manually, as described in Optional creation of databases, follow steps 1 to 3 below. If your database already exists, you must create only the database tables. Follow steps 4 to 7 below.

1. Copy the sample Ant file that corresponds to your DBMS. The files for creating a database are named after the following pattern:

    create-appcenter-database-<dbms>.xml


2. Edit the Ant file, and replace the placeholder values with the properties at the beginning of the file.

3. Run the following commands to create the Application Center database:

    ant -f create-appcenter-database-<dbms>.xml databases


   If the database already exists, then you must create only the database tables by completing the following steps:

4. Copy the sample Ant file that corresponds to both your application server, and your DBMS. The files for configuring an existing database are named after this pattern:

    configure-appcenter-<appServer>-<dbms>.xml


5. Edit the Ant file, and replace the placeholder values with the properties at the beginning of the file.

6. Run the following commands to configure the database:

    ant -f configure-appcenter-<appServer>-<dbms>.xml databases


7. Save the Ant file. You might need it later to apply a fix pack, or perform an upgrade.

If you do not want to save the passwords, you can replace them by “****” (12 stars) for interactive prompting.

Deploying the Application Center Console and Services with Ant tasks

Use Ant tasks to deploy the Application Center Console and Services to an application server, and configure data sources, properties, and database drivers that are used by Application Center.

Before you begin,

• Complete the procedure at Creating and configuring the database for Application Center with Ant tasks.

• You must run the Ant task on the computer where the application server is installed. If you want to start the Ant task from a computer where PMF is not installed, you must copy the following files and directories to that computer:

  • The library pmf_install_dir/MobileFoundationServer/mfp-ant-deployer.jar
  • The web applications (WAR and EAR files) in mf_server_install_dir/ApplicationCenter/console
  • The directory that contains the binary files of the aapt program, from the Android SDK platform-tools package: pmf_install_dir/ApplicationCenter/tools/android-sdk
  • The Ant sample files that are in pmf_install_dir/ApplicationCenter/configuration-samples

Note: The  pmf_install_dir placeholder represents the directory where you installed PMF.

1. Copy the Ant file that corresponds both to your application server, and your DBMS. The files for configuring Application Center are named after the following pattern:

    configure-appcenter-<appserver>-<dbms>.xml


2. Edit the Ant file, and replace the placeholder values with the properties at the beginning of the file.

3. Run the following command to deploy the Application Center Console and Services to an application server:

    ant -f configure-appcenter-<appserver>-<dbms>.xml install


   Note: With these Ant files, you can also do the following actions:

   • Uninstall Application Center, with the target uninstall.
   • Update Application Center with the target update, to apply a fix pack.

4. Save the Ant file. You might need it later to apply a fix pack or perform an upgrade. If you do not want to save the passwords, you can replace them by “****” (12 stars) for interactive prompting.

5. If you installed on WebSphere Application Server Liberty profile, check that the aapt program is executable for all users. If needed, you must set the proper user rights. For example, on UNIX / Linux systems:

    chmod a+x  pmf_install_dir/ApplicationCenter/tools/android-sdk/*/aapt*


Manually installing Application Center

A reconfiguration is necessary for the PMF to use a database or schema that is different from the one that was specified during its installation. This reconfiguration depends on the type of database and on the kind of application server.

On application server, you can deploy Application Center from two WAR files or one EAR file.

Jump to

• Configuring the DB2 database manually for Application Center
• Configuring the Apache Derby database manually for Application Center
• Configuring the MySQL database manually for Application Center
• Configuring the Oracle database manually for Application Center
• Deploying the Application Center WAR files and configuring the application server manually
• Deploying the Application Center EAR file and configuring the application server manually

Configuring the DB2 database manually for Application Center

You configure the DB2 database manually by creating the database, creating the database tables, and then configuring the relevant application server to use this database setup.

1. Create the database. This step is described in Creating the DB2 database for Application Center.
2. Create the tables in the database. This step is described in Setting up your DB2 database manually for Application Center.
3. Perform the application server-specific setup as the following list shows.

Jump to

• Setting up your DB2 database manually for Application Center
• Configuring Liberty profile for DB2 manually for Application Center

Setting up your DB2 database manually for Application Center

Set up your DB2 database for Application Center by creating the database schema.

1. Create a system user, PMF, in a DB2 admin group such as DB2USERS, by using the appropriate commands for your operating system. Give it the password PMF. For more information, see the DB2 documentation and the documentation for your operating system.

Important: You can name your user differently, or set a different password, but ensure that you enter the appropriate user name and password correctly across the DB2 database setup. DB2 has a user name and password length limit of 8 characters for UNIX and Linux systems, and 30 characters for Windows.

1. Open a DB2 command line processor, with a user that has SYSADM or SYSCTRL permissions:
   • On Windows systems, click Start → IBM DB2 → Command Line Processor.
   • On Linux or UNIX systems, go to ~/sqllib/bin and enter ./db2.

2. Enter the following database manager and SQL statements to create a database that is called APPCNTR:

   CREATE DATABASE APPCNTR COLLATE USING SYSTEM PAGESIZE 32768
   CONNECT TO APPCNTR
   GRANT CONNECT ON DATABASE TO USER PMF
   QUIT


3. Run DB2 with the following commands to create the APPCNTR tables, in a schema named APPSCHM (the name of the schema can be changed). This command can be run on an existing database that has a page size compatible with the one defined in step 3.

   db2 CONNECT TO APPCNTR
   db2 SET CURRENT SCHEMA = 'APPSCHM'
   db2 -vf  pmf_install_dir/ApplicationCenter/databases/create-appcenter-db2.sql -t


Configuring Liberty profile for DB2 manually for Application Center

You can set up and configure your DB2 database manually for Application Center with WebSphere® Application Server Liberty profile.
Complete the DB2 Database Setup procedure before continuing.

1. Add the DB2 JDBC driver JAR file to $LIBERTY_HOME/wlp/usr/shared/resources/db2.

   If that directory does not exist, create it. You can retrieve the file in one of two ways:

   • Download it from DB2 JDBC Driver Versions.
   • Fetch it from the db2_install_dir/java on the DB2 server directory.

2. Configure the data source in the $LIBERTY_HOME/wlp/usr/servers/PMFServer/server.xml file as follows:

   In this path, you can replace PMFServer by the name of your server.

   <library id="DB2Lib">
        <fileset dir="${shared.resource.dir}/db2" includes="*.jar"/>
   </library>

   <!-- Declare the PMF Application Center database. -->
   <dataSource jndiName="jdbc/AppCenterDS" transactional="false">
      <jdbcDriver libraryRef="DB2Lib"/>
      <properties.db2.jcc databaseName="APPCNTR"  currentSchema="APPSCHM"
            serverName="db2server" portNumber="50000"
            user="PMF" password="PMF"/>
   </dataSource>


   The PMF placeholder after user= is the name of the system user with CONNECT access to the APPCNTR database that you have previously created.

   The PMF placeholder after password= is this user’s password. If you have defined either a different user name, or a different password, or both, replace PMF accordingly. Also, replace db2server with the host name of your DB2 server (for example, localhost, if it is on the same computer).

   DB2 has a user name and password length limit of 8 characters for UNIX and Linux systems, and 30 characters for Windows.

3. You can encrypt the database password with the securityUtility program in liberty_install_dir/bin.

Configuring the Apache Derby database manually for Application Center

You configure the Apache Derby database manually by creating the database and database tables, and then configuring the relevant application server to use this database setup.

1. Create the database and the tables within them. This step is described in Setting up your Apache Derby database manually for Application Center.
2. Configure the application server to use this database setup. Go to one of the following topics.

Jump to

• Setting up your Apache Derby database manually for Application Center
• Configuring Liberty profile for Derby manually for Application Center

Setting up your Apache Derby database manually for Application Center

Set up your Apache Derby database for Application Center by creating the database schema.

1. In the location where you want the database to be created, run ij.bat on Windows systems or ij.sh on UNIX and Linux systems.

   Note: The ij program is part of Apache Derby. If you do not already have it installed, you can download it from Apache Derby: Downloads.

   For supported versions of Apache Derby, see System requirements.
   The script displays ij version number.

2. At the command prompt, enter the following commands:

   connect 'jdbc:derby:APPCNTR;user=APPCENTER;create=true';
   run '< pmf_install_dir>/ApplicationCenter/databases/create-appcenter-derby.sql';
   quit;


Configuring Liberty profile for Derby manually for Application Center

If you want to manually set up and configure your Apache Derby database for Application Center with WebSphere Application Server Liberty profile, use the following procedure. Complete the Apache Derby database setup procedure before continuing.

Configure the data source in the $LIBERTY_HOME/usr/servers/PMFServer/server.xml file (PMFServer may be replaced in this path by the name of your server) as follows:

<!-- Declare the jar files for Derby access through JDBC. -->
<library id="derbyLib">
  <fileset dir="C:/Drivers/derby" includes="derby.jar" />
</library>

<!-- Declare the PMF Application Center database. -->
<dataSource jndiName="jdbc/AppCenterDS" transactional="false" statementCacheSize="10">
  <jdbcDriver libraryRef="derbyLib"
              javax.sql.ConnectionPoolDataSource="org.apache.derby.jdbc.EmbeddedConnectionPoolDataSource40"/>
  <properties.derby.embedded databaseName="DERBY_DATABASES_DIR/APPCNTR" user="APPCENTER"
                             shutdownDatabase="false" connectionAttributes="upgrade=true"/>
  <connectionManager connectionTimeout="180"
                     maxPoolSize="10" minPoolSize="1"
                     reapTime="180" maxIdleTime="1800"
                     agedTimeout="7200" purgePolicy="EntirePool"/>
</dataSource>

Configuring the MySQL database manually for Application Center

You configure the MySQL database manually by creating the database, creating the database tables, and then configuring the relevant application server to use this database setup.

1. Create the database. This step is described in Creating the MySQL database for Application Center.
2. Create the tables in the database. This step is described in Setting up your MySQL database manually for Application Center.
3. Perform the application server-specific setup as the following list shows.

Jump to

• Setting up your MySQL database manually for Application Center
• Configuring Liberty profile for MySQL manually for Application Center

Setting up your MySQL database manually for Application Center

Complete the following procedure to set up your MySQL database.

1. Create the database schema.
   • Run a MySQL command line client with the option -u root.
   • Enter the following commands:

   CREATE DATABASE APPCNTR CHARACTER SET utf8 COLLATE utf8_general_ci;
   GRANT ALL PRIVILEGES ON APPCNTR.* TO 'PMF'@'PMF-host'IDENTIFIED BY 'PMF';
   GRANT ALL PRIVILEGES ON APPCNTR.* TO 'PMF'@'localhost' IDENTIFIED BY 'PMF';
   FLUSH PRIVILEGES;

   USE APPCNTR;
   SOURCE  pmf_install_dir/ApplicationCenter/databases/create-appcenter-mysql.sql;


   Where PMF before the “at” sign (@) is the user name, PMF after IDENTIFIED BY is its password, and PMF-host is the name of the host on which the Persistent Mobile Foundation runs.

2. Add the following property to your MySQL option file: max_allowed_packet=256M.
   For more information about option files, see the MySQL documentation at MySQL.

3. Add the following property to your MySQL option file: innodb_log_file_size = 250M
   For more information about the innodb_log_file_size property, see the MySQL documentation, section innodb_log_file_size.

Configuring Liberty profile for MySQL manually for Application Center

If you want to manually set up and configure your MySQL database for Application Center with WebSphere Application Server Liberty profile, use the following procedure. Complete the MySQL database setup procedure before continuing.

Note: MySQL in combination with WebSphere Application Server Liberty profile is not classified as a supported configuration.

1. Add the MySQL JDBC driver JAR file to $LIBERTY_HOME/wlp/usr/shared/resources/mysql. If that directory does not exist, create it.

2. Configure the data source in the $LIBERTY_HOME/usr/servers/PMFServer/server.xml file (PMFServer may be replaced in this path by the name of your server) as follows:

   <!-- Declare the jar files for MySQL access through JDBC. -->
   <library id="MySQLLib">
      <fileset dir="${shared.resource.dir}/mysql" includes="*.jar"/>
   </library>

   <!-- Declare the PMF Application Center database. -->
   <dataSource jndiName="jdbc/AppCenterDS" transactional="false">
      <jdbcDriver libraryRef="MySQLLib"/>
   <properties databaseName="APPCNTR"
              serverName="mysqlserver" portNumber="3306"
              user="PMF" password="password"/>
   </dataSource>


   Where PMF after user= is the user name, password after password= is this user’s password, and mysqlserver is the host name of your MySQL server (for example, localhost, if it is on the same machine).

3. You can encrypt the database password with the securityUtility program in <liberty_install_dir>/bin.

Configuring the Oracle database manually for Application Center

You configure the Oracle database manually by creating the database, creating the database tables, and then configuring the relevant application server to use this database setup.

1. Create the database. This step is described in Creating the Oracle database for Application Center.
2. Create the tables in the database. This step is described in Setting up your Oracle database manually for Application Center.
3. Perform the application server-specific setup as the following list shows.

Jump to

• Setting up your Oracle database manually for Application Center
• Configuring Liberty profile for Oracle manually for Application Center

Setting up your Oracle database manually for Application Center

Complete the following procedure to set up your Oracle database.

1. Ensure that you have at least one Oracle database.

   In many Oracle installations, the default database has the SID (name) ORCL. For best results, specify Unicode (AL32UTF8) as the character set of the database.

   If the Oracle installation is on a UNIX or Linux computer, make sure that the database is started next time the Oracle installation is restarted. To this effect, make sure that the line in /etc/oratab that corresponds to the database ends with a Y, not with an N.

2. Create the user APPCENTER, either by using Oracle Database Control, or by using the Oracle SQLPlus command-line interpreter.
   • To create the user for the Application Center database/schema, by using Oracle Database Control, proceed as follows:
     • Connect as SYSDBA.
     • Go to the Users page.
     • Click Server, then Users in the Security section.
     • Create a user, named APPCENTER with the following attributes:

     Profile: DEFAULT
     Authentication: password
     Default tablespace: USERS
     Temporary tablespace: TEMP
     Status: Unlocked
     Add system privilege: CREATE SESSION
     Add system privilege: CREATE SEQUENCE
     Add system privilege: CREATE TABLE
     Add quota: Unlimited for tablespace USERS


   • To create the user by using Oracle SQLPlus, enter the following commands:

     CONNECT SYSTEM/<SYSTEM_password>@ORCL
     CREATE USER APPCENTER IDENTIFIED BY password DEFAULT TABLESPACE USERS QUOTA UNLIMITED ON USERS;
     GRANT CREATE SESSION, CREATE SEQUENCE, CREATE TABLE TO APPCENTER;
     DISCONNECT;


3. Create the tables for the Application Center database:
   • Using the Oracle SQLPlus command-line interpreter, create the tables for the Application Center database by running the create-appcenter-oracle.sql file:

   CONNECT APPCENTER/APPCENTER_password@ORCL
   @pmf_install_dir/ApplicationCenter/databases/create-appcenter-oracle.sql
   DISCONNECT;


4. Download and configure the Oracle JDBC driver:
   • Download the JDBC driver from the Oracle website at Oracle: JDBC, SQLJ, Oracle JPublisher and Universal Connection Pool (UCP).
   • Ensure that the Oracle JDBC driver is in the system path. The driver file is ojdbc6.jar.

Configuring Liberty profile for Oracle manually for Application Center

You can set up and configure your Oracle database manually for Application Center with WebSphere Application Server Liberty profile by adding the JAR file of the Oracle JDBC driver. Before continuing, set up the Oracle database.

1. Add the JAR file of the Oracle JDBC driver to $LIBERTY_HOME/wlp/usr/shared/resources/oracle. If that directory does not exist, create it.

2. If you are using JNDI, configure the data sources in the $LIBERTY_HOME/wlp/usr/servers/MobileFoundationServer/server.xml file as shown in the following JNDI code example:

   Note: In this path, you can replace MobileFoundationServer with the name of your server.

   <!-- Declare the jar files for Oracle access through JDBC. -->
   <library id="OracleLib">
      <fileset dir="${shared.resource.dir}/oracle" includes="*.jar"/>
   </library>

   <!-- Declare the PMF Application Center database. -->
   <dataSource jndiName="jdbc/AppCenterDS" transactional="false">
      <jdbcDriver libraryRef="OracleLib"/>
      <properties.oracle driverType="thin"
                         serverName="oserver" portNumber="1521"
                         databaseName="ORCL"
                         user="APPCENTER" password="APPCENTER_password"/>
   </dataSource>


   Where:

   • APPCENTER after user= is the user name,
   • APPCENTER_password after password= is this user’s password, and
   • oserver is the host name of your Oracle server (for example, localhost if it is on the same machine).

   Note: For more information on how to connect the Liberty server to the Oracle database with a service name, or with a URL, see the WebSphere Application Server Liberty Core 8.5.5 documentation, section properties.oracle.

3. You can encrypt the database password with the securityUtility program in liberty_install_dir/bin.

Deploying the Application Center WAR files and configuring the application server manually

The procedure to manually deploy the Application Center WAR files manually to an application server depends on the type of application server being configured.
These manual instructions assume that you are familiar with your application server.

Note: Using the PMF installer to install Application Center is more reliable than installing manually, and should be used whenever possible.

If you prefer to use the manual process, follow these steps to configure your application server for Application Center. You must deploy the appcenterconsole.war and applicationcenter.war files to your Application Center. The files are located in pmf_install_dir/ApplicationCenter/console.

Jump to

• Configuring the Liberty profile for Application Center manually

Configuring the Liberty profile for Application Center manually

To configure WebSphere Application Server Liberty profile manually for Application Center, you must modify the server.xml file.
In addition to modifications for the databases that are described in Manually installing Application Center, you must make the following modifications to the server.xml file.

1. Ensure that the <featureManager> element contains at least the following <feature> elements:

   <feature>jdbc-4.0</feature>
   <feature>appSecurity-2.0</feature>
   <feature>servlet-3.0</feature>
   <feature>usr:MFPDecoderFeature-1.0</feature>


2. Add the following declarations for Application Center:

   <!-- The directory with binaries of the 'aapt' program, from the Android SDK's
         platform-tools package. -->
   <jndiEntry jndiName="android.aapt.dir" value="pmf_install_dir/ApplicationCenter/tools/android-sdk"/>
   <!-- Declare the Application Center Console application. -->
   <application id="appcenterconsole"
                 name="appcenterconsole"
                 location="appcenterconsole.war"
                 type="war">
      <application-bnd>
        <security-role name="appcenteradmin">
          <group name="appcentergroup"/>
        </security-role>
      </application-bnd>
      <classloader delegation="parentLast">
      </classloader>
   </application>

   <!-- Declare the PMF Application Center Services application. -->
   <application id="applicationcenter"
                 name="applicationcenter"
                 location="applicationcenter.war"
                 type="war">
      <application-bnd>
        <security-role name="appcenteradmin">
          <group name="appcentergroup"/>
        </security-role>
      </application-bnd>
      <classloader delegation="parentLast">
      </classloader>
   </application>

   <!-- Declare the user registry for the PMF Application Center. -->
   <basicRegistry id="applicationcenter-registry"
                   realm="ApplicationCenter">

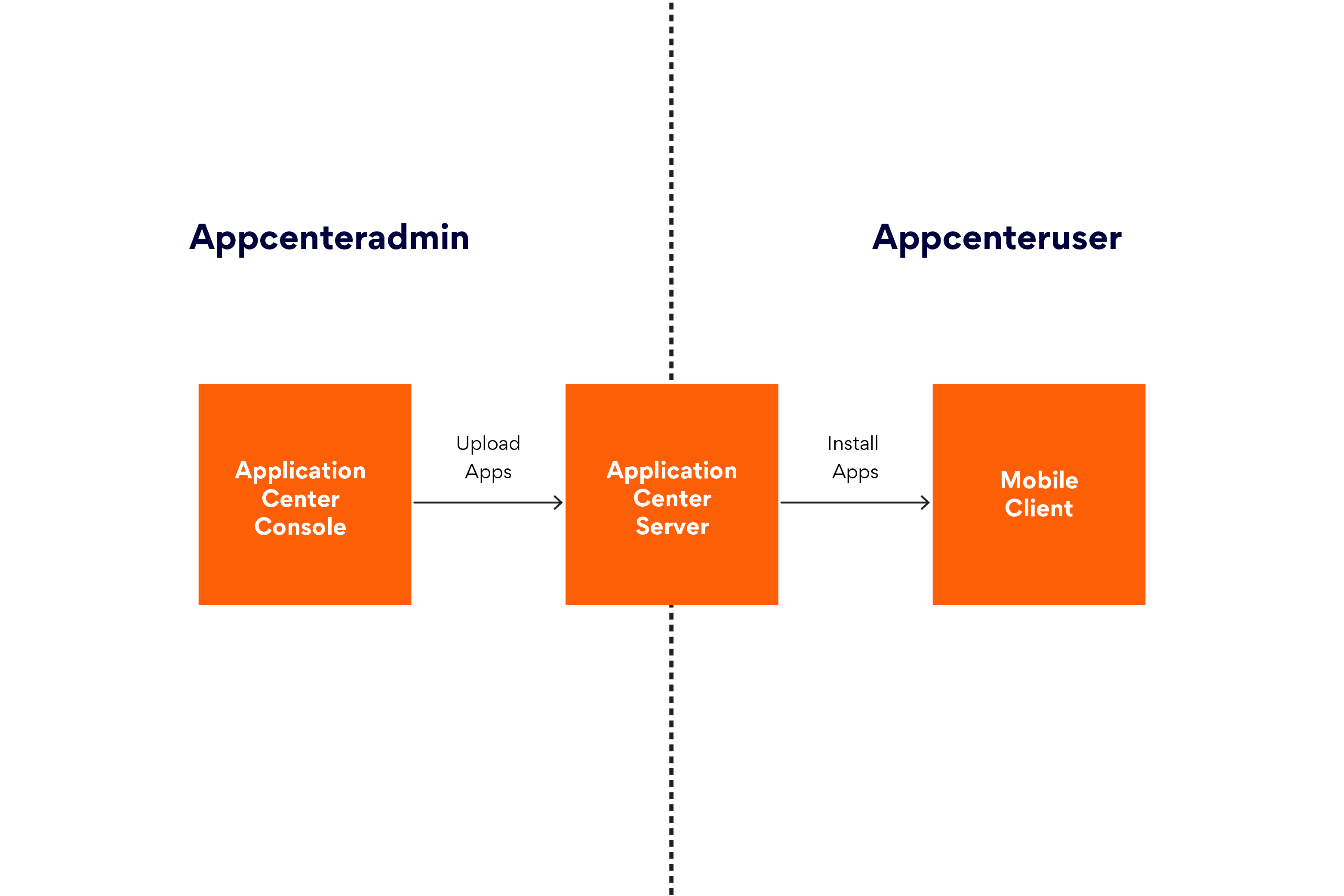

      <!-- The users defined here are members of group "appcentergroup",
           thus have role "appcenteradmin", and can therefore perform
           administrative tasks through the Application Center Console. -->
      <user name="appcenteradmin" password="admin"/>
      <user name="demo" password="demo"/>
      <group name="appcentergroup">
        <member name="appcenteradmin"/>
        <member name="demo"/>
      </group>
   </basicRegistry>


   The groups and users that are defined in the basicRegistry are example logins that you can use to test Application Center. Similarly, the groups that are defined in the <security-role name="appcenteradmin"> for the Application Center console and the Application Center service are examples. For more information about how to modify these groups, see Configuring the Java EE security roles on WebSphere Application Server Liberty profile.

3. If the database is Oracle, add the commonLibraryRef attribute to the class loader of the Application Center service application.

   ...
   <classloader delegation="parentLast"  commonLibraryRef="OracleLib">
   ...


   The name of the library reference (OracleLib in this example) must be the ID of the library that contains the JDBC JAR file. This ID is declared in the procedure that is documented in Configuring Liberty profile for Oracle manually for Application Center.

4. Copy the Application Center WAR files to your Liberty server.

   • On UNIX and Linux systems:

     mkdir -p LIBERTY_HOME/wlp/usr/servers/server_name/apps
     cp  pmf_install_dir/ApplicationCenter/console/*.war LIBERTY_HOME/wlp/usr/servers/server_name/apps/


   • On Windows systems:

     mmkdir LIBERTY_HOME\wlp\usr\servers\server_name\apps
     copy /B  pmf_install_dir\ApplicationCenter\console\appcenterconsole.war
     LIBERTY_HOME\wlp\usr\servers\server_name\apps\appcenterconsole.war
     copy /B  pmf_install_dir\ApplicationCenter\console\applicationcenter.war
     LIBERTY_HOME\wlp\usr\servers\server_name\apps\applicationcenter.war


5. Copy the password decoder user feature.

   • On UNIX and Linux systems:

     mkdir -p LIBERTY_HOME/wlp/usr/extension/lib/features
     cp  pmf_install_dir/features/com.ibm.websphere.crypto_1.0.0.jar LIBERTY_HOME/wlp/usr/extension/lib/
     cp  pmf_install_dir/features/MFPDecoderFeature-1.0.mf LIBERTY_HOME/wlp/usr/extension/lib/features/


   • On Windows systems:

     mkdir LIBERTY_HOME\wlp\usr\extension\lib
     copy /B  pmf_install_dir\features\com.ibm.websphere.crypto_1.0.0.jar
     LIBERTY_HOME\wlp\usr\extension\lib\com.ibm.websphere.crypto_1.0.0.jar
     mkdir LIBERTY_HOME\wlp\usr\extension\lib\features
     copy /B  pmf_install_dir\features\MFPDecoderFeature-1.0.mf
     LIBERTY_HOME\wlp\usr\extension\lib\features\MFPDecoderFeature-1.0.mf


6. Start the Liberty server.

Deploying the PMF Application Center EAR file and configuring the application server manually

As an alternative to the PMF installer procedure, you can use a manual procedure to deploy the PMF Application Center EAR file and configure your WebSphere application server manually. These manual instructions assume that you are familiar with your application server.

The procedure to deploy the PMF Application Center EAR file manually to an application server depends on the type of application server. Manual deployment is supported only for WebSphere Application Server Liberty profile.

For manual procedure, deploy the appcentercenter.ear file, which you can find in the pmf_install_dir/ApplicationCenter/console directory.

Configuring the Liberty profile for PMF Application Center manually

After you deploy the Application Center EAR file, to configure WebSphere Application Server Liberty profile manually for PMF Application Center, you must modify the server.xml file.

In addition to modifications for the databases that are described in Manually installing PMF Application Center, you must make the following modifications to the server.xml file.

1. Ensure that the <featureManager> element contains at least the following <feature> elements:

   <feature>jdbc-4.0</feature>
   <feature>appSecurity-2.0</feature>
   <feature>servlet-3.0</feature>
   <feature>usr:MFPDecoderFeature-1.0</feature>


2. Add the following declarations for PMF Application Center:

   <!-- The directory with binaries of the 'aapt' program, from the Android SDK's platform-tools package. -->
   <jndiEntry jndiName="android.aapt.dir" value="pmf_install_dir/ApplicationCenter/tools/android-sdk"/>

   <!-- Declare the PMF Application Center application. -->
   <application id="applicationcenter"
                 name="applicationcenter"
                 location="applicationcenter.ear"
                 type="ear">
      <application-bnd>
        <security-role name="appcenteradmin">
          <group name="appcentergroup"/>
        </security-role>
      </application-bnd>
      <classloader delegation="parentLast">
      </classloader>
   </application>

   <!-- Declare the user registry for the PMF Application Center. -->
   <basicRegistry id="applicationcenter-registry"
                   realm="ApplicationCenter">
      <!-- The users defined here are members of group "appcentergroup",
           thus have role "appcenteradmin", and can therefore perform
           administrative tasks through the Application Center Console. -->
      <user name="appcenteradmin" password="admin"/>
      <user name="demo" password="demo"/>
      <group name="appcentergroup">
        <member name="appcenteradmin"/>
        <member name="demo"/>
      </group>
   </basicRegistry>


   The groups and users that are defined in the basicRegistry element are example logins, which you can use to test Application Center. Similarly, the groups that are defined in the <security-role name="appcenteradmin"> element are examples. For more information about how to modify these groups, see Configuring the Java EE security roles on WebSphere Application Server Liberty profile.

3. If the database is Oracle, add the commonLibraryRef attribute to the class loader of the Application Center application.

   ...
   <classloader delegation="parentLast"  commonLibraryRef="OracleLib">
   ...


   The name of the library reference (OracleLib in this example) must be the ID of the library that contains the JDBC JAR file. This ID is declared in the procedure that is documented in Configuring Liberty profile for Oracle manually for PMF Application Center.

4. Copy the Application Center EAR files to your Liberty server.

   • On UNIX and Linux systems:

      mkdir -p LIBERTY_HOME/wlp/usr/servers/server_name/apps
      cp pmf_install_dir/ApplicationCenter/console/*.ear LIBERTY_HOME/wlp/usr/servers/server_name/apps/


   • On Windows systems:

      mkdir LIBERTY_HOME\wlp\usr\servers\server_name\apps
      copy /B pmf_install_dir\ApplicationCenter\console\applicationcenter.ear
      LIBERTY_HOME\wlp\usr\servers\server_name\apps\applicationcenter.ear


5. Copy the password decoder user feature.

   • On UNIX and Linux systems:

     mkdir -p LIBERTY_HOME/wlp/usr/extension/lib/features
     cp pmf_install_dir/features/com.ibm.websphere.crypto_1.0.0.jar LIBERTY_HOME/wlp/usr/extension/lib/
     cp pmf_install_dir/features/MFPDecoderFeature-1.0.mf LIBERTY_HOME/wlp/usr/extension/lib/features/


   • On Windows systems:

     mkdir LIBERTY_HOME\wlp\usr\extension\lib
     copy /B pmf_install_dir\features\com.ibm.websphere.crypto_1.0.0.jar
     LIBERTY_HOME\wlp\usr\extension\lib\com.ibm.websphere.crypto_1.0.0.jar
     mkdir LIBERTY_HOME\wlp\usr\extension\lib\features
     copy /B pmf_install_dir\features\MFPDecoderFeature-1.0.mf
     LIBERTY_HOME\wlp\usr\extension\lib\features\MFPDecoderFeature-1.0.mf


6. Start the Liberty server.

Configuring Application Center after installation

After you install Application Center in the web application server that you designated, you have additional configuration to do.

Jump to

• Configuring user authentication for Application Center
• Managing users with LDAP
• Managing the DB2 transaction log size
• Defining the endpoint of the application resources
• Configuring Secure Sockets Layer (SSL)
• JNDI properties for Application Center
• Configuring WebSphere Application Server to support applications in public app stores
• Configuring WebSphere Application Server Liberty Application feature for standalone AppCenter installation

Configuring user authentication for Application Center

You configure user authentication and choose an authentication method. The configuration procedure depends on the web application server that you use. Application Center requires user authentication.

You must perform some configuration after the installer deploys Application Center web applications in the web application server. Application Center has two Java™ Platform, Enterprise Edition (Java EE) security roles defined:

• The appcenteruser role that represents an ordinary user of Application Center who can install mobile applications from the catalog to a mobile device belonging to that user.
• The appcenteradmin role that represents a user who can perform administrative tasks through the Application Center console.

You must map the roles to the corresponding sets of users.

If you choose to use an authentication method through a user repository such as LDAP, you can configure Application Center so that you can use users and groups with the user repository to define the Access Control List (ACL) of Application Center. This procedure is conditioned by the type and version of the web application server that you use. See Managing users with LDAP for information about LDAP used with Application Center.

After you configure authentication of the users of Application Center, which includes configuring LDAP if you plan to use it, you can, if necessary, define the endpoint of the application resources. You must then build the Application Center mobile client. The mobile client is used to install applications on mobile devices. See Preparations for using the mobile client for how to build the Application Center mobile client.

Jump to

• Configuring the Java EE security roles on WebSphere Application Server Liberty profile

Configuring the Java EE security roles on WebSphere Application Server Liberty profile

Configure the Java™ EE security roles of the Application Center and the data source in the server.xml file.

To configure the security roles, you must edit the server.xml file. In the <application-bnd> element of each <application> element, create two <security-role> elements. One <security-role> element is for the appcenteruser role and the other is for the appcenteradmin role. Map the roles to the appropriate user group name appcenterusergroup or appcenteradmingroup. These groups are defined through the <basicRegistry> element. You can customize this element or replace it entirely with an <ldapRegistry> element or a <safRegistry> element.

Then, to maintain good response times with a large number of installed applications, for example with 80 applications, you should configure a connection pool for the Application Center database.

1. Edit the server.xml file. For example:

   <security-role name="appcenteradmin">
      <group name="appcenteradmingroup"/>
   </security-role>
   <security-role name="appcenteruser">
      <group name="appcenterusergroup"/>
   </security-role>


   You must include this example in the following location:

   • If you deployed WAR files, in the <application-bnd> element of each <application> element: the appcenterconsole and applicationcenter applications.
   • If you deployed an EAR file, in the <application-bnd> element of the applicationcenter application.

   Replace the <security-role> elements that have been created during installation for test purposes.

   <basicRegistry id="appcenter">
      <user name="admin" password="admin"/>
      <user name="guest" password="guest"/>
      <user name="demo" password="demo"/>
      <group name="appcenterusergroup">
        <member name="guest"/>
        <member name="demo"/>
      </group>
      <group name="appcenteradmingroup">
        <member name="admin" id="admin"/>
      </group>
   </basicRegistry>


   This example shows a definition of users and groups in the basicRegistry of WebSphere Application Server Liberty. For more information about configuring a user registry for WebSphere Application Server Liberty profile, see Configuring a user registry for the Liberty profile.

2. Edit the server.xml file to define the AppCenterPool size.

   <connectionManager id="AppCenterPool" minPoolSize="10" maxPoolSize="40"/>


3. In the <dataSource> element, define a reference to the connection manager:

   <dataSource id="APPCNTR" jndiName="jdbc/AppCenterDS" connectionManagerRef="AppCenterPool">
   ...
   </dataSource>


Managing users with LDAP

Use the Lightweight Directory Access Protocol (LDAP) registry to manage users.

LDAP is a way to centralize the user management for multiple web applications in an LDAP Server that maintains a user registry. It can be used instead of specifying one by one the users for the security roles appcenteradmin and appcenteruser.

If you plan to use an LDAP registry with the Application Center, you must configure your WebSphere Application Server to use an LDAP registry to authenticate users.

In addition to authentication of users, configuring the Application Center for LDAP also enables you to use LDAP to define the users and groups who can install mobile applications through the Application Center. The means of defining these users and groups is the Access Control List (ACL).

Jump to

• LDAP with WebSphere Application Server V8.x
• LDAP with Liberty profile

LDAP with WebSphere Application Server V8.x

LDAP authentication is based on the federated repository configuration. ACL management configuration of the Application Center uses the Virtual Member Manager API.

You must configure LDAP based on the federated repository configuration. The stand-alone LDAP registry is not supported.

Several different repositories, LDAP and non-LDAP, can be configured in the federated repository.

For information about configuring federated repositories, see the WebSphere Application Server V8.0 user documentation or the WebSphere Application Server V8.5 user documentation, depending on your version.

Configuration of the Application Center for ACL management with LDAP

Some configuration details of ACL management are specific to the Application Center, because it uses the Virtual Member Manager (VMM) API.

The Application Center refers to these VMM attributes for users:

• uid represents the user login name.
• sn represents the full name of the user.
• For groups, the Application Center refers only to the VMM attribute cn.

LDAP with Liberty profile

Use LDAP to authenticate users and to define the users and groups who can install mobile applications with the Application Center by using the JNDI environment.

Using LDAP with Liberty profile requires you to configure LDAP authentication and LDAP ACL management.

• Configuring LDAP authentication for the Liberty profile
• Configuring LDAP ACL management (Liberty profile)

Configuring LDAP authentication for the Liberty profile

You can configure LDAP authentication of users and groups in the server.xml file by defining an LDAP registry or, since WebSphere Application Server Liberty profile V8.5.5, a federated registry that uses several LDAP registries. Then, you map users and groups to Application Center roles. The mapping configuration is the same for LDAP authentication and basic authentication.

1. To open the server.xml descriptor file, enter {server.config.dir}/server.xml

2. Insert one or several LDAP registry definitions after the <httpEndpoint> element. Example for the LDAP registry:

   <ldapRegistry baseDN="o=ibm.com" host="employees.com" id="Employees"
                  ldapType="IBM Tivoli Directory Server" port="389" realm="AppCenterLdap"
                  recursiveSearch="true">
      <idsFilters
          groupFilter="(&amp;(cn=%v)(|(objectclass=groupOfNames)(objectclass=groupOfUniqueNames))) " id="Employees"
          userFilter="(&amp;(emailAddress=%v)(objectclass=ibmPerson))"
          groupMemberIdMap="ibm-allGroups:member;ibm-allGroups:uniqueMember"
          userIdMap="*:emailAddress"/>
   </ldapRegistry>


   For information about the parameters that are used in this example, see the WebSphere Application Server V8.5 user documentation.

3. Insert a security role definition after each Application Center application definition.

   • If you deployed WAR files: applicationcenter and appcenterconsole
   • If you deployed an EAR file: applicationcenter

   Group names unique within LDAP
   This sample code shows how to use the group names ldapGroupForAppcenteruser and ldapGroupForAppcenteradmin when they exist and are unique within LDAP.

   <application-bnd>
         <security-role name="appcenteruser" id="appcenteruser">
           <group name="ldapGroupForAppcenteruser" />
         </security-role>
         <security-role name="appcenteradmin" id="appcenteradmin">
           <group name="ldapGroupForAppcenteradmin" />
         </security-role>
   </application-bnd>


   Group names not unique within LDAP
   This sample code shows how to code the mapping when the group names are not unique within LDAP. The groups must be specified with the access-id attribute. The access-id attribute must refer to the realm name that is used to specify the LDAP realm. In this sample code, the realm name is AppCenterLdap. The remainder of the access-id attribute specifies one of the LDAP groups named ldapGroup in a way that makes it unique.

   <application-bnd>
         <security-role name="appcenteruser" id="appcenteruser">
           <group name="ldapGroup"
                  id="ldapGroup"
                  access-id="group:AppCenterLdap/CN=ldapGroup,OU=myorg,
                             DC=mydomain,DC=AD,DC=myco,DC=com"/>
         </security-role>
         ...
   </application-bnd>


   If applicable, use similar code to map the appcenteradmin role.

Configuring LDAP ACL management (Liberty profile)

You enable ACL management after you configure LDAP and map users and groups to Application Center roles. Only the simple type of LDAP authentication is supported.

To be able to define JNDI entries, the following feature must be defined in the server.xml file:

<feature>jndi-1.0</feature>

Add an entry for each property in the <server> section of the server.xml file. This entry should have the following syntax:

<jndiEntry jndiName="JNDI_property_name" value="property_value"/>

Where:

• JNDI_property_name is the name of the property you are adding.
• property_value is the value of the property you are adding.

See JNDI properties for Application Center for a complete list of LDAP properties that you can set.

Example of setting properties for ACL management with LDAP
This example shows the settings of the properties in the server.xml file required for ACL management with LDAP.

<jndiEntry jndiName="ibm.appcenter.ldap.active" value="true"/>
<jndiEntry jndiName="ibm.appcenter.ldap.connectionURL" value="ldap://employees.com:636"/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.loginName" value="uid"/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.base" value="dc=ibm,dc=com"/>
<jndiEntry jndiName="ibm.appcenter.ldap.group.base" value="dc=ibm,dc=com"/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.displayName" value="sn"/>
<jndiEntry jndiName="ibm.appcenter.ldap.group.name" value="cn"/>
<jndiEntry jndiName="ibm.appcenter.ldap.group.uniquemember" value="uniqueMember"/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.groupmembership" value="ibm-allGroups"/>
<jndiEntry jndiName="ibm.appcenter.ldap.cache.expiration.seconds" value="43200"/>
<jndiEntry jndiName="ibm.appcenter.ldap.security.sasl" value='"EXTERNAL"'/>
<jndiEntry jndiName="ibm.appcenter.ldap.referral" value='"follow"'/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.filter" value='"(&amp;(uid=%v)(objectclass=inetOrgPerson))"'/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.displayName.filter" value='"(&amp;(cn=%v)(objectclass=inetOrgPerson))"'/>
<jndiEntry jndiName="ibm.appcenter.ldap.group.filter" value='"(&amp;(cn=%v)(|(objectclass=groupOfNames)(objectclass=groupOfUniqueNames)))"'/>

Managing and installing self-signed CA certificates in an PMF Application Center test environment

Use self-signed certificate authority (CA) certificates in test environments to install applications with Application Center on a mobile device from a secured server.

Uploading or deleting a certificate
When you install the Application Center mobile client from OTA (the bootstrap page), the device user must upload and install the self-signed CA file before the Application Center mobile client is installed.

When you use Application Center for a test installation, the administrator might not have a real Secure Sockets Layer (SSL) certificate available. You might want to use a self-signed CA certificate. Such certificates work if they get installed on the device as root certificate. As an administrator, you can easily distribute self-signed CA certificates to devices.

The following procedure focuses mostly on the iOS and Android environments. Support for X.509 certificates comes from the individual mobile platforms, not from the Persistent Mobile Foundation. For more information about specific requirements for X.509 certificates, see the documentation of each mobile platform.

Managing self-signed certificates: in your role of administrator of Application Center, you can access the list of registered self-signed CA certificates to upload or delete certificates.

1. To display Application Center settings, click the gear icon Icon to access Application Center settings.
2. To display the list of registered certificates, select Self Signed Certificates.
3. Upload or delete a certificate.
   • To upload a self-signed CA certificate, in the Application Center console, click Upload a certificate and select a certificate file.

   Note: The certificate file must be in PEM file format. Typical file name suffixes for this type of file are .pem, .key, .cer, .cert. The certificate must be a self-signed one, that is, the values of the Issuer and Subject fields must be the same. And the certificate must be a CA certificate, that is, it must have the X509 extension named BasicConstraint set to CA:TRUE.

• To delete a certificate, click the trash can icon on the right of the certificate file name in the list.

Installing a self-signed CA certificate on a device
Registered self-signed CA certificates are available through the bootstrap page at http://hostname:portnumber/appcenterconsole/installers.html.

Where:

• hostname is the name of the server that hosts the Application Center console.
• portnumber is the corresponding port number.

1. Click the SSL Certificates tab.
2. To display the details of a certificate, select the appropriate registered certificate.
3. To download and install the certificate on the device, click Install.

JNDI properties for Application Center

You can configure some JNDI properties for Application Center.

Configuring WebSphere Application Server to support applications in public app stores

Configure WebSphere Application Liberty profile before access to public app stores through application links, because of the use of SSL connections.

The constraint imposed by the use of SSL connections requires the root certificates of public app stores to exist in the WebSphere truststore before you can use application links to access these public stores. The configuration requirement applies to WebSphere Application Server Liberty profile.

The root certificate of Google play must be imported into the WebSphere truststore before you can use application links to Google play.
The root certificate of Apple iTunes must be imported into the WebSphere truststore before you can use application links to iTunes.

Jump to

• Configuring Liberty profile when IBM JDK is used

Configuring Liberty profile when IBM JDK is used

Configure Liberty profile to use default JSSE socket factories instead of SSL socket factories of WebSphere Application Server when IBM JDK is used.

The purpose is to configure the IBM JDK SSL factories to be compatible with Liberty profile. This configuration is required only when IBM JDK is used. The configuration does not apply for use of Oracle JDK. By default, IBM JDK uses the SSL socket factories of WebSphere Application Server. These factories are not supported by Liberty profile.

Exception when WebSphere Application Server SSL socket factories are used

If you use the IBM JDK of WebSphere Application Server, this exception could occur because this JDK uses SSL socket factories that are not supported by the Liberty profile. In this case, follow the requirements documented in Troubleshooting tips.

java.net.SocketException: java.lang.ClassNotFoundException: Cannot find the specified class com.ibm.websphere.ssl.protocol.SSLSocketFactory
      at javax.net.ssl.DefaultSSLSocketFactory.a(SSLSocketFactory.java:11)
      at javax.net.ssl.DefaultSSLSocketFactory.createSocket(SSLSocketFactory.java:6)
      at com.ibm.net.ssl.www2.protocol.https.c.afterConnect(c.java:161)
      at com.ibm.net.ssl.www2.protocol.https.d.connect(d.java:36)
      at sun.net.www.protocol.http.HttpURLConnection.getInputStream(HttpURLConnection.java:1184)
      at java.net.HttpURLConnection.getResponseCode(HttpURLConnection.java:390)
      at com.ibm.net.ssl.www2.protocol.https.b.getResponseCode(b.java:75)
      at com.ibm.ws.jmx.connector.client.rest.internal.RESTMBeanServerConnection.loadJMXServerInfo(RESTMBeanServerConnection.java:142)
      at com.ibm.ws.jmx.connector.client.rest.internal.RESTMBeanServerConnection.<init>(RESTMBeanServerConnection.java:114)
      at com.ibm.ws.jmx.connector.client.rest.internal.Connector.connect(Connector.java:315)
      at com.ibm.ws.jmx.connector.client.rest.internal.Connector.connect(Connector.java:103)

Configuring WebSphere Application Server Liberty Application feature for standalone AppCenter installation

For standalone AppCenter installation, you need to perform following additional configuriation before you start the WebSphere Application Server.

Add the following WebSphereApplication Server Liberty feature in the server.xml file after the AppCenter installation.

   <feature>restConnector-1.0</feature>

This needs to be implemented for both of the following Appcenter migration scenarios.

• IBM MobileFirst Platform Foundation Version 8.0 to the Persistent Mobile Foundation Version 10.0

• The Persistent Mobile Foundation Version 9.0 to the Persistent Mobile Foundation Version 10.0

Note: If you first install PMF Operations console and then install Appcenter, the PMF Operations console automatically adds the restConnector-1.0 feature in the server.xml file.
