Installing Persistent Mobile Foundation Server from command line using ANT script

Overview

You can use Ant script tasks to do a simple Persistent Mobile Foundation Server installation.

Before you begin

• Make sure that one of the following databases and a supported Java version are installed. You also need the corresponding JDBC driver for the database to be available on your computer:
  • Database Management System (DBMS) from the list of supported databases:
    • DB2
    • MySQL
    • Oracle

    Important: You must have a database where you can create the tables that are needed by the product, and a database user who can create tables in that database.

    In the tutorial, the steps to create the tables are for DB2.

• JDBC driver for your database.
  • For DB2, use the DB2 JDBC driver type 4.
  • For MySQL, use the Connector/J JDBC driver.
  • For Oracle, use the Oracle thin JDBC driver.

• Java 8

• You must also have the installation repository of the PMF and the installer of WebSphere Application Server Liberty Core V8.5.5.3 or later.

WebSphere Application Server Liberty profile

IBM WebSphere Application Server - Liberty Core V8.5.5.3 or later

Jump to

• Installing WebSphere Application Server Liberty Core
• Creating a database
• Deploying PMF to Liberty with Ant tasks
• Testing the installation
• Creating a farm of two Liberty servers that run PMF
• Testing the farm and see the changes in PMF Operations Console

Installing WebSphere Application Server Liberty Core

In this task, Liberty profile is installed and a server instance is created so that you can install Persistent Mobile Foundation Server on it.

1. Review the license agreement for WebSphere Application Server Liberty Core.

2. Extract the compressed file of WebSphere Application Server Liberty Core Installer to a folder.

   In the steps that follow, the directory where you extract the installer is referred as liberty_repository_dir.

3. Decide a directory where Liberty profile is to be installed. It is referred as liberty_install_dir in the next steps.
4. Start a command line and go to liberty_install_dir

5. If you accept the license agreement after the review, install Liberty.

   Enter the command: imcl install com.ibm.websphere.liberty.v85 -repositories liberty_repository_dir -installationDirectory liberty_install_dir -acceptLicense

   This command installs Liberty in the liberty_install_dir directory. The -acceptLicense option means that you accept the license terms for the product.

6. Move the directory that contains the servers in a location that does not need specific privileges.

   For the scope of this tutorial, if liberty_install_dir points to a location where non-administrator or non-root users cannot modify the files, move the directory that contains the servers to a location that does not need specific privileges. In this way, the installation operations can be done without specific privileges.

   • Go to the installation directory of Liberty.
   • Create a directory named etc. You need administrator or root privileges.
   • In the etc directory, create a server.env file with the following content: WLP_USER_DIR=<path to a directory where any user can write>. For example, on Windows: WLP_USER_DIR=C:\LibertyServers\usr.
7. Create a Liberty server that will be used to install the first node of PMF at the later part of the tutorial.
   • Start a command line.
   • Go to liberty_install_dir/bin, and enter server create pmf1.

   This command creates a Liberty server instance named pmf1. You can see its definition at liberty_install_dir/usr/servers/pmf1 or WLP_USER_DIR/servers/pmf1.

After the server is created, you can start this server with server start pmf1 from liberty_install_dir/bin/.
To stop the server, enter the command: server stop pmf1 from liberty_install_dir/bin/.

The default home page can be viewed at http://localhost:9080.

Note: For production, you need to make sure that the Liberty server is started as a service when the host computer starts. Making the Liberty server start as a service is not part of this tutorial.

Creating a database

This task is to ensure that a database exists in your DBMS, and that a user is allowed to use the database, create tables in it, and use the tables. You can skip this task if you plan to use Derby database.

The database is used to store the technical data that is used by the various PMF components:

• PMF administration service
• PMF live update service
• PMF push service
• PMF runtime

In this tutorial, the tables for all the components are placed under the same schema.
Note: The steps in this task are for DB2. If you plan to use MySQL or Oracle, see Database requirements.

1. Log on to the computer that is running the DB2 server. It is assumed that a DB2 user, for example named as mfpuser, exists.

2. Verify that this DB2 user has the access to a database with a page size 32768 or more, and is allowed to create implicit schemas and tables in that database.

   By default, this user is a user declared on the operating system of the computer that runs DB2. That is, a user with a login for that computer. If such user exists, the next action in step 3 is not needed.

3. Create a database with the correct page size for this installation if you do not have one.
   • Open a session with a user that has SYSADM or SYSCTRL permissions. For example, use the user db2inst1 that is the default admin user that is created by the DB2 installer.
   • Open a DB2 command line processor:
     • On Windows systems, click Start → IBM DB2 → Command Line Processor.
     • On Linux or UNIX systems, go to ~/sqllib/bin (or db2_install_dir/bin if sqllib is not created in the administrator’s home directory) and enter ./db2.

   • Enter the following SQL statements to create a database that is called MFPDATA:

       CREATE DATABASE MFPDATA COLLATE USING SYSTEM PAGESIZE 32768
       CONNECT TO MFPDATA
       GRANT CONNECT ON DATABASE TO USER mfpuser
       GRANT CREATETAB ON DATABASE TO USER mfpuser
       GRANT IMPLICIT_SCHEMA ON DATABASE TO USER mfpuser
       DISCONNECT MFPDATA
       QUIT


   If you defined a different user name, replace mfpuser with your own user name.

   Note: The statement does not remove the default privileges granted to PUBLIC in a default DB2 database. For production, you might need to reduce the privileges in that database to the minimum requirement for the product.

Deploying PMF to Liberty with Ant tasks

You use the Ant tasks to run the following operations:

• Create the tables in the database that are needed by the PMF applications
• Deploy the web applications of PMF (the runtime, administration service, live update service, push service components, and PMF Operations Console) to Liberty server.

The following PMF applications can also be deployed by Ant tasks:

Persistent Mobile Foundation Analytics

Persistent Mobile Foundation Analytics is typically deployed on a different set of servers than PMF because of its high memory requirements. Persistent Mobile Foundation Analytics can be installed with Ant tasks.

Persistent Mobile Foundation Analytics Receiver

Persistent Mobile Foundation Analytics Receiver is typically deployed on a different set of servers than PMF and Persistent Mobile Foundation Analytics because of its high memory requirements. Persistent Mobile Foundation Analytics Receiver can be installed with Ant tasks.

PMF Application Center

This application can be used to distribute mobile apps internally to the employees that use the apps, or for test purpose. It is independent of PMF and is not necessary to install together with PMF.

Pick the appropriate XML file that contains the Ant tasks and configure the properties.

• Make a copy of the  pmf_install_dir/MobileFoundationServer/configuration-samples/configure-liberty-db2.xml file to a working directory. This file contains the Ant tasks for installing PMF on Liberty with DB2 as the database. Before you use it, define the properties to describe where the applications of PMF are to be deployed.
• Edit the copy of the XML file and set the values of the following properties:
  • mfp.admin.contextroot to /mfpadmin
  • mfp.runtime.contextroot to /mfp
  • database.db2.host to the value to the host name of the computer that runs your DB2 database. If the database is on the same computer as Liberty, use localhost.
  • database.db2.port to the port to which the DB2 instance is listening. By default, it is 50000.
  • database.db2.driver.dir to the directory that contains your DB2 driver: db2jcc4.jar and db2jcc_license_cu.jar. In a standard DB2 distribution, these files are found in db2_install_dir/java.
  • database.db2.mfp.dbname to MFPDATA - the database name that you create in Creating a database.
  • database.db2.mfp.schema to MFPDATA - the value of the schema where the tables for PMF are to be created. If your DB user is not able to create a schema, set the value to an empty string. For example, database.db2.mfp.schema=”“.
  • database.db2.mfp.username to the DB2 user that creates the tables. This user also uses the tables at run time. For this tutorial, use mfpuser.
  • appserver.was.installdir to the Liberty installation directory.
  • appserver.was85liberty.serverInstance to pmf1 - the value to the name of the Liberty server where PMF is to be installed.
  • mfp.farm.configure to false to install PMF in stand-alone mode.
  • mfp.analytics.configure to false. The connection to Persistent Mobile Foundation Analytics is not in the scope of this tutorial. You can ignore the other properties mfp.analytics.**.
  • mfp.analytics.receiver.configure to false. The connection to Persistent Mobile Foundation Analytics Receiver is not in the scope of this tutorial. You can ignore the other properties mfp.analytics.receiver.**.
  • mfp.admin.client.id to admin-client-id.
  • mfp.admin.client.secret to adminSecret (or choose another secret password).
  • mfp.push.client.id to push-client-id.
  • mfp.push.client.secret to pushSecret (or choose another secret password).
  • mfp.config.admin.user to the user name of the PMF live update service. In a server farm topology, the user name must be the same for all the members of the farm.
  • mfp.config.admin.password to the password of the PMF live update service. In a server farm topology, the password must be the same for all the members of the farm.
• Keep the default values of the following properties as-is:
  • mfp.admin.console.install to true
  • mfp.admin.default.user to admin - the name of a default user that is created to log in to PMF Operations Console.
  • mfp.admin.default.user.initialpassword to admin - the password of a default user that is created to log in to the admin console.
  • appserver.was.profile to Liberty. If the value is different, the Ant task assumes that the installation is on a WebSphere Application Server server.
• Save the file after the properties are defined.
• Run  pmf_install_dir/tools/apache-ant-1.9.4/bin/ant -f configure-liberty-db2.xml to show a list of possible targets for the Ant file.
• Run  pmf_install_dir/tools/apache-ant-1.9.4/bin/ant -f configure-liberty-db2.xml databases to create the database tables.
• Run  pmf_install_dir/tools/apache-ant-1.9.4/bin/ant -f configure-liberty-db2.xml install to install PMF.

Note: If you do not have DB2, and want to test the installation with an embedded Derby as a database, use the  pmf_install_dir/MobileFoundationServer/configuration-samples/configure-liberty-derby.xml file. However, you cannot do the last step of this tutorial (Creating a farm of two Liberty servers that run PMF) because the Derby database cannot be accessed by multiple Liberty servers. You must set the properties except the DB2 related ones (database.db2, …). For Derby, set the value of the property database.derby.datadir to the directory where Derby database can be created. Also, set the value of the property database.derby.mfp.dbname to MFPDATA.

The following operations are run by the Ant tasks:

1. The tables for the following components are created in the database:
   • The administration service and the live update service. Created by the admdatabases Ant target.
   • The runtime component. Created by the rtmdatabases Ant target.
   • The push service. Created by the pushdatabases Ant target.
2. The WAR files of the various components are deployed to Liberty server. You can see the details of the operations in the log under adminstall, rtminstall, and pushinstall targets.

If you have access to the DB2 server, you can list the tables that are created by using these instructions:

1. Open a DB2 command line processor with mfpuser as described in step 3 of Creating a database.
2. Enter the SQL statements:

CONNECT TO MFPDATA USER mfpuser USING mfpuser_password
LIST TABLES FOR SCHEMA MFPDATA
DISCONNECT MFPDATA
QUIT

Take note of the following database factors:

Database user consideration

You can create one database user and this user is not only used to create the tables, but is also used as the data source user in the application server at run time. In production environment, you might want to restrict the privileges of the user that is used at run time to the strict minimum (SELECT / INSERT / DELETE / UPDATE), and thus provide a different user for deployment in the application server. The Ant files that are provided as examples also use the same users for both cases. However, in the case of DB2, you might want to create your own versions of files. As such, you can distinguish the user that is used to create the databases from the user that is used for the data source in the application server with the Ant tasks.

Database tables creation

For production, you might want to create the tables manually. For example, if your DBA wants to override some default settings or assign specific table spaces. The database scripts that are used to create the tables are available in pmf_install_dir/MobileFoundationServer//databases and pmf_install_dir/PushService/databases. For more information, see Creating the database tables manually.

The server.xml file and some application server setting are modified during the installation. Before each modification, a copy of the server.xml file is made, such as server.xml.bak, server.xml.bak1, and server.xml.bak2. To see everything that was added, you can compare the server.xml file with the oldest backup (server.xml.bak). On Linux, you can use the command diff --strip-trailing-cr server.xml server.xml.bak to see the differences. On AIX , use the command diff server.xml server.xml.bak to find the differences.

Modification of the application server settings (specific to Liberty):

1. The Liberty features are added.

   The features are added for each application and can be duplicated. For example, the JDBC feature is used for both the administration service and the runtime components. This duplication allows the removal of the features of an application when it is uninstalled without breaking the other applications. For example, if you decide at some point to uninstall the push service from a server and install it on another server. However, not all topologies are possible. The administration service, the live update service, and the runtime component must be on the same application server with Liberty profile. For more information, see Constraints on PMF administration service, PMF live update service and PMF runtime. The duplication of features does not create issue unless the features that added are conflicting. Adding the jdbc-40 and jdbc-41 features would cause a problem, but adding twice the same feature does not.

2. host='*' is added in the httpEndPoint declaration.

   This setting is to allow the connection to the server from all network interfaces. In production, you might want to restrict the host value of the HTTP endpoint.

3. The tcpOptions element (tcpOptions soReuseAddr=”true”) is added in the server configuration to enable immediate rebind to a port with no active listener and improve the throughput of the server.

4. A keystore with ID defaultKeyStore is created if it does not exist.

   The keystore is to enable the HTTPS port and more specifically, to enable the JMX communication between the administration service (mfp-admin-service.war) and the runtime component (mfp-server.war). The two applications communicate via JMX. In the case of Liberty profile, restConnector is used to communicate between the applications in a single server and also between the servers of a Liberty Farm. It requires the use of HTTPS. For the keystore that is created by default, Liberty profiles creates a certificate with a validity period of 365 days. This configuration is not intended for production use. For production, you need to reconsider to use your own certificate.

   To enable JMX, a user with administrator role (named as MfpRESTUser) is created in the basic registry. Its name and password are provided as JNDI properties (mfp.admin.jmx.user and mfp.admin.jmx.pwd) and are used by the runtime component and the administration service to run JMX queries. In the global JMX properties, some properties are used to define the cluster mode (stand-alone server or working in a farm). In the later part of this tutorial about the creation of a farm, the property is modified to Cluster.

5. The creation of users (Also valid for Apache Tomcat and WebSphere Application Server)
   • Optional Users: You can create a test user (admin/admin) so that you can use this user to log to the console after the installation.
   • Mandatory Users: You need to create a user (named as configUser_mfpadmin with a randomly generated password) to be used by the administration service to contact the local live update service. For Liberty server, MfpRESTUser can be created. If your application server is not configured to use a basic registry (for example, an LDAP registry), you can use Ant tasks.

6. The webContainer element is modified.

   The deferServletLoad web container custom property is set to false. Both the runtime component and the administration service must start when the server starts. These components can thus register the JMX beans and start the synchronization procedure that allows the runtime component to download all the applications and adapters that it needs to serve.

7. The default executor is customized to set large values to coreThreads and maxThreads if you use Liberty V8.5.5.5 or earlier. The default executor is automatically tuned by Liberty as of V8.5.5.6.

   This setting avoids timeout issues that break the startup sequence of the runtime component and administration service on some Liberty versions. The absence of this statement can be the cause of these errors in the server log file:

   Failed to obtain JMX connection to access an MBean. There might be a JMX configuration error: Read timed out FWLSE3000E: A server error was detected. FWLSE3012E: JMX configuration error. Unable to obtain MBeans. Reason: “Read timed out”.

Declaration of applications

The following applications are installed:

• mfpadmin, the administration service
• mfpadminconfig, the live update service
• mfpconsole, Operations console
• mfp, pmf runtime component
• imfpush, the push service

You can install all the applications on the same server or you can separate the applications in different application servers.

Administration service

The administration service is the service for managing PMF applications, adapters, and their configurations. It is secured by security roles. You can add a user (admin) with the administrator role, that you can use to log in to the console for testing. The configuration of the security role must be done after an installation. You might want to map the users or the groups that come from the basic registry or an LDAP registry that you configure in your application server to each security role.

The class loader is set with delegation parent last for Liberty profile and WebSphere Application Server, and for all PMF applications. This setting is to avoid conflicts between the classes packaged in the PMF applications and the classes of the application server. Forgetting to set the class loader delegation to parent last is a frequent source of error in manual installation. For Apache Tomcat, this declaration is not needed.

In Liberty profile, a common library is added to the application for decrypting passwords that are passed as JNDI properties. Two mandatory JNDI properties for the administration service: mfp.config.service.user and mfp.config.service.password should be defined. They are used by the administration service to connect to the live update service with its REST API. More JNDI properties can be defined to tune the application or adapt it to your installation particularities. For more information, see List of JNDI properties for PMF administration service. The JNDI properties (the URL and the OAuth parameters to register the confidential clients) for the communication with the push service should also be defined. The data source to the database that contains the tables for the administration service is declared, as well as a library for its JDBC driver.

Live update service

The live update service stores information about the runtime and application configurations. It is controlled by the administration service and must always run on the same server as the administration service. The context root is context_root_of_admin_serverconfig. As such, it is mfpadminconfig. The administration service assumes that this convention is respected to create the URL of its requests to the REST services of the live update service.

The class loader is set with delegation parent last as discussed in the administration service section.

The live update service has one security role, admin_config. A user must be mapped to that role. Its password and login must be provided to the administration service with the JNDI property: mfp.config.service.user and mfp.config.service.password. For information about the JNDI properties, see List of JNDI properties for PMF administration service and List of JNDI properties for PMF live update service.

It also needs a data source with JNDI name on Liberty profile. The convention is context_root_of_config_server/jdbc/ConfigDS. In this tutorial, it is defined as mfpadminconfig/jdbc/ConfigDS. In an installation done with Ant tasks, the tables of the live update service are in the same database and schema as the tables of the administration service. The user to access these tables is also the same.

Operations Console

PMF Operations Console is declared with the same security roles as the administration service. The users that are mapped to the security roles of PMF Operations Console must also be mapped to the same security role of the administration service. Indeed, PMF Operations Console runs queries to the administration service on the behalf of the console user.

One JNDI property, mfp.admin.endpoint, indicates how the console connects to the administration service. The default value can be set to *://*:*/mfpadmin. The setting means that it must use the same protocol, host name, and port as the incoming HTTP request to the console, and the context root of the administration service is /mfpadmin. If you want to force the request to go though a web proxy, change the default value. For more information about the possible values for this URL, or for information about other possible JNDI properties, see List of JNDI properties for PMF administration service.

The class loader is set with delegation parent last as discussed in the administration service section.

pmf runtime

This application is not secured by a security role. It is not required to log in with a user known by the Liberty server, to access this application. The mobile devices requests are routed to the runtime. They are authenticated by other mechanisms specific to the product (such as OAuth) and the configuration of the PMF applications.

The class loader is set with delegation parent last as discussed in the administration service section.

It also needs a data source with JNDI name on Liberty profile. The convention is context_root_of_runtime/jdbc/mfpDS. In this tutorial, it is defined as mobilefirst/jdbc/mfpDS. In an installation done with Ant tasks, the tables of the runtime are in the same database and schema as the tables of the administration service. The user to access these tables is also the same.

Push service

This application is secured by OAuth. The valid OAuth tokens must be included in any HTTP request to the service.

The configuration of OAuth is made through the JNDI properties (such as the URL of the authorization server, the client ID, and the password of the push service). The JNDI properties also indicate the security plug-in (mfp.push.services.ext.security) and the fact that a relational database is used (mfp.push.db.type). The requests from the mobile devices to the push service are routed to this service. The context root of the push service must be /imfpush. The client SDK computes the URL of the push service based on the URL of the runtime with the context root (/imfpush). If you want to install the push service on a different server than the runtime, you need to have an HTTP router that can route the device requests to the relevant application server.

The class loader is set with delegation parent last as discussed in the administration service section.

It also needs a data source with JNDI name on Liberty profile. The JNDI name is imfpush/jdbc/imfPushDS. In an installation with Ant tasks, the tables of the push service are in the same database and schema as the tables of the administration service. The user to access these tables is also the same.

Other files modification

The Liberty profile jvm.options file is modified. A property (com.ibm.ws.jmx.connector.client.rest.readTimeout) is defined to avoid timeout issues with JMX when the runtime synchronizes with the administration service.

Testing the installation

After the installation is complete, you can use this procedure to test the components that are installed.

1. Start the server by using the command server start pmf1. The binary file for the server is in liberty_install_dir/bin.

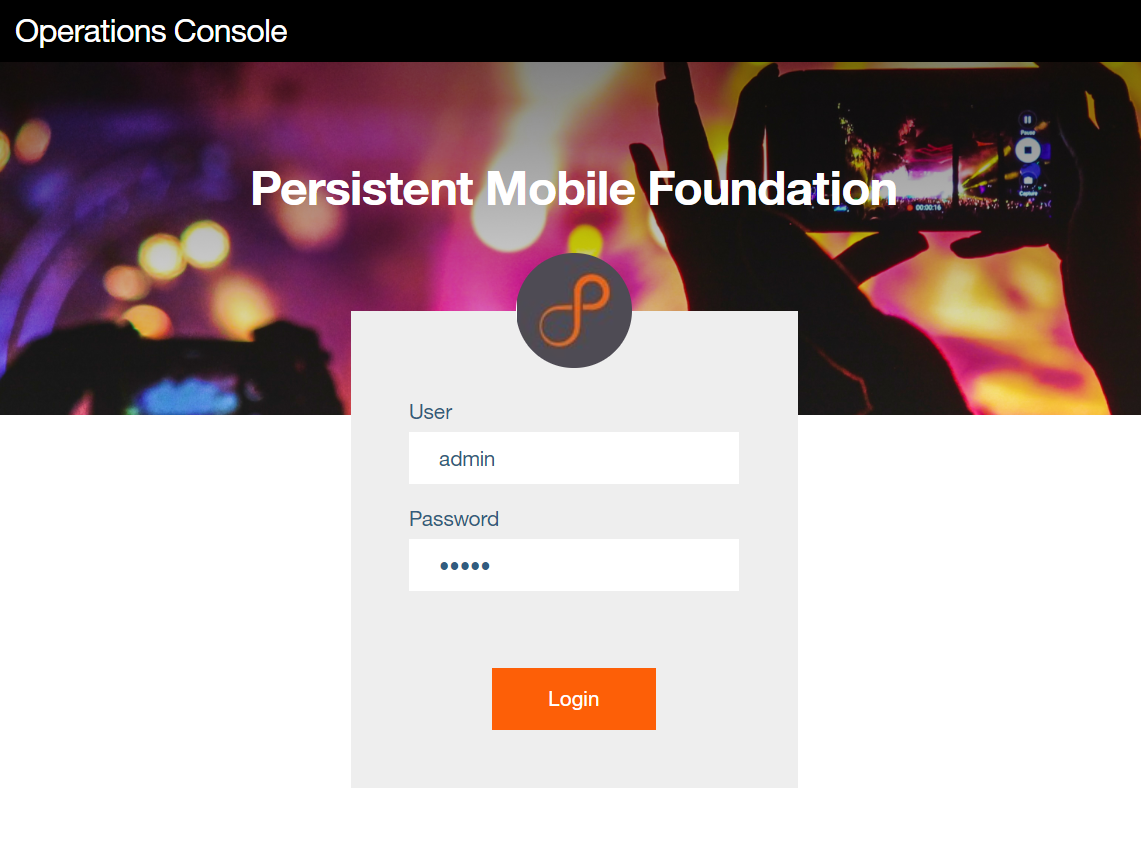

2. Test PMF Operations Console with a web browser. Go to http://localhost:9080/mfpconsole. By default, the server runs on port 9080. However, you can verify the port in the element <httpEndpoint> as defined in the server.xml file. A login screen is displayed.

1. Log in with admin/admin.

   Note: If you connect with HTTP, the login ID and password are sent in clear text in the network. For a secure login, use HTTPS to log to the server. You can see the HTTPS port of the Liberty server in the httpsPort attribute of the <httpEndpoint> element in the server.xml file. By default, the value is 9443.

2. Log out of the console with Hello Admin → Sign Out.
3. Enter the following URL: https://localhost:9443/mfpconsole in the web browser and accept the certificate. By default, the Liberty server generates a default certificate that is not known by your web browser, you need to accept the certificate. Mozilla Firefox presents this certification as a security exception.
4. Log in again with admin/admin. The login and password are encrypted between your web browser and PMF. In production, you might want to close the HTTP port.

Creating a farm of two Liberty servers that run PMF

In this task, you will create a second Liberty server that runs the same PMF and connected to the same database. In production, you might use more than one server for performance reasons, to have enough servers to serve the number of transactions per second that is needed for your mobile applications at peak time. It is also for high availability reasons to avoid having a single point of failure.

When you have more than one server that runs PMF, the servers must be configured as a farm. This configuration enables any administration service to contact all the runtimes of a farm. If the cluster is not configured as a farm, only the runtime that runs in the same application server as the management service that runs the management operation is notified. Others runtimes are not aware of the change. For example, you deploy a new version of an adapter in a cluster that is not configured as a farm, only one server would serve the new adapter. The other servers would continue to serve the old adapter. The only situation where you can have a cluster and do not need to configure a farm is when you install your servers on WebSphere Application Server Network Deployment. The administration service is able to find all the servers by querying the JMX beans with the deployment manager. The deployment manager must be running to allow management operations because it is used to provide the list of the PMF JMX beans of the cell.

When you create a farm, you also need to configure an HTTP server to send queries to all the members of the farm. The configuration of an HTTP server is not included in this tutorial. This tutorial is only about configuring the farm so that management operations are replicated to all the runtime components of the cluster.

1. Create a second Liberty server on the same computer.
   • Start a command line.
   • Go to liberty_install_dir/bin, and enter server create pmf2.
2. Modify the HTTP and HTTPS ports of the server pmf2 so that they do not conflict with the ports of server pmf1.

   • Go to the second server directory.

     The directory is liberty_install_dir/usr/servers/pmf2 or WLP_USER_DIR/servers/pmf2 (if you modify the directory as described in step 6 of Installing WebSphere Application Server Liberty Core).

   • Edit the server.xml file. Replace

     <httpEndpoint id="defaultHttpEndpoint"
       httpPort="9080"
       httpsPort="9443" />


     With:

     <httpEndpoint id="defaultHttpEndpoint"
       httpPort="9081"
       httpsPort="9444" />


     The HTTP and HTTPS ports of the server pmf2 do not conflict with the ports of the server pmf1 with this change. Make sure to modify the ports before you run the installation of PMF. Otherwise, if you modify the port after the installation is made, you also need to reflect the change of the port in the JNDI property: mfp.admin.jmx.port.

3. Copy the Ant file that you used in Deploying PMF to Liberty with Ant tasks, and change the value of the property appserver.was85liberty.serverInstance to pmf2. The Ant tasks detect that the databases exist and do not create the tables (see the following log extract). Then, the applications are deployed to the server.

   [configuredatabase] Checking connectivity to MobileFirstAdmin database MFPDATA with schema 'MFPDATA' and user 'mfpuser'...
   [configuredatabase] Database MFPDATA exists.
   [configuredatabase] Connection to MobileFirstAdmin database MFPDATA with schema 'MFPDATA' and user 'mfpuser' succeeded.
   [configuredatabase] Getting the version of MobileFirstAdmin database MFPDATA...
   [configuredatabase] Table MFPADMIN_VERSION exists, checking its value...
   [configuredatabase] GetSQLQueryResult => MFPADMIN_VERSION = 9.0.0
   [configuredatabase] Configuring MobileFirstAdmin database MFPDATA...
   [configuredatabase] The database is in latest version (9.0.0), no upgrade required.
   [configuredatabase] Configuration of MobileFirstAdmin database MFPDATA succeeded.


4. Test the two servers with HTTP connection.
   • Open a web browser.
   • Enter the following URL: http://localhost:9080/mfpconsole. The console is served by server pmf1.
   • Log in with admin/admin.
   • Open a tab in the same web browser and enter the URL: http://localhost:9081/mfpconsole. The console is served by server pmf2.
   • Log in with admin/admin. If the installation is done correctly, you can see the same welcome page in both tabs after login.

   • Return to first browser tab and click Hello, admin → Download Audit Log. You are logged out of the console and see the login screen again. This logout behavior is an issue. The problem happens because when you log on to server pmf2, a Lightweight Third Party Authentication (LTPA) token is created and stored in your browser as a cookie. However, this LTPA token is not recognized by server pmf1. Switching between servers is likely to happen in a production environment when you have an HTTP load balancer in front of the cluster. To resolve this issue, you must ensure that both servers (pmf1 and pmf2) generate the LTPA tokens with the same secret keys. Copy the LTPA keys from server pmf1 to server pmf2.

     • Stop both servers with these commands:

       server stop pmf1
       server stop pmf2


     • Copy the LTPA keys of server pmf1 to server pmf2. From liberty_install_dir/usr/servers or WLP_USER_DIR/servers, run the following command depending on your operating system.
       • On UNIX: cp pmf1/resources/security/ltpa.keys pmf2/resources/security/ltpa.keys
       • On Windows: copy pmf1/resources/security/ltpa.keys pmf2/resources/security/ltpa.keys
     • Restart the servers. Switch from one browser tab to another other does not require you to relogin. In a Liberty server farm, all servers must have the same LTPA keys.

5. Enable the JMX communication between the Liberty servers.

   The JMX communication with Liberty, is done via the Liberty REST connector over the HTTPS protocol. To enable this communication, each server of the farm must be able to recognize the SSL certificate of the other members. You need to exchange the HTTPS certificates in their truststores. Use IBM utilities such as Keytool, which is part of the IBM JRE distribution in java/bin to configure the truststore. The locations of the keystore and truststore are defined in the server.xml file. By default, the keystore of Liberty profile is at WLP_USER_DIR/servers/server_name/resources/security/key.jks. The password of this default keystore, as can be seen in the server.xml file, is mobilefirst.

   Tip: You can change it with the Keytool utility, but you must also change the password in the server.xml file so that Liberty server can read that keystore. In this tutorial, use the default password.

   • In WLP_USER_DIR/servers/pmf1/resources/security, enter keytool -list -keystore key.jks. The command shows the certificates in the keystore. There is only one named default. You are prompted for the password of the keystore (mobilefirst) before you can see the keys. This is the case for all the next commands with Keytool utility.
   • Export the default certificate of server pmf1 with the command: keytool -exportcert -keystore key.jks -alias default -file pmf1.cert.
   • In WLP_USER_DIR/servers/pmf2/resources/security, export the default certificate of server pmf2 with the command: keytool -exportcert -keystore key.jks -alias default -file pmf2.cert.
   • In the same directory, import the certificate of server pmf1 with the command: keytool -import -file ../../../pmf1/resources/security/pmf1.cert -keystore key.jks. The certificate of server pmf1 is imported into the keystore of server pmf2 so that server pmf2 can trust the HTTPS connections to server pmf1. You are asked to confirm that you trust the certificate.
   • In WLP_USER_DIR/servers/pmf1/resources/security, import the certificate of server pmf2 with the command: keytool -import -file ../../../pmf2/resources/security/pmf2.cert -keystore key.jks. After this step, the HTTPS connections between the two servers are possible.

Testing the farm and see the changes in PMF Operations Console

1. Start the two servers:

   server start pmf1
   server start pmf2


2. Access the console. For example, http://localhost:9080/mfpconsole, or https://localhost:9443/mfpconsole in HTTPS. In the left sidebar, an extra menu that is labeled as Server Farm Nodes appears. If you click Server Farm Nodes, you can the status of each node. You might need to wait a bit for both nodes to be started.
