Installing and configuring the Persistent Mobile Foundation Application Center

Overview

You install the Application Center as part of the PMF installation. You can install it with one of the following methods:

Installation with Ant tasks
Manual installation

Optionally, you can create the database of your choice before you install PMF with the Application Center.
After you installed the Application Center in the web application server of your choice, you have additional configuration to do. For more information, see Configuring Application Center after installation below. If you chose a manual setup in the installer, see the documentation of the server of your choice.

Note: If you intend to install applications on iOS devices through the Application Center, you must first configure the Application Center server with SSL.

Optional creation of databases

If you want to activate the option to install the Application Center when you run the PMF installer, you need to have certain database access rights that entitle you to create the tables that are required by the Application Center. The database needs to be created before you start the PMF installer.

The following topics describe the procedure for the supported database management systems.

Creating the DB2 database for PMF Application Center

During Persistent Mobile Foundation installation, the installer can create the Application Center database for you.

The installer can create the Application Center database for you if you enter the name and password of a user account on the database server that has the DB2 SYSADM or SYSCTRL privilege, and the account can be accessed through SSH. Otherwise, the database administrator can create the Application Center database for you. For more information, see the DB2 Solution user documentation.

When you manually create the database, you can replace the database name (here APPCNTR) and the password with a database name and password of your choosing.

Important: You can name your database and user differently, or set a different password, but ensure that you enter the appropriate database name, user name, and password correctly across the DB2 database setup. DB2 has a database name limit of 8 characters on all platforms, and has a user name and password length limit of 8 characters for UNIX and Linux systems, and 30 characters for Windows.

Create a system user, for example, named wluser in a DB2 admin group such as DB2USERS, using the appropriate commands for your operating system. Give it a password, for example, wluser. If you want multiple instances of PMF to connect to the same database, use a different user name for each connection. Each database user has a separate default schema. For more information about database users, see the DB2 documentation and the documentation for your operating system.
Open a DB2 command line processor, with a user that has SYSADM or SYSCTRL permissions:
- On Windows systems, click Start → IBM DB2 → Command Line Processor
- On Linux or UNIX systems, navigate to ~/sqllib/bin and enter ./db2.
- Enter database manager and SQL statements similar to the following example to create the Application Center database, replacing the user name wluser with your chosen user names:
```
CREATE DATABASE APPCNTR COLLATE USING SYSTEM PAGESIZE 32768
CONNECT TO APPCNTR
GRANT CONNECT ON DATABASE TO USER wluser
DISCONNECT APPCNTR
QUIT
```
The installer can create the database tables and objects for Application Center in a specific schema. This allows you to use the same database for PMF Application Center and for a PMF server project. If the IMPLICIT_SCHEMA authority is granted to the user created in step 1 (the default in the database creation script in step 2), no further action is required. If the user does not have the IMPLICIT_SCHEMA authority, you need to create a SCHEMA for the Application Center database tables and objects.

Creating the MySQL database for PMF Application Center

During the PMF installation, the installer can create the PMF Application Center database for you.

The installer can create the database for you if you enter the name and password of the superuser account. For more information, see Securing the Initial MySQL Accounts on your MySQL database server. Your database administrator can also create the databases for you. When you manually create the database, you can replace the database name (here APPCNTR) and password with a database name and password of your choosing. Note that MySQL database names are case-sensitive on UNIX.

Start the MySQL command-line tool.

Enter the following commands:

CREATE DATABASE APPCNTR CHARACTER SET utf8 COLLATE utf8_general_ci;
GRANT ALL PRIVILEGES ON APPCNTR.* TO 'PMF'@'PMF-host' IDENTIFIED BY 'password';
GRANT ALL PRIVILEGES ON APPCNTR.* TO 'PMF'@'localhost' IDENTIFIED BY 'password';
FLUSH PRIVILEGES;

Here, you need to replace PMF-host with the name of the host on which PMF runs.

Creating the Oracle database for PMF Application Center

During the installation, the installer can create the PMF Application Center database, except for the Oracle 12c database type, or the user and schema inside an existing database for you.

The installer can create the database, except for the Oracle 12c database type, or the user and schema inside an existing database if you enter the name and password of the Oracle administrator on the database server, and the account can be accessed through SSH. Otherwise, the database administrator can create the database or user and schema for you. When you manually create the database or user, you can use database names, user names, and a password of your choosing. Note that lowercase characters in Oracle user names can lead to trouble.

If you do not already have a database named ORCL, use the Oracle Database Configuration Assistant (DBCA) and follow the steps in the wizard to create a new general-purpose database named ORCL:
- Use global database name ORCL_your_domain, and system identifier (SID) ORCL.
- On the Custom Scripts tab of the step Database Content, do not run the SQL scripts, because you must first create a user account.
- On the Character Sets tab of the step Initialization Parameters, select Use Unicode (AL32UTF8) character set and UTF8 - Unicode 3.0 UTF-8 national character set.
- Complete the procedure, accepting the default values.
Create a database user either by using Oracle Database Control, or by using the Oracle SQLPlus command-line interpreter.
- Using Oracle Database Control:
  - Connect as SYSDBA.
  - Go to the Users page: click Server, then Users in the Security section.
  - Create a user, for example, named APPCENTER. If you want multiple instances of Persistent PMF to connect to the same general-purpose database you created in step 1, use a different user name for each connection. Each database user has a separate default schema.
  - Assign the following attributes:
    - Profile: DEFAULT
    - Authentication: password
    - Default tablespace: USERS
    - Temporary tablespace: TEMP
    - Status: Unlocked
    - Add system privilege: CREATE SESSION
    - Add system privilege: CREATE SEQUENCE
    - Add system privilege: CREATE TABLE
    - Add quota: Unlimited for tablespace USERS
- Using the Oracle SQLPlus command-line interpreter:
  The commands in the following example create a user named APPCENTER for the database:
```
  CONNECT SYSTEM/<SYSTEM_password>@ORCL
  CREATE USER APPCENTER IDENTIFIED BY password DEFAULT TABLESPACE USERS QUOTA UNLIMITED ON USERS;
  GRANT CREATE SESSION, CREATE SEQUENCE, CREATE TABLE TO APPCENTER;
  DISCONNECT;
```

Installing the Persistent Mobile Foundation Application Center with Ant tasks

Learn about the Ant tasks that you can use to install PMF Application Center.

Creating and configuring the database for PMF Application Center with Ant tasks

If you did not manually create the database, you can use Ant tasks to create and configure your database for PMF Application Center. If your database already exists, you can perform only the configuration steps with Ant tasks.

Before you begin, make sure that a database management system (DBMS) is installed and running on a database server, which can be on the same computer, or a different one.

The Ant tasks for PMF Application Center are in the ApplicationCenter/configuration-samples directory of the PMF distribution.

If you want to start the Ant task from a computer where PMF is not installed, you must copy the following files to that computer:

The library pmf_install_dir/MobileFoundationServer/mfp-ant-deployer.jar
The directory that contains binary files of the aapt program, from the Android SDK platform-tools package: pmf_install_dir/ApplicationCenter/tools/android-sdk
The Ant sample files that are in pmf_install_dir/ApplicationCenter/configuration-samples

Note: The pmf_install_dir placeholder represents the directory where you installed PMF.

If you did not create your database manually, as described in Optional creation of databases, follow steps 1 to 3 below. If your database already exists, you must create only the database tables. Follow steps 4 to 7 below.

Copy the sample Ant file that corresponds to your DBMS. The files for creating a database are named after the following pattern:
```
 create-appcenter-database-<dbms>.xml
```
Edit the Ant file, and replace the placeholder values with the properties at the beginning of the file.
Run the following commands to create the Application Center database:
```
 ant -f create-appcenter-database-<dbms>.xml databases
```
If the database already exists, then you must create only the database tables by completing the following steps:
Copy the sample Ant file that corresponds to both your application server, and your DBMS. The files for configuring an existing database are named after this pattern:
```
 configure-appcenter-<appServer>-<dbms>.xml
```
Edit the Ant file, and replace the placeholder values with the properties at the beginning of the file.

Run the following commands to configure the database:

 ant -f configure-appcenter-<appServer>-<dbms>.xml databases

Save the Ant file. You might need it later to apply a fix pack, or perform an upgrade.

If you do not want to save the passwords, you can replace them by “****” (12 stars) for interactive prompting.

Deploying the Application Center Console and Services with Ant tasks

Use Ant tasks to deploy the Application Center Console and Services to an application server, and configure data sources, properties, and database drivers that are used by Application Center.

Before you begin,

Complete the procedure at Creating and configuring the database for Application Center with Ant tasks.
You must run the Ant task on the computer where the application server is installed, or the Network Deployment Manager for WebSphere Application Server Network Deployment. If you want to start the Ant task from a computer where PMF is not installed, you must copy the following files and directories to that computer:
- The library pmf_install_dir/MobileFoundationServer/mfp-ant-deployer.jar
- The web applications (WAR and EAR files) in mf_server_install_dir/ApplicationCenter/console
- The directory that contains the binary files of the aapt program, from the Android SDK platform-tools package: pmf_install_dir/ApplicationCenter/tools/android-sdk
- The Ant sample files that are in pmf_install_dir/ApplicationCenter/configuration-samples

Note: The  pmf_install_dir placeholder represents the directory where you installed PMF.

Copy the Ant file that corresponds both to your application server, and your DBMS. The files for configuring Application Center are named after the following pattern:
```
 configure-appcenter-<appserver>-<dbms>.xml
```
Edit the Ant file, and replace the placeholder values with the properties at the beginning of the file.
Run the following command to deploy the Application Center Console and Services to an application server:
```
 ant -f configure-appcenter-<appserver>-<dbms>.xml install
```
Note: With these Ant files, you can also do the following actions:
- Uninstall Application Center, with the target uninstall.
- Update Application Center with the target minimal-update, to apply a fix pack.
Save the Ant file. You might need it later to apply a fix pack or perform an upgrade. If you do not want to save the passwords, you can replace them by “****” (12 stars) for interactive prompting.
If you installed on WebSphere Application Server Liberty profile, or Apache Tomcat, check that the aapt program is executable for all users. If needed, you must set the proper user rights. For example, on UNIX / Linux systems:
```
 chmod a+x  pmf_install_dir/ApplicationCenter/tools/android-sdk/*/aapt*
```

Manually installing Application Center

A reconfiguration is necessary for the PMF to use a database or schema that is different from the one that was specified during its installation. This reconfiguration depends on the type of database and on the kind of application server.

On application servers other than Apache Tomcat, you can deploy Application Center from two WAR files or one EAR file.

Configuring the DB2 database manually for Application Center
Configuring the Apache Derby database manually for Application Center
Configuring the MySQL database manually for Application Center
Configuring the Oracle database manually for Application Center
Deploying the Application Center WAR files and configuring the application server manually
Deploying the Application Center EAR file and configuring the application server manually

Configuring the DB2 database manually for Application Center

You configure the DB2 database manually by creating the database, creating the database tables, and then configuring the relevant application server to use this database setup.

Create the database. This step is described in Creating the DB2 database for Application Center.
Create the tables in the database. This step is described in Setting up your DB2 database manually for Application Center.
Perform the application server-specific setup as the following list shows.

Important: You can name your user differently, or set a different password, but ensure that you enter the appropriate user name and password correctly across the DB2 database setup. DB2 has a user name and password length limit of 8 characters for UNIX and Linux systems, and 30 characters for Windows.

Open a DB2 command line processor, with a user that has SYSADM or SYSCTRL permissions:
- On Windows systems, click Start → IBM DB2 → Command Line Processor.
- On Linux or UNIX systems, go to ~/sqllib/bin and enter ./db2.

Enter the following database manager and SQL statements to create a database that is called APPCNTR:

CREATE DATABASE APPCNTR COLLATE USING SYSTEM PAGESIZE 32768
CONNECT TO APPCNTR
GRANT CONNECT ON DATABASE TO USER PMF
QUIT

Run DB2 with the following commands to create the APPCNTR tables, in a schema named APPSCHM (the name of the schema can be changed). This command can be run on an existing database that has a page size compatible with the one defined in step 3.
```
db2 CONNECT TO APPCNTR
db2 SET CURRENT SCHEMA = 'APPSCHM'
db2 -vf  pmf_install_dir/ApplicationCenter/databases/create-appcenter-db2.sql -t
```

Configuring Liberty profile for DB2 manually for Application Center

You can set up and configure your DB2 database manually for Application Center with WebSphere Application Server Liberty profile.
Complete the DB2 Database Setup procedure before continuing.

Add the DB2 JDBC driver JAR file to $LIBERTY_HOME/wlp/usr/shared/resources/db2.

If that directory does not exist, create it. You can retrieve the file in one of two ways:
- Download it from DB2 JDBC Driver Versions.
- Fetch it from the db2_install_dir/java on the DB2 server directory.
Configure the data source in the $LIBERTY_HOME/wlp/usr/servers/PMFServer/server.xml file as follows:

In this path, you can replace PMFServer by the name of your server.
```
<library id="DB2Lib">
     <fileset dir="${shared.resource.dir}/db2" includes="*.jar"/>
</library>


<dataSource jndiName="jdbc/AppCenterDS" transactional="false">
   <jdbcDriver libraryRef="DB2Lib"/>
   <properties.db2.jcc databaseName="APPCNTR"  currentSchema="APPSCHM"
         serverName="db2server" portNumber="50000"
         user="PMF" password="PMF"/>
</dataSource>
```
The PMF placeholder after user= is the name of the system user with CONNECT access to the APPCNTR database that you have previously created.

The PMF placeholder after password= is this user’s password. If you have defined either a different user name, or a different password, or both, replace PMF accordingly. Also, replace db2server with the host name of your DB2 server (for example, localhost, if it is on the same computer).

DB2 has a user name and password length limit of 8 characters for UNIX and Linux systems, and 30 characters for Windows.
You can encrypt the database password with the securityUtility program in liberty_install_dir/bin.

Configuring WebSphere Application Server for DB2 manually for Application Center

You can set up and configure your DB2 database manually for Application Center with WebSphere Application Server.

Determine a suitable directory for the JDBC driver JAR file in the WebSphere Application Server installation directory.
- For a stand-alone server, you can use a directory such as was_install_dir/optionalLibraries/IBM/PMF/db2.
- For deployment to a WebSphere Application Server ND cell, use was_install_dir/profiles/profile-name/config/cells/cell-name/PMF/db2.
- For deployment to a WebSphere Application Server ND cluster, use was_install_dir/profiles/profile-name/config/cells/cell-name/clusters/cluster-name/PMF/db2.
- For deployment to a WebSphere Application Server ND node, use was_install_dir/profiles/profile-name/config/cells/cell-name/nodes/node-name/PMF/db2.
- For deployment to a WebSphere Application Server ND server, use was_install_dir/profiles/profile-name/config/cells/cell-name/nodes/node-name/servers/server-name/PMF/db2.
If this directory does not exist, create it.
Add the DB2 JDBC driver JAR file and its associated license files, if any, to the directory that you determined in step 1.
You can retrieve the driver file in one of two ways:
- Download it from DB2 JDBC Driver Versions.
- Fetch it from the db2_install_dir/java directory on the DB2 server.
In the WebSphere Application Server console, click Resources → JDBC → JDBC Providers.
- Select the appropriate scope from the Scope combination box.
- Click New.
- Set Database type to DB2.
- Set Provider type to DB2 Using IBM JCC Driver.
- Set Implementation Type to Connection pool data source.
- Set Name to DB2 Using IBM JCC Driver.
- Click Next.
- Set the class path to the set of JAR files in the directory that you determined in step 1, replacing was_install_dir/profiles/profile-name with the WebSphere Application Server variable reference ${USER_INSTALL_ROOT}.
- Do not set Native library path.
- Click Next.
- Click Finish.
- The JDBC provider is created.
- Click Save.
Create a data source for the Application Center database:
- Click Resources → JDBC → Data sources.
- Select the appropriate scope from the Scope combination box.
- Click New to create a data source.
- Set the Data source name to Application Center Database.
- Set JNDI Name to jdbc/AppCenterDS.
- Click Next.
- Enter properties for the data source, for example:
  - Driver type: 4
  - Database Name: APPCNTR
  - Server name: localhost
  - Port number: 50000 (default)
- Click Next.
- Create JAAS-J2C authentication data, specifying the DB2 user name and password as its properties. If necessary, go back to the data source creation wizard, by repeating steps 4.a to 4.h.
- Select the authentication alias that you created in the Component-managed authentication alias combination box (not in the Container-managed authentication alias combination box).
- Click Next and Finish.
- Click Save.
- In Resources → JDBC → Data sources, select the new data source.
- Click WebSphere Application Server data source properties.
- Select the Non-transactional data source check box.
- Click OK.
- Click Save.
- Click Custom properties for the data source, select the property currentSchema, and set the value to the schema used to create the Application Center tables (APPSCHM in this example).
Test the data source connection by selecting Data Source and clicking Test Connection.

Leave Use this data source in (CMP) selected.

Configuring Apache Tomcat for DB2 manually for Application Center

If you want to manually set up and configure your DB2 database for Application Center with Apache Tomcat server, use the following procedure.
Before you continue, complete the DB2 database setup procedure.

Add the DB2 JDBC driver JAR file.

You can retrieve this JAR file in one of the following ways:
- Download it from DB2 JDBC Driver Versions.
- Or fetch it from the directory db2_install_dir/java on the DB2 server) to $TOMCAT_HOME/lib.
Prepare an XML statement that defines the data source, as shown in the following code example.
```
<Resource auth="Container"
         driverClassName="com.ibm.db2.jcc.DB2Driver"
         name="jdbc/AppCenterDS"
         username="PMF"
         password="password"
         type="javax.sql.DataSource"
         url="jdbc:db2://server:50000/APPCNTR:currentSchema=APPSCHM;"/>
```
The PMF parameter after username= is the name of the system user with “CONNECT” access to the APPCNTR database that you have previously created. The password parameter after password= is this user’s password. If you have defined either a different user name, or a different password, or both, replace these entries accordingly.

DB2 enforces limits on the length of user names and passwords.
- For UNIX and Linux systems: 8 characters
- For Windows: 30 characters
Insert this statement in the server.xml file, as indicated in Configuring Apache Tomcat for Application Center manually.

Configuring the Apache Derby database manually for Application Center

You configure the Apache Derby database manually by creating the database and database tables, and then configuring the relevant application server to use this database setup.

Create the database and the tables within them. This step is described in Setting up your Apache Derby database manually for Application Center.
Configure the application server to use this database setup. Go to one of the following topics.

In the location where you want the database to be created, run ij.bat on Windows systems or ij.sh on UNIX and Linux systems.

Note: The ij program is part of Apache Derby. If you do not already have it installed, you can download it from Apache Derby: Downloads.

For supported versions of Apache Derby, see System requirements.
The script displays ij version number.

At the command prompt, enter the following commands:

connect 'jdbc:derby:APPCNTR;user=APPCENTER;create=true';
run '< pmf_install_dir>/ApplicationCenter/databases/create-appcenter-derby.sql';
quit;

Configuring Liberty profile for Derby manually for Application Center

If you want to manually set up and configure your Apache Derby database for Application Center with WebSphere Application Server Liberty profile, use the following procedure. Complete the Apache Derby database setup procedure before continuing.

Configure the data source in the $LIBERTY_HOME/usr/servers/PMFServer/server.xml file (PMFServer may be replaced in this path by the name of your server) as follows:

<!-- Declare the jar files for Derby access through JDBC. -->
<library id="derbyLib">
  <fileset dir="C:/Drivers/derby" includes="derby.jar" />
</library>

<!-- Declare the PMF Application Center database. -->
<dataSource jndiName="jdbc/AppCenterDS" transactional="false" statementCacheSize="10">
  <jdbcDriver libraryRef="derbyLib"
              javax.sql.ConnectionPoolDataSource="org.apache.derby.jdbc.EmbeddedConnectionPoolDataSource40"/>
  <properties.derby.embedded databaseName="DERBY_DATABASES_DIR/APPCNTR" user="APPCENTER"
                             shutdownDatabase="false" connectionAttributes="upgrade=true"/>
  <connectionManager connectionTimeout="180"
                     maxPoolSize="10" minPoolSize="1"
                     reapTime="180" maxIdleTime="1800"
                     agedTimeout="7200" purgePolicy="EntirePool"/>
</dataSource>

Configuring WebSphere Application Server for Derby manually for Application Center

You can set up and configure your Apache Derby database manually for Application Center with WebSphere Application Server. Complete the Apache Derby database setup procedure before continuing.

Determine a suitable directory for the JDBC driver JAR file in the WebSphere Application Server installation directory. If this directory does not exist, create it.
- For a standalone server, you can use a directory such as was_install_dir/optionalLibraries/IBM/PMF/derby.
- For deployment to a WebSphere Application Server ND cell, use was_install_dir/profiles/profile-name/config/cells/cell-name/PMF/derby.
- For deployment to a WebSphere Application Server ND cluster, use was_install_dir/profiles/profile-name/config/cells/cell-name/clusters/cluster-name/PMF/derby.
- For deployment to a WebSphere Application Server ND node, use was_install_dir/profiles/profile-name/config/cells/cell-name/nodes/node-name/PMF/derby.
- For deployment to a WebSphere Application Server ND server, use was_install_dir/profiles/profile-name/config/cells/cell-name/nodes/node-name/servers/server-name/PMF/derby.
Add the Derby JAR file from pmf_install_dir/ApplicationCenter/tools/lib/derby.jar to the directory determined in step 1.
Set up the JDBC provider.
- In the WebSphere Application Server console, click Resources → JDBC → JDBC Providers.
- Select the appropriate scope from the Scope combination box.
- Click New.
- Set Database Type to User-defined.
- Set class Implementation name to org.apache.derby.jdbc.EmbeddedConnectionPoolDataSource40.
- Set Name to PMF - Derby JDBC Provider.
- Set Description to Derby JDBC provider for PMF.
- Click Next.
- Set the Class path to the JAR file in the directory determined in step 1, replacing was_install_dir/profiles/profile-name with the WebSphere Application Server variable reference ${USER_INSTALL_ROOT}.
- Click Finish.
Create the data source for the PMF database.
- In the WebSphere Application Server console, click Resources → JDBC → Data sources.
- Select the appropriate scope from the Scope combination box.
- Click New.
- Set Data source Name to Application Center Database.
- Set JNDI name to jdbc/AppCenterDS.
- Click Next.
- Select the existing JDBC Provider that is named PMF - Derby JDBC Provider.
- Click Next.
- Click Next.
- Click Finish.
- Click Save.
- In the table, click the Application Center Database data source that you created.
- Under Additional Properties, click Custom properties.
- Click databaseName.
- Set Value to the path to the APPCNTR database that is created in Setting up your Apache Derby database manually for Application Center.
- Click OK.
- Click Save.
- At the top of the page, click Application Center Database.
- Under Additional Properties, click WebSphere Application Server data source properties.
- Select Non-transactional datasource.
- Click OK.
- Click Save.
- In the table, select the Application Center Database data source that you created.
- Optional: Only if you are not on the console of a WebSphere Application Server Deployment Manager, click test connection.

Configuring Apache Tomcat for Derby manually for Application Center

You can set up and configure your Apache Derby database manually for Application Center with the Apache Tomcat application server. Complete the Apache Derby database setup procedure before continuing.

Add the Derby JAR file from pmf_install_dir/ApplicationCenter/tools/lib/derby.jar to the directory $TOMCAT_HOME/lib.

Prepare an XML statement that defines the data source, as shown in the following code example.

<Resource auth="Container"
         driverClassName="org.apache.derby.jdbc.EmbeddedDriver"
         name="jdbc/AppCenterDS"
         username="APPCENTER"
         password=""
         type="javax.sql.DataSource"
         url="jdbc:derby:DERBY_DATABASES_DIR/APPCNTR"/>

Insert this statement in the server.xml file, as indicated in Configuring Apache Tomcat for Application Center manually.

Configuring the MySQL database manually for Application Center

You configure the MySQL database manually by creating the database, creating the database tables, and then configuring the relevant application server to use this database setup.

Create the database. This step is described in Creating the MySQL database for Application Center.
Create the tables in the database. This step is described in Setting up your MySQL database manually for Application Center.
Perform the application server-specific setup as the following list shows.

CREATE DATABASE APPCNTR CHARACTER SET utf8 COLLATE utf8_general_ci;
GRANT ALL PRIVILEGES ON APPCNTR.* TO 'PMF'@'PMF-host'IDENTIFIED BY 'PMF';
GRANT ALL PRIVILEGES ON APPCNTR.* TO 'PMF'@'localhost' IDENTIFIED BY 'PMF';
FLUSH PRIVILEGES;

USE APPCNTR;
SOURCE  pmf_install_dir/ApplicationCenter/databases/create-appcenter-mysql.sql;

Where PMF before the “at” sign (@) is the user name, PMF after IDENTIFIED BY is its password, and PMF-host is the name of the host on which Persistent Mobile Foundation runs.

Add the following property to your MySQL option file: max_allowed_packet=256M.
For more information about option files, see the MySQL documentation at MySQL.
Add the following property to your MySQL option file: innodb_log_file_size = 250M
For more information about the innodb_log_file_size property, see the MySQL documentation, section innodb_log_file_size.

Configuring Liberty profile for MySQL manually for Application Center

If you want to manually set up and configure your MySQL database for Application Center with WebSphere Application Server Liberty profile, use the following procedure. Complete the MySQL database setup procedure before continuing.

Note: MySQL in combination with WebSphere Application Server Liberty profile or WebSphere Application Server full profile is not classified as a supported configuration. For more information, see WebSphere Application Server Support Statement. You can use IBM DB2 or another database supported by WebSphere Application Server to benefit from a configuration that is fully supported by Persistent Support.

Add the MySQL JDBC driver JAR file to $LIBERTY_HOME/wlp/usr/shared/resources/mysql. If that directory does not exist, create it.

Configure the data source in the $LIBERTY_HOME/usr/servers/PMFServer/server.xml file (PMFServer may be replaced in this path by the name of your server) as follows:

<!-- Declare the jar files for MySQL access through JDBC. -->
<library id="MySQLLib">
   <fileset dir="${shared.resource.dir}/mysql" includes="*.jar"/>
</library>

<!-- Declare the PMF Application Center database. -->
<dataSource jndiName="jdbc/AppCenterDS" transactional="false">
   <jdbcDriver libraryRef="MySQLLib"/>
<properties databaseName="APPCNTR"
           serverName="mysqlserver" portNumber="3306"
           user="PMF" password="password"/>
</dataSource>

Where PMF after user= is the user name, password after password= is this user’s password, and mysqlserver is the host name of your MySQL server (for example, localhost, if it is on the same machine).

You can encrypt the database password with the securityUtility program in <liberty_install_dir>/bin.

Configuring WebSphere Application Server for MySQL manually for Application Center

If you want to manually set up and configure your MySQL database for Application Center with WebSphere Application Server, use the following procedure. Complete the MySQL database setup procedure before continuing.

Note: MySQL in combination with WebSphere Application Server Liberty profile or WebSphere Application Server full profile is not classified as a supported configuration. For more information, see WebSphere Application Server Support Statement. We suggest that you use IBM DB2 or another database supported by WebSphere Application Server to benefit from a configuration that is fully supported by Persistent Support.

Determine a suitable directory for the JDBC driver JAR file in the WebSphere Application Server installation directory.
- For a standalone server, you can use a directory such as WAS_INSTALL_DIR/optionalLibraries/IBM/PMF/mysql.
- For deployment to a WebSphere Application Server ND cell, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/PMF/mysql.
- For deployment to a WebSphere Application Serverr ND cluster, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/clusters/cluster-name/PMF/mysql.
- For deployment to a WebSphere Application Server ND node, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/nodes/node-name/PMF/mysql.
- For deployment to a WebSphere Application Server ND server, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/nodes/node-name/servers/server-name/PMF/mysql.
If this directory does not exist, create it.
Add the MySQL JDBC driver JAR file downloaded from Download Connector/J to the directory determined in step 1.
Set up the JDBC provider:
- In the WebSphere Application Server console, click Resources → JDBC → JDBC Providers.
- Select the appropriate scope from the Scope combination box.
- Click New.
- Create a JDBC provider named MySQL.
- Set Database type to User defined.
- Set Scope to Cell.
- Set Implementation class to com.mysql.jdbc.jdbc2.optional.MysqlConnectionPoolDataSource.
- Set Database classpath to the JAR file in the directory determined in step 1, replacing WAS_INSTALL_DIR/profiles/profile-name with the WebSphere Application Server variable reference ${USER_INSTALL_ROOT}.
- Save your changes.
Create a data source for the Persistent Application Center database:
- Click Resources → JDBC → Data sources.
- Select the appropriate scope from the Scope combination box.
- Click New to create a data source.
- Type any name (for example, Application Center Database).
- Set JNDI Name to jdbc/AppCenterDS.
- Use the existing JDBC Provider MySQL, defined in the previous step.
- Set Scope to New.
- On the Configuration tab, select Non-transactional data source.
- Click Next a number of times, leaving all other settings as defaults.
- Save your changes.

Set the custom properties of the new data source.

Select the new data source.
Click Custom properties. Set the following properties:

 portNumber = 3306
 relaxAutoCommit=true
 databaseName = APPCNTR
 serverName = the host name of the MySQL server
 user = the user name of the MySQL server
 password = the password associated with the user name

Set the WebSphere Application Server custom properties of the new data source.
- In Resources → JDBC → Data sources, select the new data source.
- Click WebSphere Application Server data source properties.
- Select Non-transactional data source.
- Click OK.
- Click Save.

Configuring Apache Tomcat for MySQL manually for Application Center

If you want to manually set up and configure your MySQL database for Application Center with the Apache Tomcat server, use the following procedure. Complete the MySQL database setup procedure before continuing.

Add the MySQL Connector/J JAR file to the $TOMCAT_HOME/lib directory.
Prepare an XML statement that defines the data source, as shown in the following code example. Insert this statement in the server.xml file, as indicated in Configuring Apache Tomcat for Application Center manually.

<Resource name="jdbc/AppCenterDS"
            auth="Container"
            type="javax.sql.DataSource"
            maxActive="100"
            maxIdle="30"
            maxWait="10000"
            username="PMF"
            password="password"
            driverClassName="com.mysql.jdbc.Driver"
            url="jdbc:mysql://server:3306/APPCNTR"/>

Configuring the Oracle database manually for Application Center

You configure the Oracle database manually by creating the database, creating the database tables, and then configuring the relevant application server to use this database setup.

Create the database. This step is described in Creating the Oracle database for Application Center.
Create the tables in the database. This step is described in Setting up your Oracle database manually for Application Center.
Perform the application server-specific setup as the following list shows.

Ensure that you have at least one Oracle database.

In many Oracle installations, the default database has the SID (name) ORCL. For best results, specify Unicode (AL32UTF8) as the character set of the database.

If the Oracle installation is on a UNIX or Linux computer, make sure that the database is started next time the Oracle installation is restarted. To this effect, make sure that the line in /etc/oratab that corresponds to the database ends with a Y, not with an N.

Create the user APPCENTER, either by using Oracle Database Control, or by using the Oracle SQLPlus command-line interpreter.

To create the user for the Application Center database/schema, by using Oracle Database Control, proceed as follows:

Connect as SYSDBA.
Go to the Users page.
Click Server, then Users in the Security section.
Create a user, named APPCENTER with the following attributes:

Profile: DEFAULT
Authentication: password
Default tablespace: USERS
Temporary tablespace: TEMP
Status: Unlocked
Add system privilege: CREATE SESSION
Add system privilege: CREATE SEQUENCE
Add system privilege: CREATE TABLE
Add quota: Unlimited for tablespace USERS

To create the user by using Oracle SQLPlus, enter the following commands:

CONNECT SYSTEM/<SYSTEM_password>@ORCL
CREATE USER APPCENTER IDENTIFIED BY password DEFAULT TABLESPACE USERS QUOTA UNLIMITED ON USERS;
GRANT CREATE SESSION, CREATE SEQUENCE, CREATE TABLE TO APPCENTER;
DISCONNECT;

Create the tables for the Application Center database:
- Using the Oracle SQLPlus command-line interpreter, create the tables for the Application Center database by running the create-appcenter-oracle.sql file:
```
CONNECT APPCENTER/APPCENTER_password@ORCL
@pmf_install_dir/ApplicationCenter/databases/create-appcenter-oracle.sql
DISCONNECT;
```
Download and configure the Oracle JDBC driver:
- Download the JDBC driver from the Oracle website at Oracle: JDBC, SQLJ, Oracle JPublisher and Universal Connection Pool (UCP).
- Ensure that the Oracle JDBC driver is in the system path. The driver file is ojdbc6.jar.

Configuring Liberty profile for Oracle manually for Application Center

You can set up and configure your Oracle database manually for Application Center with WebSphere Application Server Liberty profile by adding the JAR file of the Oracle JDBC driver. Before continuing, set up the Oracle database.

Add the JAR file of the Oracle JDBC driver to $LIBERTY_HOME/wlp/usr/shared/resources/oracle. If that directory does not exist, create it.
If you are using JNDI, configure the data sources in the $LIBERTY_HOME/wlp/usr/servers/MobileFoundationServer/server.xml file as shown in the following JNDI code example:

Note: In this path, you can replace MobileFoundationServer with the name of your server.
```

<library id="OracleLib">
   <fileset dir="${shared.resource.dir}/oracle" includes="*.jar"/>
</library>


<dataSource jndiName="jdbc/AppCenterDS" transactional="false">
   <jdbcDriver libraryRef="OracleLib"/>
   <properties.oracle driverType="thin"
                      serverName="oserver" portNumber="1521"
                      databaseName="ORCL"
                      user="APPCENTER" password="APPCENTER_password"/>
</dataSource>
```
Where:
- APPCENTER after user= is the user name,
- APPCENTER_password after password= is this user’s password, and
- oserver is the host name of your Oracle server (for example, localhost if it is on the same machine).
Note: For more information on how to connect the Liberty server to the Oracle database with a service name, or with a URL, see the WebSphere Application Server Liberty Core 8.5.5 documentation, section properties.oracle.
You can encrypt the database password with the securityUtility program in liberty_install_dir/bin.

Configuring WebSphere Application Server for Oracle manually for Application Center

If you want to manually set up and configure your Oracle database for Application Center with WebSphere Application Server, use the following procedure. Complete the Oracle database setup procedure before continuing.

Determine a suitable directory for the JDBC driver JAR file in the WebSphere Application Server installation directory.
- For a standalone server, you can use a directory such as WAS_INSTALL_DIR/optionalLibraries/IBM/PMF/oracle.
- For deployment to a WebSphere Application Server ND cell, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/PMF/oracle.
- For deployment to a WebSphere Application Server ND cluster, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/clusters/cluster-name/PMF/oracle.
- For deployment to a WebSphere Application Server ND node, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/nodes/node-name/PMF/oracle.
- For deployment to a WebSphere Application Server ND server, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/nodes/node-name/servers/server-name/PMF/oracle.
If this is directory does not exist, create it.
Add the Oracle ojdbc6.jar file downloaded from JDBC and Universal Connection Pool (UCP) to the directory determined in step 1.

Set up the JDBC provider:

In the WebSphere Application Server console, click Resources → JDBC → JDBC Providers.
Select the appropriate scope from the Scope combination box.
Click New.

Complete the JDBC Provider fields as indicated in the following table:

Field	Value
Databasetype	Oracle
Provider type	Oracle JDBC Driver
Implementation type	Connection pool data source
Name	Oracle JDBC Driver

Click Next.
Set the class path to the JAR file in the directory determined in step 1, replacing WAS_INSTALL_DIR/profiles/profile-name with the WebSphere Application Server variable reference ${USER_INSTALL_ROOT}
Click Next.

The JDBC provider is created.

Create a data source for the PMF database:
- Click Resources → JDBC → Data sources.
- Select the appropriate scope from the Scope combination box.
- Click New.
- Set Data source name to Oracle JDBC Driver DataSource.
- Set JNDI name to jdbc/AppCenterDS.
- Click Next.
- Click Select an existing JDBC provider and select Oracle JDBC driver from the list.
- Click Next.
- Set the URL value to jdbc:oracle:thin:@oserver:1521:ORCL, where oserver is the host name of your Oracle server (for example, localhost, if it is on the same machine).
- Click Next twice.
- Click Resources → JDBC → Data sources → Oracle JDBC Driver DataSource → Custom properties.
- Set oracleLogPackageName to oracle.jdbc.driver.
- Set user = APPCENTER.
- Set password = APPCENTER_password.
- Click OK and save the changes.
- In Resources → JDBC → Data sources, select the new data source.
- Click WebSphere Application Server data source properties.
- Select the Non-transactional data source check box.
- Click OK.
- Click Save.

Configuring Apache Tomcat for Oracle manually for Application Center

If you want to manually set up and configure your Oracle database for Application Center with the Apache Tomcat server, use the following procedure. Complete the Oracle database setup procedure before continuing.

Add the Oracle JDBC driver JAR file to the directory $TOMCAT_HOME/lib.
Prepare an XML statement that defines the data source, as shown in the following code example. Insert this statement in the server.xml file, as indicated in Configuring Apache Tomcat for Application Center manually

<Resource name="jdbc/AppCenterDS"
        auth="Container"
        type="javax.sql.DataSource"
        driverClassName="oracle.jdbc.driver.OracleDriver"
        url="jdbc:oracle:thin:@oserver:1521:ORCL"
        username="APPCENTER"
        password="APPCENTER_password"/>

Where APPCENTER after username= is the name of the system user with “CONNECT” access to the APPCNTR database that you have previously created, and APPCENTER_password after password= is this user’s password. If you have defined either a different user name, or a different password, or both, replace these values accordingly.

Deploying the Application Center WAR files and configuring the application server manually

The procedure to manually deploy the Application Center WAR files manually to an application server depends on the type of application server being configured.
These manual instructions assume that you are familiar with your application server.

Note: Using the PMF installer to install Application Center is more reliable than installing manually, and should be used whenever possible.

If you prefer to use the manual process, follow these steps to configure your application server for Application Center. You must deploy the appcenterconsole.war and applicationcenter.war files to your Application Center. The files are located in pmf_install_dir/ApplicationCenter/console.

To configure WebSphere Application Server Liberty profile manually for Application Center, you must modify the server.xml file.
In addition to modifications for the databases that are described in Manually installing Application Center, you must make the following modifications to the server.xml file.

Ensure that the <featureManager> element contains at least the following <feature> elements:

<feature>jdbc-4.0</feature>
<feature>appSecurity-2.0</feature>
<feature>servlet-3.0</feature>
<feature>usr:MFPDecoderFeature-1.0</feature>

Add the following declarations for Application Center:

<!-- The directory with binaries of the 'aapt' program, from the Android SDK's
      platform-tools package. -->
<jndiEntry jndiName="android.aapt.dir" value="pmf_install_dir/ApplicationCenter/tools/android-sdk"/>
<!-- Declare the Application Center Console application. -->
<application id="appcenterconsole"
              name="appcenterconsole"
              location="appcenterconsole.war"
              type="war">
   <application-bnd>
     <security-role name="appcenteradmin">
       <group name="appcentergroup"/>
     </security-role>
   </application-bnd>
   <classloader delegation="parentLast">
   </classloader>
</application>

<!-- Declare the PMF Application Center Services application. -->
<application id="applicationcenter"
              name="applicationcenter"
              location="applicationcenter.war"
              type="war">
   <application-bnd>
     <security-role name="appcenteradmin">
       <group name="appcentergroup"/>
     </security-role>
   </application-bnd>
   <classloader delegation="parentLast">
   </classloader>
</application>

<!-- Declare the user registry for the PMF Application Center. -->
<basicRegistry id="applicationcenter-registry"
                realm="ApplicationCenter">
   <!-- The users defined here are members of group "appcentergroup",
        thus have role "appcenteradmin", and can therefore perform
        administrative tasks through the Application Center Console. -->
   <user name="appcenteradmin" password="admin"/>
   <user name="demo" password="demo"/>
   <group name="appcentergroup">
     <member name="appcenteradmin"/>
     <member name="demo"/>
   </group>
</basicRegistry>

The groups and users that are defined in the basicRegistry are example logins that you can use to test Application Center. Similarly, the groups that are defined in the <security-role name="appcenteradmin"> for the Application Center console and the Application Center service are examples. For more information about how to modify these groups, see Configuring the Java EE security roles on WebSphere Application Server Liberty profile.

If the database is Oracle, add the commonLibraryRef attribute to the class loader of the Application Center service application.
```
...
<classloader delegation="parentLast"  commonLibraryRef="OracleLib">
...
```
The name of the library reference (OracleLib in this example) must be the ID of the library that contains the JDBC JAR file. This ID is declared in the procedure that is documented in Configuring Liberty profile for Oracle manually for Application Center.

Copy the Application Center WAR files to your Liberty server.

On UNIX and Linux systems:

mkdir -p LIBERTY_HOME/wlp/usr/servers/server_name/apps
cp  pmf_install_dir/ApplicationCenter/console/*.war LIBERTY_HOME/wlp/usr/servers/server_name/apps/

On Windows systems:

mmkdir LIBERTY_HOME\wlp\usr\servers\server_name\apps
copy /B  pmf_install_dir\ApplicationCenter\console\appcenterconsole.war
LIBERTY_HOME\wlp\usr\servers\server_name\apps\appcenterconsole.war
copy /B  pmf_install_dir\ApplicationCenter\console\applicationcenter.war
LIBERTY_HOME\wlp\usr\servers\server_name\apps\applicationcenter.war

Copy the password decoder user feature.

On UNIX and Linux systems:

mkdir -p LIBERTY_HOME/wlp/usr/extension/lib/features
cp  pmf_install_dir/features/com.ibm.websphere.crypto_1.0.0.jar LIBERTY_HOME/wlp/usr/extension/lib/
cp  pmf_install_dir/features/MFPDecoderFeature-1.0.mf LIBERTY_HOME/wlp/usr/extension/lib/features/

On Windows systems:

mkdir LIBERTY_HOME\wlp\usr\extension\lib
copy /B  pmf_install_dir\features\com.ibm.websphere.crypto_1.0.0.jar
LIBERTY_HOME\wlp\usr\extension\lib\com.ibm.websphere.crypto_1.0.0.jar
mkdir LIBERTY_HOME\wlp\usr\extension\lib\features
copy /B  pmf_install_dir\features\MFPDecoderFeature-1.0.mf
LIBERTY_HOME\wlp\usr\extension\lib\features\MFPDecoderFeature-1.0.mf

Start the Liberty server.

Configuring WebSphere Application Server for Application Center manually

To configure WebSphere Application Server for Application Center manually, you must configure variables, custom properties, and class loading policies. Make sure that a WebSphere Application Server profile exists.

Log on to the WebSphere Application Server administration console for your Persistent Mobile Foundation Server.
Enable application security.
- Click Security → Global Security.
- Ensure that Enable administrative security is selected. Application security can be enabled only if administrative security is enabled.
- Ensure that Enable application security is selected.
- Click OK.
- Save the changes.
Create the Application Center JDBC data source and provider. See the appropriate section in Manually installing Application Center.
Install the Application Center console WAR file.
- Depending on your version of WebSphere Application Server, click one of the following options:
  - Applications → New → New Enterprise Application
  - Applications → New Application → New Enterprise Application
- Navigate to the PMF installation directory pmf_install_dir/ApplicationCenter/console.
- Select appcenterconsole.war and click Next.
- On the How do you want to install the application? page, click Detailed, and then click Next.
- On the Application Security Warnings page, click Continue.
- Click Next until you reach the “Map context roots for web modules” page.
- In the Context Root field, type /appcenterconsole.

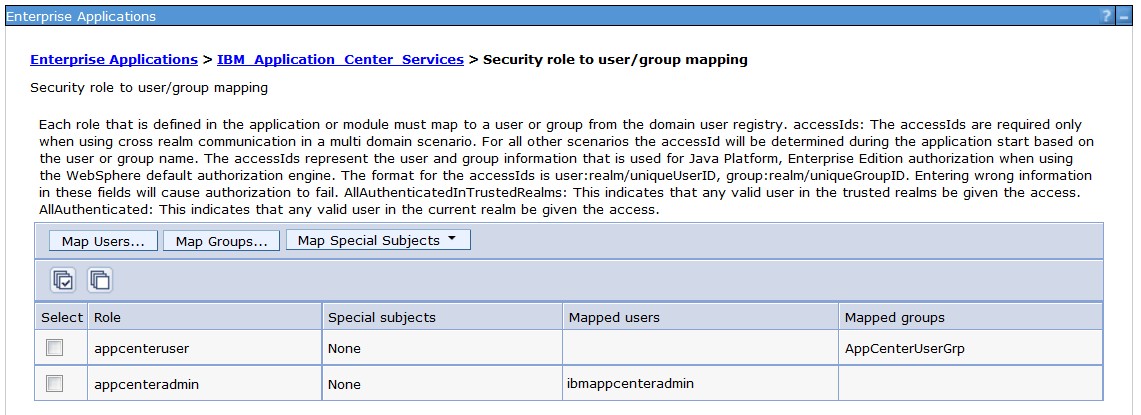

- Click Next until you reach the “Map security roles to users or groups” page.
- Select all roles, click Map Special Subjects and select All Authenticated in Application’s Realm.
- Click Next until you reach the Summary page.
- Click Finish and save the configuration.
Configure the class loader policies and then start the application:

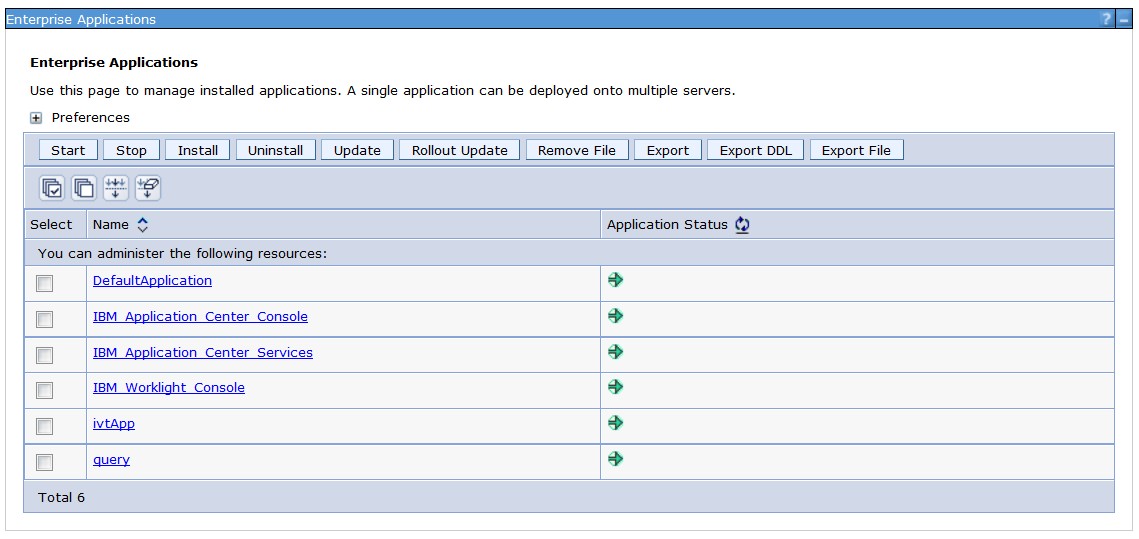

- Click Applications → Application types → WebSphere Enterprise Applications.
- From the list of applications, click appcenterconsole_war.
- In the Detail Properties section, click the Class loading and update detection link.
- In the Class loader order pane, click Classes loaded with local class loader first (parent last).
- Click OK.
- In the Modules section, click Manage Modules.
- From the list of modules, click ApplicationCenterConsole.
- In the Class loader order pane, click Classes loaded with local class loader first (parent last).
- Click OK twice.
- Click Save.
- Select appcenterconsole_war and click (Start).
Install the WAR file for Application Center services.
- Depending on your version of WebSphere Application Server, click one of the following options:
  - Applications → New → New Enterprise Application
  - Applications → New Application → New Enterprise Application
- Navigate to the PMF installation directory pmf_install_dir/ApplicationCenter/console.
- Select applicationcenter.war and click Next.
- On the How do you want to install the application? page, click Detailed, and then click Next.
- On the Application Security Warnings page, click Continue.
- Click Next until you reach the “Map resource references to resources” page.
- Click Browser and select the data source with the jdbc/AppCenterDS JNDI name.
- Click Apply.
- In the Context Root field, type /applicationcenter.
- Click Next until you reach the “Map security roles to users or groups” page.
- Select all roles, click Map Special Subjects, and select All Authenticated in Application’s Realm.
- Click Next until you reach the Summary page.
- Click Finish and save the configuration.
Repeat step 5.
- Select applicationcenter.war from the list of applications in substeps b and k.
- Select ApplicationCenterServices in substep g.
Review the server class loader policy: Depending on your version of WebSphere Application Server, click Servers → Server Types → Application Servers or Servers → Server Types → WebSphere application servers and then select the server.
- If the class loader policy is set to Multiple, do nothing.
- If the class loader policy is set to Single and Class loading mode is set to Classes loaded with local class loader first (parent last), do nothing.
- If Classloader policy is set to Single and Class loading mode is set to Classes loaded with parent class loader first, set Classloader policy to Multiple and set the classloader policy of all applications other than Mobile Foundation applications to Classes loaded with parent class loader first.
Save the configuration.
Configure a JNDI environment entry to indicate the directory with binary files of the aapt program, from the Android SDK platform-tools package.
- Determine a suitable directory for the aapt binary files in the WebSphere Application Server installation directory.
  - For a stand-alone server, you can use a directory such as WAS_INSTALL_DIR/optionalLibraries/IBM/mobilefoundation/android-sdk.
  - For deployment to a WebSphere Application Server Network Deployment cell, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/mobilefoundation/android-sdk.
  - For deployment to a WebSphere Application Server Network Deployment cluster, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/clusters/cluster-name/mobilefoundation/android-sdk.
  - For deployment to a WebSphere Application Server Network Deployment node, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/nodes/node-name/mobilefoundation/android-sdk.
  - For deployment to a WebSphere Application Server Network Deployment server, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/nodes/node-name/servers/server-name/mobilefoundation/android-sdk.
- Copy the pmf_install_dir/ApplicationCenter/tools/android-sdk directory to the directory that you determined in Substep a.
- For WebSphere Application Server Network Deployment, click System administration → Nodes, select the nodes, and click Full Synchronize.
- Configure the environment entry (JNDI property) android.aapt.dir, and set as its value the directory that you determined in Substep a. The WAS_INSTALL_DIR/profiles/profile-name profile is replaced with the WebSphere Application Server variable reference ${USER_INSTALL_ROOT}.

You can now access the Application Center at http://<server>:<port>/appcenterconsole, where server is the host name of your server and port is the port number (by default 9080).

Configuring Apache Tomcat for Application Center manually

To configure Apache Tomcat for Application Center manually, you must copy JAR and WAR files to Tomcat, add database drivers, edit the server.xml file, and then start Tomcat.

Add the database drivers to the Tomcat lib directory. See the instructions for the appropriate DBMS in Manually installing PMF Application Center.

Edit tomcat_install_dir/conf/server.xml.

Uncomment the following element, which is initially commented out: <Valve className="org.apache.catalina.authenticator.SingleSignOn" />.

Declare the PMF Application Center console and services applications and a user registry:

<!-- Declare the PMF Application Center Console application. -->
<Context path="/appcenterconsole" docBase="appcenterconsole">

    <!-- Define the AppCenter services endpoint in order for the AppCenter
         console to be able to invoke the REST service.
         You need to enable this property if the server is behind a reverse
         proxy or if the context root of the Application Center Services
         application is different from '/applicationcenter'. -->
    <!-- <Environment name="ibm.appcenter.services.endpoint"
                      value="http://proxy-host:proxy-port/applicationcenter"
                      type="java.lang.String" override="false"/>
    -->

</Context>

<!-- Declare the PMF Application Center Services application. -->
<Context path="/applicationcenter" docBase="applicationcenter">
    <!-- The directory with binaries of the 'aapt' program, from
         the Android SDK's platform-tools package. -->
    <Environment name="android.aapt.dir"
                 value="pmf_install_dir/ApplicationCenter/tools/android-sdk"
                 type="java.lang.String" override="false"/>
    <!-- The protocol of the application resources URI.
         This property is optional. It is only needed if the protocol
         of the external and internal URI are different. -->
    <!-- <Environment name="ibm.appcenter.proxy.protocol"
                      value="http" type="java.lang.String" override="false"/>
    -->

    <!-- The host name of the application resources URI. -->
    <!-- <Environment name="ibm.appcenter.proxy.host"
                      value="proxy-host"
                      type="java.lang.String" override="false"/>
    -->

    <!-- The port of the application resources URI.
         This property is optional. -->
    <!-- <Environment name="ibm.appcenter.proxy.port"
                      value="proxy-port"
                      type="java.lang.Integer" override="false"/> -->

    <!-- Declare the PMF Application Center Services database. -->
    <!-- <Resource name="jdbc/AppCenterDS" type="javax.sql.DataSource" ... -->

</Context>

<!-- Declare the user registry for the PMF Application Center.
       The MemoryRealm recognizes the users defined in conf/tomcat-users.xml.
       For other choices, see Apache Tomcat's "Realm Configuration HOW-TO"
       http://tomcat.apache.org/tomcat-7.0-doc/realm-howto.html . -->
<Realm className="org.apache.catalina.realm.MemoryRealm"/>

Where you fill in the <Resource> element as described in one of the sections:

Configuring Apache Tomcat for DB2 manually for Application Center
Configuring Apache Tomcat for Derby manually for Application Center
Configuring Apache Tomcat for MySQL manually for Application Center
Configuring Apache Tomcat for Oracle manually for Application Center

Copy the Application Center WAR files to Tomcat.

On UNIX and Linux systems:

cp pmf_install_dir/ApplicationCenter/console/*.war TOMCAT_HOME/webapps/

On Windows systems:

copy /B pmf_install_dir\ApplicationCenter\console\appcenterconsole.war tomcat_install_dir\webapps\appcenterconsole.war
copy /B pmf_install_dir\ApplicationCenter\console\applicationcenter.war tomcat_install_dir\webapps\applicationcenter.war

Start Tomcat.

Deploying the PMF Application Center EAR file and configuring the application server manually

As an alternative to the PMF installer procedure, you can use a manual procedure to deploy the PMF Application Center EAR file and configure your WebSphere application server manually. These manual instructions assume that you are familiar with your application server.

The procedure to deploy the PMF Application Center EAR file manually to an application server depends on the type of application server. Manual deployment is supported only for WebSphere Application Server Liberty profile and WebSphere Application Server.

For manual procedure, deploy the appcentercenter.ear file, which you can find in the pmf_install_dir/ApplicationCenter/console directory.

Configuring the Liberty profile for PMF Application Center manually

After you deploy the Application Center EAR file, to configure WebSphere Application Server Liberty profile manually for PMF Application Center, you must modify the server.xml file.

In addition to modifications for the databases that are described in Manually installing PMF Application Center, you must make the following modifications to the server.xml file.

Ensure that the <featureManager> element contains at least the following <feature> elements:

<feature>jdbc-4.0</feature>
<feature>appSecurity-2.0</feature>
<feature>servlet-3.0</feature>
<feature>usr:MFPDecoderFeature-1.0</feature>

Add the following declarations for PMF Application Center:

<!-- The directory with binaries of the 'aapt' program, from the Android SDK's platform-tools package. -->
<jndiEntry jndiName="android.aapt.dir" value="pmf_install_dir/ApplicationCenter/tools/android-sdk"/>

<!-- Declare the PMF Application Center application. -->
<application id="applicationcenter"
              name="applicationcenter"
              location="applicationcenter.ear"
              type="ear">
   <application-bnd>
     <security-role name="appcenteradmin">
       <group name="appcentergroup"/>
     </security-role>
   </application-bnd>
   <classloader delegation="parentLast">
   </classloader>
</application>

<!-- Declare the user registry for the PMF Application Center. -->
<basicRegistry id="applicationcenter-registry"
                realm="ApplicationCenter">
   <!-- The users defined here are members of group "appcentergroup",
        thus have role "appcenteradmin", and can therefore perform
        administrative tasks through the Application Center Console. -->
   <user name="appcenteradmin" password="admin"/>
   <user name="demo" password="demo"/>
   <group name="appcentergroup">
     <member name="appcenteradmin"/>
     <member name="demo"/>
   </group>
</basicRegistry>

The groups and users that are defined in the basicRegistry element are example logins, which you can use to test Application Center. Similarly, the groups that are defined in the <security-role name="appcenteradmin"> element are examples. For more information about how to modify these groups, see Configuring the Java EE security roles on WebSphere Application Server Liberty profile.

If the database is Oracle, add the commonLibraryRef attribute to the class loader of the Application Center application.
```
...
<classloader delegation="parentLast"  commonLibraryRef="OracleLib">
...
```
The name of the library reference (OracleLib in this example) must be the ID of the library that contains the JDBC JAR file. This ID is declared in the procedure that is documented in Configuring Liberty profile for Oracle manually for PMF Application Center.

Copy the Application Center EAR files to your Liberty server.

On UNIX and Linux systems:

 mkdir -p LIBERTY_HOME/wlp/usr/servers/server_name/apps
 cp pmf_install_dir/ApplicationCenter/console/*.ear LIBERTY_HOME/wlp/usr/servers/server_name/apps/

On Windows systems:

 mkdir LIBERTY_HOME\wlp\usr\servers\server_name\apps
 copy /B pmf_install_dir\ApplicationCenter\console\applicationcenter.ear
 LIBERTY_HOME\wlp\usr\servers\server_name\apps\applicationcenter.ear

Copy the password decoder user feature.

On UNIX and Linux systems:

mkdir -p LIBERTY_HOME/wlp/usr/extension/lib/features
cp pmf_install_dir/features/com.ibm.websphere.crypto_1.0.0.jar LIBERTY_HOME/wlp/usr/extension/lib/
cp pmf_install_dir/features/MFPDecoderFeature-1.0.mf LIBERTY_HOME/wlp/usr/extension/lib/features/

On Windows systems:

mkdir LIBERTY_HOME\wlp\usr\extension\lib
copy /B pmf_install_dir\features\com.ibm.websphere.crypto_1.0.0.jar
LIBERTY_HOME\wlp\usr\extension\lib\com.ibm.websphere.crypto_1.0.0.jar
mkdir LIBERTY_HOME\wlp\usr\extension\lib\features
copy /B pmf_install_dir\features\MFPDecoderFeature-1.0.mf
LIBERTY_HOME\wlp\usr\extension\lib\features\MFPDecoderFeature-1.0.mf

Start the Liberty server.

Configuring WebSphere Application Server for PMF Application Center manually

After you deploy the Application Center EAR file, to configure WebSphere Application Server profile manually for PMF Application Center, you must configure variables, custom properties, and class loader policies. Make sure that a WebSphere Application Server profile exists.

Log on to the WebSphere Application Server administration console for your Persistent Mobile Foundation Server.
Enable application security.
- Click Security → Global Security.
- Ensure that Enable administrative security is selected. Application security can be enabled only if administrative security is enabled.
- Ensure that Enable application security is selected.
- Click OK.
- Save the changes.
Create the PMF Application Center JDBC data source and provider. See the appropriate section in Manually installing PMF Application Center.
Install the PMF Application Center console WAR file.
- Depending on your version of WebSphere Application Server, click one of the following options:
  - Applications → New → New Enterprise Application
  - Applications → New Application → New Enterprise Application
- Navigate to the PMF installation directory pmf_install_dir/ApplicationCenter/console.
- Select appcenterconsole.war and click Next.
- On the How do you want to install the application? page, click Detailed, and then click Next.
- On the Application Security Warnings page, click Continue.
- Click Next until you reach the “Map context roots for web modules” page.
- In the Context Root field, type /appcenterconsole.
- Click Next until you reach the “Map security roles to users or groups” page.
- Select all roles, click Map Special Subjects and select All Authenticated in Application’s Realm.
- Click Next until you reach the Summary page.
- Click Finish and save the configuration.
Configure the class loader policies and then start the application:
- Click Applications → Application types → WebSphere Enterprise Applications.
- From the list of applications, click AppCenterEAR.
- In the Detail Properties section, click the Class loading and update detection link.
- In the Class loader order pane, click Classes loaded with local class loader first (parent last).
- Click OK.
- In the Modules section, click Manage Modules.
- From the list of modules, click ApplicationCenterConsole.
- In the Class loader order pane, click Classes loaded with local class loader first (parent last).
- Click OK.
- From the list of modules, click ApplicationCenterServices.
- In the Class loader order pane, click Classes loaded with local class loader first (parent last).
- Click OK twice.
- Click Save.
- Select appcenterconsoleEAR and click Start.
Review the server class loader policy:

Depending on your version of WebSphere Application Server, click Servers → Server Types → Application Servers or Servers → Server Types → WebSphere application servers and then select the server. * If the class loader policy is set to Multiple, do nothing. * If the class loader policy is set to Single and Class loading mode is set to Classes loaded with local class loader first (parent last), do nothing. * If Classloader policy is set to Single and Class loading mode is set to Classes loaded with parent class loader first, set Classloader policy to Multiple and set the classloader policy of all applications other than Mobile Foundation applications to Classes loaded with parent class loader first.
Save the configuration.
Configure a JNDI environment entry to indicate the directory with binary files of the aapt program, from the Android SDK platform-tools package.
- Determine a suitable directory for the aapt binary files in the WebSphere Application Server installation directory.
  - For a stand-alone server, you can use a directory such as WAS_INSTALL_DIR/optionalLibraries/IBM/mobilefoundation/android-sdk.
  - For deployment to a WebSphere Application Server Network Deployment cell, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/mobilefoundation/android-sdk.
  - For deployment to a WebSphere Application Server Network Deployment cluster, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/clusters/cluster-name/mobilefoundation/android-sdk.
  - For deployment to a WebSphere Application Server Network Deployment node, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/nodes/node-name/mobilefoundation/android-sdk.
  - For deployment to a WebSphere Application Server Network Deployment server, use WAS_INSTALL_DIR/profiles/profile-name/config/cells/cell-name/nodes/node-name/servers/server-name/mobilefoundation/android-sdk.
- Copy the pmf_install_dir/ApplicationCenter/tools/android-sdk directory to the directory that you determined in Substep a.
- For WebSphere Application Server Network Deployment, click System administration → Nodes, select the nodes, and click Full Synchronize.
- Configure the environment entry (JNDI property) android.aapt.dir and set as its value the directory that you determined in Substep a. The WAS_INSTALL_DIR/profiles/profile-name profile is replaced with the WebSphere Application Server variable reference ${USER_INSTALL_ROOT}.
You can now access the Application Center at http://<server>:<port>/appcenterconsole, where server is the host name of your server and port is the port number (by default 9080).

Configuring Application Center after installation

After you install Application Center in the web application server that you designated, you have additional configuration to do.

Configuring user authentication for Application Center
Managing users with LDAP
Configuring properties of DB2 JDBC driver in WebSphere Application Server
Managing the DB2 transaction log size
Defining the endpoint of the application resources
Configuring Secure Sockets Layer (SSL)
JNDI properties for Application Center
Configuring WebSphere Application Server to support applications in public app stores

Configuring user authentication for Application Center

You configure user authentication and choose an authentication method. The configuration procedure depends on the web application server that you use. Application Center requires user authentication.

You must perform some configuration after the installer deploys Application Center web applications in the web application server. Application Center has two Java™ Platform, Enterprise Edition (Java EE) security roles defined:

The appcenteruser role that represents an ordinary user of Application Center who can install mobile applications from the catalog to a mobile device belonging to that user.
The appcenteradmin role that represents a user who can perform administrative tasks through the Application Center console.

You must map the roles to the corresponding sets of users.

Java EE security roles in Application Center

If you choose to use an authentication method through a user repository such as LDAP, you can configure Application Center so that you can use users and groups with the user repository to define the Access Control List (ACL) of Application Center. This procedure is conditioned by the type and version of the web application server that you use. See Managing users with LDAP for information about LDAP used with Application Center.

After you configure authentication of the users of Application Center, which includes configuring LDAP if you plan to use it, you can, if necessary, define the endpoint of the application resources. You must then build the Application Center mobile client. The mobile client is used to install applications on mobile devices. See Preparations for using the mobile client for how to build the Application Center mobile client.

Select Security → Global Security.
Select Security Configuration Wizard to configure users.
You can manage individual user accounts by selecting Users and Groups → Manage Users.
If you deployed WAR files, map the appcenteruser and appcenteradmin roles to a set of users as follows:
- Select Servers → Server Types → WebSphere application servers.
- Select the server.
- In the Configuration tab, select Applications → Enterprise applications.
- Select IBM_Application_Center_Services.
- In the Configuration tab, select Details → Security role to user/group mapping.
- Perform the necessary customization.
- Click OK.
- Repeat the steps to map the roles for the console web application; select IBM_Application_Center_Console.
- Click Save to save the changes.
If you deployed an EAR file, map the appcenteruser and appcenteradmin roles to a set of users as follows:
- Select Applications → Application Types → WebSphere application servers.
- Click AppCenterEAR.
- In the Detail Properties section, click Security role to user/group mapping.
- Customize as necessary.
- Click OK.
- Click Save.

Configuring the Java EE security roles on WebSphere Application Server Liberty profile

Configure the Java™ EE security roles of the Application Center and the data source in the server.xml file.

To configure the security roles, you must edit the server.xml file. In the <application-bnd> element of each <application> element, create two <security-role> elements. One <security-role> element is for the appcenteruser role and the other is for the appcenteradmin role. Map the roles to the appropriate user group name appcenterusergroup or appcenteradmingroup. These groups are defined through the <basicRegistry> element. You can customize this element or replace it entirely with an <ldapRegistry> element or a <safRegistry> element.

Then, to maintain good response times with a large number of installed applications, for example with 80 applications, you should configure a connection pool for the Application Center database.

Edit the server.xml file. For example:
```
<security-role name="appcenteradmin">
   <group name="appcenteradmingroup"/>
</security-role>
<security-role name="appcenteruser">
   <group name="appcenterusergroup"/>
</security-role>
```
You must include this example in the following location:
- If you deployed WAR files, in the <application-bnd> element of each <application> element: the appcenterconsole and applicationcenter applications.
- If you deployed an EAR file, in the <application-bnd> element of the applicationcenter application.
Replace the <security-role> elements that have been created during installation for test purposes.
```
<basicRegistry id="appcenter">
   <user name="admin" password="admin"/>
   <user name="guest" password="guest"/>
   <user name="demo" password="demo"/>
   <group name="appcenterusergroup">
     <member name="guest"/>
     <member name="demo"/>
   </group>
   <group name="appcenteradmingroup">
     <member name="admin" id="admin"/>
   </group>
</basicRegistry>
```
This example shows a definition of users and groups in the basicRegistry of WebSphere Application Server Liberty. For more information about configuring a user registry for WebSphere Application Server Liberty profile, see Configuring a user registry for the Liberty profile.

Edit the server.xml file to define the AppCenterPool size.

<connectionManager id="AppCenterPool" minPoolSize="10" maxPoolSize="40"/>

In the <dataSource> element, define a reference to the connection manager:

<dataSource id="APPCNTR" jndiName="jdbc/AppCenterDS" connectionManagerRef="AppCenterPool">
...
</dataSource>

Configuring the Java EE security roles on Apache Tomcat

You must configure the Java™ EE security roles for the Application Center on the Apache Tomcat web application server.

In the Apache Tomcat web application server, you configure the roles of appcenteruser and appcenteradmin in the conf/tomcat-users.xml file. The installation creates the following users:

<user username="appcenteradmin" password="admin" roles="appcenteradmin"/>
<user username="demo" password="demo" roles="appcenteradmin"/>
<user username="guest" password="guest" roles="appcenteradmin"/>

You can define the set of users as described in the Apache Tomcat documentation, Realm Configuration HOW-TO.

Managing users with LDAP

Use the Lightweight Directory Access Protocol (LDAP) registry to manage users.

LDAP is a way to centralize the user management for multiple web applications in an LDAP Server that maintains a user registry. It can be used instead of specifying one by one the users for the security roles appcenteradmin and appcenteruser.

If you plan to use an LDAP registry with the Application Center, you must configure your WebSphere Application Server or your Apache Tomcat server to use an LDAP registry to authenticate users.

In addition to authentication of users, configuring the Application Center for LDAP also enables you to use LDAP to define the users and groups who can install mobile applications through the Application Center. The means of defining these users and groups is the Access Control List (ACL).

Log in to the WebSphere Application Server console.
Select Security → Global security and verify that administrative security and application security are enabled.
In the “User account repository” section, select Federated repositories.
Click Configure.
Add a repository and configure it.
- Click Add Base entry to Realm.
- Specify the value of Distinguished name of a base entry that uniquely identifies entries in the realm and click Add Repository.
- Select LDAP Repository.
- Give this repository a name and enter the values that are required to connect to your LDAP server.
- Under Additional Properties, click LDAP entity types.
- Configure the Group, OrgContainer, and PersonAccount properties. These configuration details depend on your LDAP server.
Save the configuration, log out, and restart the server.
If you deployed WAR files, in the WebSphere Application Server console, map the security roles to users and groups.
- In the Configuration tab, select Applications → WebSphere Enterprise applications.
- Select IBM_Application_Center_Services.
- In the Configuration tab, select Details → Security role to user/group mapping.
- For appcenteradmin and appcenteruser roles, select Map groups. This selection enables you to select users and groups inside the WebSphere user repository, including LDAP users and groups. The selected users can access the Application Center as appcenteradmin or appcenteruser. You can also map the roles to Special Subjects “All authenticated in application realm” to give everyone in the WebSphere user repository, including everyone registered in the LDAP registry, access to the Application Center.
Repeat step 7 for IBM_Application_Center_Console.

Make sure that you select IBM_Application_Center_Console in step 7.b instead of IBM_Application_Center_Services.
If you deployed an EAR file, in the WebSphere Application Server console, map the security roles to users and groups.
- Click Applications → Application Types → WebSphere enterprise applications.
- From the list of applications, click AppCenterEAR.
- In the Detail Properties section, click Security role to user/group mapping.
- For appcenteradmin and appcenteruser roles, select Map groups or Map users to select users or groups inside the WebSphere user repository, including LDAP users and groups.
The selected users can access the Application Center as appcenteradmin or appcenteruser. You can also map the roles to Special Subjects “All authenticated in application realm” to give access to the Application Center to everyone in the WebSphere user repository, including everyone registered in the LDAP registry.
Click Save to save your changes.

Configuring LDAP ACL management for WebSphere Application Server V8.x

To configure ACL with LDAP, you define three properties: uid, sn, and cn. These properties enable the login name and the full name of users and the name of user groups to be identified in the Application Center. Then you enable ACL management with VMM. You can configure LDAP based on the federated repository configuration only.

Log in to the WebSphere Application Server console.
Select Security → Global security.
In the User account repository section, select Configure.
Select your LDAP repository entry.
Under Additional Properties, select LDAP attributes (WebSphere Application Server V8.0) or Federated repositories property names to LDAP attributes mapping (WebSphere Application Server V8.5).
Select Add → Supported.
Enter these property values:
- For Name enter your LDAP login attribute.
- For Property name enter uid.
- For Entity types enter the LDAP entity type.
- Click OK.
Select Add → Supported.
- For Name enter your LDAP attribute for full user name.
- For Property name enter sn.
- For Entity types enter the LDAP entity type.
- Click OK.
Select Add → Supported to configure a group name:
- For Name enter the LDAP attribute for your group name.
- For Property name enter cn.
- For Entity types enter the LDAP entity type.
- Click OK.
Enable ACL management with LDAP:
- Select Servers → Server Types → WebSphere application servers.
- Select the appropriate application server.
  In a clustered environment you must configure all the servers in the cluster in the same way.
- In the Configuration tab, under Server Infrastructure, click the Java and Process Management tab and select Process definition.
- In the Configuration tab, under Additional Properties, select Java Virtual Machine,
- In the Configuration tab, under Additional Properties, select Custom properties.
- Enter the required property-value pairs in the form. To enter each pair, click New, enter the property and its value, and click OK.
  Property-value pairs:
  - ibm.appcenter.ldap.vmm.active = true
  - ibm.appcenter.ldap.active = true
  - ibm.appcenter.ldap.cache.expiration.seconds = delay_in_seconds
- Enter the delay in seconds before the LDAP cache expires. If you do not enter a value, the default value is 86400, which is equal to 24 hours.
Changes to users and groups on the LDAP server become visible to the Application Center after a delay, which is specified by ibm.appcenter.ldap.cache.expiration.seconds. The Application Center maintains a cache of LDAP data and the changes become visible only after the cache expires. By default, the delay is 24 hours. If you do not want to wait for this delay to expire after changes to users or groups, you can call this command to clear the cache of LDAP data:
```
acdeploytool.sh -clearLdapCache -s serverurl -c context -u user -p password
```
See Using the stand-alone tool to clear the LDAP cache for details.

The following figure shows an example of custom properties with the correct settings.

ACL management for Application Center with LDAP on WebSphere Application server v8

What to do next

Save the configuration and restart the server.
To use the VMM API, you must assign the IdMgrReader role to the users who run the VMM code, or to the group owners of these users. You must assign this role to all users and groups who have the appcenteruser or appcenteradminroles.
In the was_home\bin directory, where was_home is the home directory of your WebSphere Application Server, run the wsadmin command.
After connecting with the WebSphere Application Server administrative user, run the following command:
```
 $AdminTask mapIdMgrGroupToRole {-roleName IdMgrReader -groupId your_LDAP_group_id}
```
Run the same command for all the groups mapped to the appcenteruser and appcenteradminroles. For individual users who are not members of groups, run the following command:
```
 $AdminTask mapIdMgrUserToRole {-roleName IdMgrReader -userId your_LDAP_user_id}
```
You can assign the special subject “All Authenticated in Application’s Realm” as roles for appcenteruser and appcenteradmin. If you choose to assign this special subject, IdMgrReader must be configured in the following way:
```
 $AdminTask mapIdMgrGroupToRole {-roleName IdMgrReader -groupId ALLAUTHENTICATED}
```
Enter exit to end wsadmin.

LDAP with Liberty profile

Use LDAP to authenticate users and to define the users and groups who can install mobile applications with the Application Center by using the JNDI environment.

Using LDAP with Liberty profile requires you to configure LDAP authentication and LDAP ACL management.

Configuring LDAP authentication for the Liberty profile
Configuring LDAP ACL management (Liberty profile)

Configuring LDAP authentication for the Liberty profile

You can configure LDAP authentication of users and groups in the server.xml file by defining an LDAP registry or, since WebSphere Application Server Liberty profile V8.5.5, a federated registry that uses several LDAP registries. Then, you map users and groups to Application Center roles. The mapping configuration is the same for LDAP authentication and basic authentication.

To open the server.xml descriptor file, enter {server.config.dir}/server.xml

Insert one or several LDAP registry definitions after the <httpEndpoint> element. Example for the LDAP registry:

<ldapRegistry baseDN="o=ibm.com" host="employees.com" id="Employees"
               ldapType="IBM Tivoli Directory Server" port="389" realm="AppCenterLdap"
               recursiveSearch="true">
   <idsFilters
       groupFilter="(&amp;(cn=%v)(|(objectclass=groupOfNames)(objectclass=groupOfUniqueNames))) " id="Employees"
       userFilter="(&amp;(emailAddress=%v)(objectclass=ibmPerson))"
       groupMemberIdMap="ibm-allGroups:member;ibm-allGroups:uniqueMember"
       userIdMap="*:emailAddress"/>
</ldapRegistry>

For information about the parameters that are used in this example, see the WebSphere Application Server V8.5 user documentation.

Insert a security role definition after each Application Center application definition.
- If you deployed WAR files: applicationcenter and appcenterconsole
- If you deployed an EAR file: applicationcenter
Group names unique within LDAP
This sample code shows how to use the group names ldapGroupForAppcenteruser and ldapGroupForAppcenteradmin when they exist and are unique within LDAP.
```
<application-bnd>
      <security-role name="appcenteruser" id="appcenteruser">
        <group name="ldapGroupForAppcenteruser" />
      </security-role>
      <security-role name="appcenteradmin" id="appcenteradmin">
        <group name="ldapGroupForAppcenteradmin" />
      </security-role>
</application-bnd>
```
Group names not unique within LDAP
This sample code shows how to code the mapping when the group names are not unique within LDAP. The groups must be specified with the access-id attribute. The access-id attribute must refer to the realm name that is used to specify the LDAP realm. In this sample code, the realm name is AppCenterLdap. The remainder of the access-id attribute specifies one of the LDAP groups named ldapGroup in a way that makes it unique.
```
<application-bnd>
      <security-role name="appcenteruser" id="appcenteruser">
        <group name="ldapGroup"
               id="ldapGroup"
               access-id="group:AppCenterLdap/CN=ldapGroup,OU=myorg,
                          DC=mydomain,DC=AD,DC=myco,DC=com"/>
      </security-role>
      ...
</application-bnd>
```
If applicable, use similar code to map the appcenteradmin role.

Configuring LDAP ACL management (Liberty profile)

You enable ACL management after you configure LDAP and map users and groups to Application Center roles. Only the simple type of LDAP authentication is supported.

To be able to define JNDI entries, the following feature must be defined in the server.xml file:

<feature>jndi-1.0</feature>

Add an entry for each property in the <server> section of the server.xml file. This entry should have the following syntax:

<jndiEntry jndiName="JNDI_property_name" value="property_value"/>

Where:

JNDI_property_name is the name of the property you are adding.
property_value is the value of the property you are adding.

Property	Description
ibm.appcenter.ldap.active	Set to true to enable LDAP; set to false to disable LDAP.
ibm.appcenter.ldap.federated.active	Since WebSphere Application Server Liberty profile V8.5.5: set to true to enable use of the federated registry; set to false to disable use of the federated registry, which is the default setting.
ibm.appcenter.ldap.connectionURL	LDAP connection URL.
ibm.appcenter.ldap.user.base	Search base of users.
ibm.appcenter.ldap.user.loginName	LDAP login attribute.
ibm.appcenter.ldap.user.displayName	LDAP attribute for the user name to be displayed, for example, a person’s full name.
ibm.appcenter.ldap.group.base	Search base of groups.
ibm.appcenter.ldap.group.name	LDAP attribute for the group name.
ibm.appcenter.ldap.group.uniquemember	LDAP attribute that identifies the members of a group.
ibm.appcenter.ldap.user.groupmembership	LDAP attribute that identifies the groups to which a user belongs.
ibm.appcenter.ldap.group.nesting	Management of nested groups: if nested groups are not managed, set the value to false.
ibm.appcenter.ldap.user.filter	LDAP user search filter for the attribute of user login name. Use %v as the placeholder for the login name attribute. This property is only required when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.displayName.filter	LDAP user search filter for the attribute of user display name. Use %v as the placeholder for the display name attribute. This property is only required when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.group.filter	LDAP group search filter. Use %v as the placeholder for the group attribute. This property is only required when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.security.sasl	The value of the security authentication mechanism when the LDAP external SASL authentication mechanism is required to bind to the LDAP server. The value depends on the LDAP server; usually, it is set to “EXTERNAL”.
ibm.appcenter.ldap.security.binddn	Property that identifies the distinguished name of the user permitted to search the LDAP directory. Use this property only if security binding is required.
ibm.appcenter.ldap.security.bindpwd	Property that identifies the password of the user who is allowed to search the LDAP directory. Use this property only if security binding is required. The password can be encoded with the “Liberty profile securityUtility” tool. Run the tool and then set the value of this property to the encoded password generated by the tool. The supported encoding types are xor and aes. Edit the Liberty profile server.xml file to check whether the classloader is enabled to load the JAR file that decodes the password.
ibm.appcenter.ldap.cache.expiration.seconds	elay in seconds before the LDAP cache expires. If no value is entered, the default value is 86400, which is equal to 24 hours. Changes to users and groups on the LDAP server become visible to the Application Center after a delay, which is specified by ibm.appcenter.ldap.cache.expiration.seconds. The Application Center maintains a cache of LDAP data and the changes only become visible after the cache expires. By default, the delay is 24 hours. If you do not want to wait for this delay to expire after changes to users or groups, you can call this command to clear the cache of LDAP data: `acdeploytool.sh -clearLdapCache -s serverurl -c context -u user -p password` See Using the stand-alone tool to clear the LDAP cache for details.
ibm.appcenter.ldap.referral	Property that indicates whether referrals are supported by the JNDI API. If no value is given, the JNDI API will not handle LDAP referrals. Possible values are: ignore: ignores referrals found in the LDAP server. follow: automatically follows any referrals found in the LDAP server. throw: causes an exception to occur for each referral found in the LDAP server.

See JNDI properties for Application Center for a complete list of LDAP properties that you can set.

Example of setting properties for ACL management with LDAP
This example shows the settings of the properties in the server.xml file required for ACL management with LDAP.

<jndiEntry jndiName="ibm.appcenter.ldap.active" value="true"/>
<jndiEntry jndiName="ibm.appcenter.ldap.connectionURL" value="ldap://employees.com:636"/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.loginName" value="uid"/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.base" value="dc=ibm,dc=com"/>
<jndiEntry jndiName="ibm.appcenter.ldap.group.base" value="dc=ibm,dc=com"/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.displayName" value="sn"/>
<jndiEntry jndiName="ibm.appcenter.ldap.group.name" value="cn"/>
<jndiEntry jndiName="ibm.appcenter.ldap.group.uniquemember" value="uniqueMember"/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.groupmembership" value="ibm-allGroups"/>
<jndiEntry jndiName="ibm.appcenter.ldap.cache.expiration.seconds" value="43200"/>
<jndiEntry jndiName="ibm.appcenter.ldap.security.sasl" value='"EXTERNAL"'/>
<jndiEntry jndiName="ibm.appcenter.ldap.referral" value='"follow"'/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.filter" value='"(&amp;(uid=%v)(objectclass=inetOrgPerson))"'/>
<jndiEntry jndiName="ibm.appcenter.ldap.user.displayName.filter" value='"(&amp;(cn=%v)(objectclass=inetOrgPerson))"'/>
<jndiEntry jndiName="ibm.appcenter.ldap.group.filter" value='"(&amp;(cn=%v)(|(objectclass=groupOfNames)(objectclass=groupOfUniqueNames)))"'/>

LDAP with Apache Tomcat

Configure the Apache Tomcat application server for LDAP authentication and configure security (Java™ Platform, Enterprise Edition) in the web.xml file of the Application Center.

To configure ACL management of the Application Center, configure LDAP for user authentication, map the Java™ EE roles of the Application Center to the LDAP roles, and configure the Application Center properties for LDAP authentication. Only the simple type of LDAP authentication is supported.

Configuration of LDAP authentication (Apache Tomcat)
Configuring LDAP ACL management (Apache Tomcat)

Configuration of LDAP authentication (Apache Tomcat)

Define the users who can access the Application Center console and the users who can log in with the mobile client by mapping Java™ Platform, Enterprise Edition roles to LDAP roles.

To configure ACL management of the Application Center, follow this process:

Configure LDAP for user authentication.
Map the Java Platform, Enterprise Edition (Java EE) roles of the Application Center to the LDAP roles.
Configure theApplication Center properties for LDAP authentication.

Restriction: Only the simple type of LDAP authentication is supported.

You configure the Apache Tomcat server for LDAP authentication and configure security (Java™ Platform, Enterprise Edition) in the web.xml file of theApplication Center Services web application (applicationcenter.war) and of the Application Center Console web application (appcenterconsole.war).

LDAP user authentication
You must configure a JNDIRealm in the server.xml file in the <Host> element. For more information about configuring a realm, see the Realm Component on the Apache Tomcat website.

Example of configuration on Apache Tomcat to authenticate against an LDAP server
This example shows how to configure user authentication on an Apache Tomcat server by comparing with the authorization of these users on a server enabled for LDAP authentication.

<Host appBase="webapps" autoDeploy="true" name="localhost" unpackWARs="true">
 ...
<Realm className="org.apache.catalina.realm.JNDIRealm"
       connectionURL="ldap://bluepages.ibm.com:389"
       userSubtree="true"
       userBase="ou=bluepages,o=ibm.com"
       userSearch="(emailAddress={0})"
       roleBase="ou=ibmgroups,o=ibm.com"
       roleName="cn"
       roleSubtree="true"
       roleSearch="(uniqueMember={0})"
       allRolesMode="authOnly"
       commonRole="appcenter"/>
 ...
</Host>

The value of connectionURL is the LDAP URL of your LDAP server.

The userSubtree, userBase, and userSearch attributes define how to use the name that is given to the Application Center in login form (in the browser message box) to match an LDAP user entry.

In the example, the definition of userSearch specifies that the user name is used to match the email address of an LDAP user entry.

The basis or scope of the search is defined by the value of the userBase attribute. In LDAP, an information tree is defined; the user base indicates a node in that tree.

Set the value of userSubtree to true; if it is set to false, the search runs only on the direct child nodes of the user base. It is important that the search penetrates the subtree and does not stop at the first level.

For authentication, you define only the userSubtree, userBase, and userSearch attributes. The Application Center also uses Java EE security roles. Therefore, you must map LDAP attributes to some Java EE roles. These attributes are used for mapping LDAP attributes to security roles:

roleBase
roleName
roleSubtree
roleSearch

In this example, the value of the roleSearch attribute matches all LDAP entries with a uniqueMember attribute whose value is the Distinguished Name (DN) of the authenticated user.

The roleBase attribute specifies a node in the LDAP tree below which the roles are defined.
The roleSubtree attribute indicates whether the LDAP search should search the entire subtree, whose root is defined by the value of roleBase, or only the direct child nodes.
The roleName attribute defines the name of the LDAP attribute.
The allRolesMode attribute specifies that you can use the asterisk (*) character as the value of role-name in the web.xml file. This attribute is optional.
The commonRole attribute adds a role that is shared by all authenticated users. This attribute is optional.

Mapping the Java EE roles of the Application Center to LDAP roles
After you define the LDAP request for the Java EE roles, you must change the web.xml file of the Application Center Services web application (applicationcenter.war) and of the Application Center Console web application (appcenterconsole.war) to map the Java EE roles of appcenteradmin and appcenteruser to the LDAP roles.

These examples, where LDAP users have LDAP roles, called MyLdapAdmin and MyLdapUser, show where and how to change the web.xml file. Replace the names MyLdapAdmin and MyLdapUser with the roles that are defined in your LDAP. Modify the following files:

tomcat_install_dir/webapps/appcenterconsole/WEB-INF/web.xml
tomcat_install_dir/webapps/applicationcenter/WEB-INF/web.xml

The security-role-ref element in the JAX_RS servlet

<servlet>
    <servlet-name>...</servlet-name>
    <servlet-class>...</servlet-class>
        <init-param>
            ...
        </init-param>
       <load-on-startup>1</load-on-startup>
       <security-role-ref>
           <role-name>appcenteradmin</role-name>
           <role-link>MyLdapAdmin</role-link>
       </security-role-ref>
       <security-role-ref>
           <role-name>appcenteruser</role-name>
           <role-link>MyLdapUser</role-link>
       </security-role-ref>
</servlet>

The security-role element

<security-role>
    <role-name>MyLdapAdmin</role-name>
</security-role>
<security-role>
    <role-name>MyLdapUser</role-name>
</security-role>

The auth-constraint element
After you edit the security-role-ref and the security-role elements, you can use the roles that are defined in the auth-constraint elements to protect the web resources. Edit these roles for the appcenteradminConstraint element in both the web.xml file of both appcenterconsole and applicationcenter, and for the appcenteruserConstraint element in the appcenterconsole web.xml file.

<security-constraint>
        <display-name>appcenteradminConstraint</display-name>
        <web-resource-collection>
            ...
        </web-resource-collection>
        <auth-constraint>
            <role-name>MyLdapAdmin</role-name>
        </auth-constraint>
        <user-data-constraint>
            ...
        </user-data-constraint>
</security-constraint>

and

<security-constraint>
        <display-name>appcenteruserConstraint</display-name>
        <web-resource-collection>
            ...
        </web-resource-collection>
        <auth-constraint>
            <role-name>MyLdapUser</role-name>
        </auth-constraint>
        <user-data-constraint>
            ...
        </user-data-constraint>
</security-constraint>

Configuring LDAP ACL management (Apache Tomcat)

Use LDAP to define the users and groups who can install mobile applications with the Application Center by defining the Application Center LDAP properties through JNDI.

To configure LDAP ACL management of the Application Center; add an entry for each property in the <context> section of the Persistent Application Center Services application in the server.xml file. This entry should have the following syntax:

<Environment name="JNDI_property_name" value="property_value" type="java.lang.String" override="false"/>

Where:

JNDI_property_name is the name of the property you are adding.
property_value is the value of the property you are adding.

Property	Description
ibm.appcenter.ldap.active	Set to true to enable LDAP; set to false to disable LDAP.
ibm.appcenter.ldap.federated.active	Since WebSphere Application Server Liberty profile V8.5.5: set to true to enable use of the federated registry; set to false to disable use of the federated registry, which is the default setting.
ibm.appcenter.ldap.connectionURL	LDAP connection URL.
ibm.appcenter.ldap.user.base	Search base of users.
ibm.appcenter.ldap.user.loginName	LDAP login attribute.
ibm.appcenter.ldap.user.displayName	LDAP attribute for the user name to be displayed, for example, a person’s full name.
ibm.appcenter.ldap.group.base	Search base of groups.
ibm.appcenter.ldap.group.name	LDAP attribute for the group name.
ibm.appcenter.ldap.group.uniquemember	LDAP attribute that identifies the members of a group.
ibm.appcenter.ldap.user.groupmembership	LDAP attribute that identifies the groups to which a user belongs.
ibm.appcenter.ldap.group.nesting	Management of nested groups: if nested groups are not managed, set the value to false.
ibm.appcenter.ldap.user.filter	LDAP user search filter for the attribute of user login name. Use %v as the placeholder for the login name attribute. This property is only required when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.displayName.filter	LDAP user search filter for the attribute of user display name. Use %v as the placeholder for the display name attribute. This property is only required when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.group.filter	LDAP group search filter. Use %v as the placeholder for the group attribute. This property is only required when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.security.sasl	The value of the security authentication mechanism when the LDAP external SASL authentication mechanism is required to bind to the LDAP server. The value depends on the LDAP server; usually, it is set to “EXTERNAL”.
ibm.appcenter.ldap.security.binddn	Property that identifies the distinguished name of the user permitted to search the LDAP directory. Use this property only if security binding is required.
ibm.appcenter.ldap.security.bindpwd	Property that identifies the password of the user who is allowed to search the LDAP directory. Use this property only if security binding is required. The password can be encoded with the “Liberty profile securityUtility” tool. Run the tool and then set the value of this property to the encoded password generated by the tool. The supported encoding types are xor and aes. Edit the Liberty profile server.xml file to check whether the classloader is enabled to load the JAR file that decodes the password.
ibm.appcenter.ldap.cache.expiration.seconds	elay in seconds before the LDAP cache expires. If no value is entered, the default value is 86400, which is equal to 24 hours. Changes to users and groups on the LDAP server become visible to the Application Center after a delay, which is specified by ibm.appcenter.ldap.cache.expiration.seconds. The Application Center maintains a cache of LDAP data and the changes only become visible after the cache expires. By default, the delay is 24 hours. If you do not want to wait for this delay to expire after changes to users or groups, you can call this command to clear the cache of LDAP data: `acdeploytool.sh -clearLdapCache -s serverurl -c context -u user -p password` See Using the stand-alone tool to clear the LDAP cache for details.
ibm.appcenter.ldap.referral	Property that indicates whether referrals are supported by the JNDI API. If no value is given, the JNDI API will not handle LDAP referrals. Possible values are: ignore: ignores referrals found in the LDAP server. follow: automatically follows any referrals found in the LDAP server. throw: causes an exception to occur for each referral found in the LDAP server.

See JNDI properties for Application Center for a complete list of LDAP properties that you can set.

The example shows properties defined in the server.xml file.

<Environment name="ibm.appcenter.ldap.active" value="true" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.connectionURL" value="ldaps://employees.com:636" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.user.base" value="dc=ibm,dc=com" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.user.loginName" value="uid" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.user.displayName" value="cn" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.user.groupmembership" value="ibm-allGroups" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.group.base" value="dc=ibm,dc=com" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.group.name" value="cn" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.group.uniquemember" value="uniquemember" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.cache.expiration.seconds" value="43200" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.security.sasl" value="EXTERNAL" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.security.referral" value="follow" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.user.filter" value="(&amp;(uid=%v)(objectclass=inetOrgPerson))" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.user.displayName.filter" value="(&amp;(cn=%v)(objectclass=inetOrgPerson))" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.ldap.group.filter" value="(&amp;(cn=%v)(|(objectclass=groupOfNames)(objectclass=groupOfUniqueNames)))" type="java.lang.String" override="false"/>

Configuring properties of DB2 JDBC driver in WebSphere Application Server

Add some JDBC custom properties to avoid DB2 exceptions from a WebSphere Application Server that uses the IBM DB2 database.

When you use WebSphere Application Server with an IBM DB2 database, this exception could occur:

Invalid operation: result set is closed. ERRORCODE=-4470, SQLSTATE=null

To avoid such exceptions, you must add custom properties in WebSphere Application Server at the Application Center data source level.

Log in to the WebSphere Application Server administration console.
Select Resources → JDBC → Data sources → Application Center DataSource name → Custom properties and click New.
In the Name field, enter allowNextOnExhaustedResultSet.
In the Value field, type 1.
Change the type to java.lang.Integer.
Click OK.
Click New.
In the Name field, enter resultSetHoldability.
In the Value field, type 1.
Change the type to java.lang.Integer.
Click OK and save your changes.

Managing the DB2 transaction log size

When you upload an application that is at least 40 MB with Persistent Mobile Foundation Application Center console, you might receive a transaction log full error.

The following system output is an example of the transaction log full error code.

DB2 SQL Error: SQLCODE=-964, SQLSTATE=57011

The content of each application is stored in the Application Center database.

The active log files are defined in number by the LOGPRIMARY and LOGSECOND database configuration parameters, and in size by the LOGFILSIZ database configuration parameter. A single transaction cannot use more log space than LOGFILSZ * (LOGPRIMARY + LOGSECOND) * 4096 KB.

The DB2 GET DATABASE CONFIGURATION command includes information about the log file size, and the number of primary and secondary log files.

Depending on the largest size of the Persistent Mobile Foundation application that is deployed, you might need to increase the DB2 log space.

Using the DB2 update db cfg command, increase the LOGSECOND parameter. Space is not allocated when the database is activated. Instead, the space is allocated only as needed.

Defining the endpoint of the application resources

When you add a mobile application from the Application Center console, the server-side component creates Uniform Resource Identifiers (URI) for the application resources (package and icons). The mobile client uses these URI to manage the applications on your device.

To manage the applications on your device, the Application Center console must be able to locate the Application Center REST services and to generate the required number of URI that enable the mobile client to find the Application Center REST services.

By default, the URI protocol, host name, and port are the same as those defined in the web application server used to access the Application Center console; the context root of the Application Center REST services is applicationcenter. When the context root of the Application Center REST services is changed or when the internal URI of the web application server is different from the external URI that can be used by the mobile client, the externally accessible endpoint (protocol, host name, and port) of the application resources must be defined by configuring the web application server. (Reasons for separating internal and external URI could be, for example, a firewall or a secured reverse proxy that uses HTTP redirection.)

The following figure shows a configuration with a secured reverse proxy that hides the internal address (192.168…). The mobile client must use the external address (appcntr.net).

Configuration with secured reverse proxy

Endpoint properties

Property name	Purpose	Example
ibm.appcenter.services.endpoint	This property enables the Application Center console to locate the Application Center REST services. The value of this property must be specified as the external address and context root of the applicationcenter.war web application. You can use the asterisk () character as wildcard to specify that the Application Center REST services use the same value as the Application Center console. For example: ://:/appcenter means use the same protocol, host, and port as the Application Center console, but use appcenter as context root. This property must be specified for the Application Center console application.	https://appcntr.net:443/applicationcenter
ibm.appcenter.proxy.protocol	This property specifies the protocol required for external applications to connect to the Application Center.	https
ibm.appcenter.proxy.host	This property specifies the host name required for external applications to connect to the Application Center.	appcntr.net
ibm.appcenter.proxy.port	This property specifies the port required for external applications to connect to the Application Center.	443

Configuring the endpoint of application resources (full profile)

For the WebSphere Application Server full profile, configure the endpoint of the application resources in the environment entries of the Application Center services and the Application Center console applications. The procedure differs depending on whether you deployed WAR files or an EAR file.

If you deployed WAR files

Follow this procedure when you must change the URI protocol, host name, and port used by the mobile client to manage the applications on your device. Use JNDI environment entries.

For a complete list of JNDI properties, see JNDI properties for Application Center.

Log in to the WebSphere Application Server console.
Select Applications → Application Types → WebSphere enterprise applications.
Click PMF Application Center Services.
In the Web Module Properties section, select Environment entries for Web modules.
Assign the appropriate values for the following environment entries:
- For ibm.appcenter.proxy.host, assign the host name.
- For ibm.appcenter.proxy.port, assign the port number.
- For ibm.appcenter.proxy.protocol, assign the external protocol.
- Click OK and save the configuration.
Select Applications → Application Types → WebSphere enterprise applications.
Click PMF Application Center Console.
In the Web Module Properties section, select Environment entries for Web modules.
For ibm.appcenter.services.endpoint, assign the full URI of the Application Center REST services (the URI of the applicationcenter.war file).
- In a scenario with a firewall or a secured reverse proxy, this URI must be the external URI and not the internal URI inside the local LAN.
- You can use the asterisk (*) character as wildcard to specify that the Application Center REST services use the same value as the Application Center console.
For example: *://*:*/appcenter means use the same protocol, host, and port as the Application Center console, but use appcenter as the context root.
Click OK and save the configuration.

If you deployed an EAR file

Log in to the WebSphere Application Server console.
Select Applications → Application Types → WebSphere enterprise applications.
Click AppCenterEAR.
In the Web Module Properties section, select Environment entries for Web modules.
Assign the appropriate values for the following environment entries:
- For ibm.appcenter.proxy.host, assign the host name.
- For ibm.appcenter.proxy.port, assign the port number.
- For ibm.appcenter.proxy.protocol, assign the external protocol.
For ibm.appcenter.services.endpoint, assign the full URI of the Application Center REST services (the URI of the applicationcenter.war file).
- In a scenario with a firewall or a secured reverse proxy, this URI must be the external URI and not the internal URI inside the local LAN.
- You can use the asterisk (*) character as wildcard to specify that the Application Center REST services use the same value as the Application Center console.
For example: *://*:*/appcenter means use the same protocol, host, and port as the Application Center console, but use appcenter as the context root.
Click OK and save the configuration.

Configuring the endpoint of the application resources (Liberty profile)

For the Liberty profile, configure the endpoint of the application resources through the JNDI environment.

Follow this procedure when you must change the URI protocol, host name, and port used by the Application Center client to manage the applications on your device.

Edit the server.xml file. To be able to define JNDI entries, the <feature> element must be defined correctly in the server.xml file:

<feature>jndi-1.0</feature>

Add an entry for each property in the <server> section of the server.xml file. This entry should have the following syntax:

<jndiEntry jndiName="JNDI_property_name" value="property_value"/>

Where:

JNDI_property_name is the name of the property that you are adding.
property_value is the value of the property that you are adding.

Property	Description
ibm.appcenter.services.endpoint	The URI of the Application Center REST services. In a scenario with a firewall or a secured reverse proxy, this URI must be the external URI and not the internal URI inside the local LAN.
ibm.appcenter.proxy.protocol The protocol of the application resources URI. This property is optional. It is only needed if the protocol of the external and of the internal URI are different.
ibm.appcenter.proxy.host	The host name of the application resources URI.
ibm.appcenter.proxy.port	The port of the application resources URI. This property is optional. It is only needed if the protocol of the external and of the internal URI are different.

For a complete list of LAPD properties that you can set, see JNDI properties for Application Center.

Example of setting properties for configuring the endpoint

This example shows the settings of the properties in the server.xml file required for configuring the endpoint of the application resources.

<jndiEntry jndiName="ibm.appcenter.services.endpoint" value=" https://appcntr.net:443/applicationcenter" />
<jndiEntry jndiName="ibm.appcenter.proxy.protocol" value="https" />
<jndiEntry jndiName="ibm.appcenter.proxy.host" value="appcntr.net" />
<jndiEntry jndiName="ibm.appcenter.proxy.port"  value=" 443"/>

You can use the asterisk (*) character as wildcard to specify that the Application Center REST services use the same value as the Application Center console. For example: *://*:*/appcenter means use the same protocol, host, and port as the Application Center console, but use appcenter as context root.

Configuring the endpoint of the application resources (Apache Tomcat)

For the Apache Tomcat server, configure the endpoint of the application resources in the server.xml file.

Follow this procedure when you must change the URI protocol, host name, and port used by the Application Center client to manage the applications on your device.

Edit the server.xml file in the conf directory of your Apache Tomcat installation.
Add an entry for each property in the <context> section of the corresponding application. This entry should have the following syntax:

<Environment name="JNDI_property_name" value="property_value" type="property_type" override="false"/>

Where:

JNDI_property_name is the name of the property you are adding.
property_value is the value of the property you are adding.
property_type is the type of the property you are adding.

Property	Type	Description
ibm.appcenter.services.endpoint	java.lang.String	The URI of the Application Center REST services (applicationcenter.war). In a scenario with a firewall or a secured reverse proxy, this URI must be the external URI and not the internal URI inside the local LAN.
ibm.appcenter.proxy.protocol	java.lang.String	The protocol of the application resources URI. This property is optional. It is only needed if the protocol of the external and of the internal URI are different.
ibm.appcenter.proxy.host	java.lang.String	The host name of the application resources URI.
ibm.appcenter.proxy.port	java.lang.Integer	The port of the application resources URI. This property is optional. It is only needed if the protocol of the external and of the internal URI are different.

For a complete list of JNDI properties that you can set, see JNDI properties for PMF Application Center.

Example of setting server.xml properties for configuring the endpoint

This example shows the settings of the properties in the server.xml file required for configuring the endpoint of the application resources.

In the <context> section of the Application Center console application:

<Environment name="ibm.appcenter.services.endpoint" value="https://appcntr.net:443/applicationcenter" type="java.lang.String" override="false"/>

In the <context> section of the Application Center services application:

<Environment name="ibm.appcenter.services.endpoint" value="https://appcntr.net:443/applicationcenter" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.proxy.protocol" value="https" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.proxy.host" value="appcntr.net" type="java.lang.String" override="false"/>
<Environment name="ibm.appcenter.proxy.port"  value="443" type="java.lang.Integer" override="false"/>

Configuring Secure Sockets Layer (SSL)

Learn about configuring SSL for the Application Center on supported application servers and the limitations of certificate verification on mobile operating systems.

You can configure the Application Center with SSL or without SSL, unless you intend to install applications on iOS devices. For iOS applications, you must configure the Application Center server with SSL.

SSL transmits data over the network in a secured channel. You must purchase an official SSL certificate from an SSL certificate authority. The SSL certificate must be compatible with Android and iOS. Self-signed certificates do not work with the Application Center.

When the client accesses the server through SSL, the client verifies the server through the SSL certificate. If the server address matches the address that is filed in the SSL certificate, the client accepts the connection. For the verification to be successful, the client must know the root certificate of the certificate authority. Many root certificates are preinstalled on Android and iOS devices. The exact list of pre-installed root certificates varies between versions of mobile operating systems.

For information about the certificates supported on mobile operating system versions, consult the SSL certificate authority.

If the SSL certificate verification fails, a normal web browser requests confirmation to contact an untrusted site. The same behavior occurs when you use a self-signed certificate that was not purchased from a certificate authority. When mobile applications are installed, this control is not performed by a normal web browser, but by operating system calls.

Some versions of Android and iOS do not support this confirmation dialog in system calls. This limitation is a reason to avoid self-signed certificates or SSL certificates that are not suited to mobile operating systems. On Android and iOS you can install a self-signed CA certificate on the device to enable the device to handle system calls regarding this self-signed certificate. This practice is not appropriate for Application Center in a production environment, but it can be suitable during the testing period. For details, see Managing and installing self-signed CA certificates in an Application Center test environment below.

Create a request to a certificate authority; in the WebSphere administrative console, select Security → SSL certificate and key management → Key stores and certificates → keystore → Personal certificate requests → New, where keystore identifies your keystore.

The request is sent to the certificate authority.
When you receive the SSL certificate, import it and the corresponding chain certificate into your keystore by following the instructions provided by the certificate authority. In the WebSphere administrative console, you can find the corresponding option in Security → SSL certificate and key management → Manage endpoint security configurations → node SSL settings → Key stores and certificates → keystore → Personal certificates → certificate → Receive a certificate from a certificate authority.

Where:
- node SSL settings shows the SSL settings of the nodes in your configuration.
- keystore identifies your keystore.
- certificate identifies the certificate that you received.
Create an SSL configuration. See the instructions in the user documentation that corresponds to the version of the WebSphere Application Server full profile that supports your applications.

You can find configuration details in the WebSphere administrative console at Security → SSL certificate and key management → Manage endpoint security configurations → SSL Configurations.

Configuring SSL for Liberty profile

Create a keystore, import the Secure Socket Layer (SSL) certificate, and edit the server.xml file to configure SSL on Liberty profile.
Follow the steps in this procedure to configure SSL on Liberty profile.

Create a keystore for your web server; use the securityUtility with the createSSLCertificate option.
Import the SSL certificate and the corresponding chain certificate into your keystore by following the instructions provided by the certificate authority.

Enable the ssl-1.0 Liberty feature in the server.xml file.

<featureManager>
   <feature>ssl-1.0</feature>
</featureManager>

Add the keystore service object entry to the server.xml file. The keyStore element is called defaultKeyStore and contains the keystore password. For example:
```
<keyStore id="defaultKeyStore" location="/path/to/myKeyStore.p12"
       password="myPassword" type="PKCS12"/>
```
Make sure that the value of the httpEndpoint element in the server.xml file defines the httpsPort attribute. For example:
```
<httpEndpoint id="defaultHttpEndpoint” host="*" httpPort="9080” httpsPort="9443" >
```
Restart the web server. Now you can access the web server by https://myserver:9443/...

Configuring SSL for Apache Tomcat

Create a keystore, import the Secure Socket Layer (SSL) certificate, and edit the conf/server.xml file to define a connector for SSL on Apache Tomcat. Follow the steps in this procedure to configure SSL on Apache Tomcat. See SSL Configuration HOW-TO for more details and examples of configuring SSL for Apache Tomcat.

Create a keystore for your web server. You can use the Java™ keytool command to create a keystore.
```
keytool -genkey -alias tomcat -keyalg RSA -keystore /path/to/keystore.jks
```
Import the SSL certificate and the corresponding chain certificate into your keystore by following the instructions provided by the certificate authority.

Edit the conf/server.xml file to define a connector to use SSL. This connector must point to your keystore.

<Connector port="8443" protocol="HTTP/1.1" SSLEnabled="true"
            maxThreads="150" scheme="https" secure="true"
            clientAuth="false" sslProtocol="TLS"
            keystoreFile="/path/to/keystore.jks"
            keystorePass="mypassword" />

Restart the web server. Now you can access the web server by https://myserver:8443/...

Managing and installing self-signed CA certificates in an PMF Application Center test environment

Use self-signed certificate authority (CA) certificates in test environments to install applications with Application Center on a mobile device from a secured server.

Uploading or deleting a certificate
When you install the Application Center mobile client from OTA (the bootstrap page), the device user must upload and install the self-signed CA file before the Application Center mobile client is installed.

When you use Application Center for a test installation, the administrator might not have a real Secure Sockets Layer (SSL) certificate available. You might want to use a self-signed CA certificate. Such certificates work if they get installed on the device as root certificate. As an administrator, you can easily distribute self-signed CA certificates to devices.

The following procedure focuses mostly on the iOS and Android environments. Support for X.509 certificates comes from the individual mobile platforms, not from Persistent Mobile Foundation. For more information about specific requirements for X.509 certificates, see the documentation of each mobile platform.

Managing self-signed certificates: in your role of administrator of Application Center, you can access the list of registered self-signed CA certificates to upload or delete certificates.

To display Application Center settings, click the gear icon Icon to access Application Center settings.
To display the list of registered certificates, select Self Signed Certificates.
Upload or delete a certificate.
- To upload a self-signed CA certificate, in the Application Center console, click Upload a certificate and select a certificate file.
Note: The certificate file must be in PEM file format. Typical file name suffixes for this type of file are .pem, .key, .cer, .cert. The certificate must be a self-signed one, that is, the values of the Issuer and Subject fields must be the same. And the certificate must be a CA certificate, that is, it must have the X509 extension named BasicConstraint set to CA:TRUE.

To delete a certificate, click the trash can icon on the right of the certificate file name in the list.

Installing a self-signed CA certificate on a device
Registered self-signed CA certificates are available through the bootstrap page at http://hostname:portnumber/appcenterconsole/installers.html.

Where:

hostname is the name of the server that hosts the Application Center console.
portnumber is the corresponding port number.

Click the SSL Certificates tab.
To display the details of a certificate, select the appropriate registered certificate.
To download and install the certificate on the device, click Install.

JNDI properties for Application Center

You can configure some JNDI properties for Application Center.

Property	Description
appcenter.database.type	The database type, which is required only when the database is not specified in appcenter.jndi.name.
appcenter.jndi.name	The JNDI name of the database. This parameter is the normal mechanism to specify the database. The default value is java:comp/env/jdbc/AppCenterDS.
appcenter.openjpa.ConnectionDriverName	The fully qualified class name of the database connection driver class. This property is needed only when the database is not specified in appcenter.jndi.name.
appcenter.openjpa.ConnectionPassword	The password for the database connection. Set this property only when the database is not specified in appcenter.jndi.name.
appcenter.openjpa.ConnectionURL	The URL for the database connection driver class. Set this property only when the database is not specified in appcenter.jndi.name.
appcenter.openjpa.ConnectionUserName	The user name for the database connection. Set this property only when the database is not specified in appcenter.jndi.name.
ibm.appcenter.apns.p12.certificate.isDevelopmentCertificate	Set this property to true to specify whether the certificate that enables Application Center to send push notifications about updates of iOS applications is a development certificate. Set the property to false if it is not a development certificate. See Configuring the Application Center server for connection to Apple Push Notification Services.
ibm.appcenter.apns.p12.certificate.location	The path to the file of the development certificate that enables Application Center to send push notifications about updates of iOS applications. For example, /Users/someUser/someDirectory/apache-tomcat/conf/AppCenter_apns_dev_cert.p12. See Configuring the Application Center server for connection to Apple Push Notification Services.
ibm.appcenter.apns.p12.certificate.password	The password of the certificate that enables Application Center to send push notifications about updates of iOS applications. See Configuring the Application Center server for connection to Apple Push Notification Services.
ibm.appcenter.forceUpgradeDBTo60	The database is automatically updated when the Application Center web application starts. If you want to repeat this update, you can set this parameter to true and start the web application again. Later you can reset this parameter to false.
ibm.appcenter.gcm.signature.googleapikey	The Google API key that enables Application Center to send push notifications about updates for Android applications. For example, AIxaScCHg0VSGdgfOZKtzDJ44-oi0muUasMZvAs. See Configuring the Application Center server for connection to Google Cloud Messaging.
ibm.appcenter.ios.plist.onetimeur	Specifies whether URLs stored in iOS plist manifests use the one-time URL mechanism without credentials. If you set this property to true, the security level is medium, because one-time URLs are generated with a cryptographic mechanism so that nobody can guess the URL but do not require the user to log in. Setting this property to false provides maximal security, because the user is then required to log in for each URL. However, requesting the user to log in multiple times when you install an iOS application can degrade the user experience. See Installing the client on an iOS mobile device.
ibm.appcenter.ldap.active	Specifies whether Application Center is configured for LDAP. Set this property to true to enable LDAP or to false to disable LDAP. See Managing users with LDAP.
ibm.appcenter.ldap.cache.expiration.seconds	The Application Center maintains a cache of LDAP data and the changes become visible only after the cache expires. Specify the number of seconds during which an entry in the LDAP cache is valid. Set this property to a value greater than 3600 (1 hour) to reduce the amount of LDAP requests. If no value is entered, the default value is 86400, which is equal to 24 hours. If you need to clear the cache of LDAP data manually, enter this command: `acdeploytool.sh -clearLdapCache -s serverurl -c context -u user -p password`. See Using the stand-alone tool to clear the LDAP cache.
ibm.appcenter.ldap.connectionURL	The URL to access the LDAP server when no Virtual Member Manager (VMM) is used. See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.federated.active	Specifies whether Application Center is configured for LDAP with federated repositories. Since WebSphere Application Server Liberty profile V8.5.5., set this property to true to enable use of the federated registry. Set this property to false to disable use of the federated registry, which is the default setting. See Managing users with LDAP.
ibm.appcenter.ldap.group.base	The search base to find groups when you use LDAP without Virtual Member Manager (VMM). See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.group.filter	LDAP group search filter. Use %v as the placeholder for the group attribute. This property is only required when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.group.name	The group name attribute when you use LDAP without Virtual Member Manager (VMM). See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.group.nesting	Specifies whether the LDAP contains nested groups (that is, groups in groups) when you use LDAP without Virtual Member Manager (VMM). Setting this property to false speeds up LDAP access because the groups are not searched recursively. See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.group.uniquemember	Specifies the members of a group when you use LDAP without Virtual Member Manager (VMM). This property is the inverse of ibm.appcenter.ldap.user.groupmembership. See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.referral	Specifies whether referrals are supported by the JNDI API. If no value is specified, the JNDI API does not handle LDAP referrals. Here are the possible values: ignore: Ignores referrals that are found in the LDAP server. follow: Automatically follows any referrals that are found in the LDAP server. throw: Causes an exception to occur for each referral found in the LDAP server.
ibm.appcenter.ldap.security.binddn	The distinguished name of the user that is allowed to search the LDAP directory. Use this property only if security binding is required.
ibm.appcenter.ldap.security.bindpwd	The password of the user that is permitted to search the LDAP directory. Use this property only if security binding is required. The password can be encoded with the Liberty profile securityUtility tool. Run the tool and then set the value of this property to the encoded password that is generated by the tool. Edit the Liberty profile server.xml file to check whether the classloader is enabled to load the JAR file that decodes the password. See Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.security.sasl	Specifies the security authentication mechanism when the LDAP external SASL authentication mechanism is required to bind to the LDAP server. The value depends on the LDAP server and it is typically set to EXTERNAL. When this property is set, security authentication is required to connect to LDAP without Virtual Member Manager (VMM). See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.user.base	The search base to find users when you use LDAP without Virtual Member Manager (VMM). See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.user.displayName	The display name attribute, such as the user’s real name, when you use LDAP without Virtual Member Manager (VMM). See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.displayName.filter	LDAP user search filter for the attribute of ibm.appcenter.ldap.user.displayName. Use %v as the placeholder for the display name attribute. This property is required only when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.user.filter	LDAP user search filter for the attribute of ibm.appcenter.ldap.user.loginName. Use %v as the placeholder for the login name attribute. This property is required only when LDAP users and groups are defined in the same subtree; that is, when the properties ibm.appcenter.ldap.user.base and ibm.appcenter.ldap.group.base have the same value.
ibm.appcenter.ldap.user.groupmembership	Specifies the groups of a member when you use LDAP without Virtual Member Manager (VMM). This property is the inverse of ibm.appcenter.ldap.group.uniquemember. This property is optional, but if it is specified, LDAP access is faster. See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.user.loginName	The login name attribute when you use LDAP without Virtual Member Manager (VMM). See Configuring LDAP ACL management (Liberty profile) and Configuring LDAP ACL management (Apache Tomcat).
ibm.appcenter.ldap.vmm.active	Set this property to true to specify that LDAP is done through Virtual Member Manager (VMM), or to false otherwise. See Configuring LDAP ACL management for WebSphere Application Server V8.x.
ibm.appcenter.ldap.vmm.adminpwd	The password when LDAP is done through Virtual Member Manager (VMM). See Configuring LDAP ACL management for WebSphere Application Server V8.x.
ibm.appcenter.ldap.vmm.adminuser	The user when LDAP is done through Virtual Member Manager (VMM). See Configuring LDAP ACL management for WebSphere Application Server V8.x.
ibm.appcenter.logging.formatjson	This property has an effect only when ibm.appcenter.logging.tosystemerror is set to true. If this property is enabled, it formats JSON responses in logging messages that are directed to System.Error. Setting this property is helpful when you debug the server.
ibm.appcenter.logging.tosystemerror	Specifies whether all logging messages are also directed to System.Error. Setting this property is helpful when you debug the server.
ibm.appcenter.openjpa.Log	This property is passed to OpenJPA and enables JPA logging. For details, see the Apache OpenJPA User’s Guide.
ibm.appcenter.proxy.host	If the Application Center server is behind a firewall or reverse proxy, this property specifies the address of the host. Setting this property allows a user outside the firewall to reach the Application Center server. Typically, this property is the address of the proxy. See Defining the endpoint of the application resources.
ibm.appcenter.proxy.port	If the Application Center server is behind a firewall or reverse proxy, this property specifies the address of the host. Setting this property allows a user outside the firewall to reach the Application Center server. Typically, this property is the port of the proxy, for example 443. It is needed only if the protocol of the external URI and the protocol of the internal URI are different. See Defining the endpoint of the application resources.
ibm.appcenter.proxy.protocol	If the Application Center server is behind a firewall or reverse proxy, this property specifies the protocol (http or https). Setting this property allows a user outside the firewall to reach the Application Center server. Typically, this property is set to the protocol of the proxy. For example, appcntr.net. This property is needed only if the protocol of the external and of the internal URI are different. See Defining the endpoint of the application resources.
ibm.appcenter.proxy.scheme	This property is just an alternative name for ibm.appcenter.proxy.protocol.
ibm.appcenter.push.schedule.period.amount	Specifies the time schedule when you send push notifications of application updates. When applications are frequently changed on the server, set this property to send batches of notifications. For example, send all notifications that happened within the past hour, instead of sending each individual notification.
ibm.appcenter.push.schedule.period.unit	Specifies the unit for the time schedule when you send push notifications of application updates.
ibm.appcenter.services.endpoint	Enables the Application Center console to locate the Application Center REST services. Specify the external address and context root of the applicationcenter.war web application. In a scenario with a firewall or a secured reverse proxy, this URI must be the external URI and not the internal URI inside the local LAN. For example, https://appcntr.net:443/applicationcenter. See Defining the endpoint of the application resources.
ibm.appcenter.services.iconCacheMaxAge	Specifies the number of seconds during which cached icons remain valid for the Application Center console and the client. Application icons rarely change, therefore they are cached. Specify values larger than 600 (10 min) to reduce the amount of data transfer for the icons.
mfp.jndi.configuration	Optional. If the JNDI configuration is injected into the WAR files or provided as a shared library, the value of this property is the name of the JNDI configuration. You can also specify this value as a system property.
mfp.jndi.file	Optional. If the JNDI configuration is stored as an external file, the value of this property is the path of a file that describes the JNDI configuration. You can also specify this value as a system property.

Configuring WebSphere Application Server to support applications in public app stores

Configure WebSphere Application Server full profile and Liberty profile before access to public app stores through application links, because of the use of SSL connections.

The constraint imposed by the use of SSL connections requires the root certificates of public app stores to exist in the WebSphere truststore before you can use application links to access these public stores. The configuration requirement applies to both WebSphere Application Server full profile and Liberty profile.

The root certificate of Google play must be imported into the WebSphere truststore before you can use application links to Google play.
The root certificate of Apple iTunes must be imported into the WebSphere truststore before you can use application links to iTunes.

Configuring WebSphere Application Server to support applications in Google play

Configure WebSphere Application Server to enable links in the Application Center console to access applications in Google play.

Follow this procedure to import the root certificate of Google play into the WebSphere truststore. You must import this certificate before the Application Center can support links to applications stored in Google Play.

Log in to the WebSphere Application Server console and navigate to Security → SSL certificate and key management → Key stores and certificates → NodeDefaultTrustStore → Signer certificates.
Click Retrieve from port.
In the Host field, enter play.google.com.
In the Port field, enter 443.
In the Alias field, enter play.google.com.
Click Retrieve signer information.
Click OK and save the configuration.

Configuring WebSphere Application Server to support applications in Apple iTunes

Configure WebSphere Application Server to enable links in the Application Center console to access applications in Apple iTunes.

Follow this procedure to import the root certificate of Apple iTunes into the WebSphere truststore. You must import this certificate before the Application Center can support links to applications stored in iTunes.

Log in to the WebSphere Application Server console and navigate to Security → SSL certificate and key management → Key stores and certificates → NodeDefaultTrustStore → Signer certificates.
Click Retrieve from port.
In the Host field, enter itunes.apple.com.
In the Port field, enter 443.
In the Alias field, enter itunes.apple.com.
Click Retrieve signer information.
Click OK and save the configuration.

Configuring Liberty profile when IBM JDK is used

Configure Liberty profile to use default JSSE socket factories instead of SSL socket factories of WebSphere Application Server when IBM JDK is used.

The purpose is to configure the IBM JDK SSL factories to be compatible with Liberty profile. This configuration is required only when IBM JDK is used. The configuration does not apply for use of Oracle JDK. By default, IBM JDK uses the SSL socket factories of WebSphere Application Server. These factories are not supported by Liberty profile.

Exception when WebSphere Application Server SSL socket factories are used

If you use the IBM JDK of WebSphere Application Server, this exception could occur because this JDK uses SSL socket factories that are not supported by the Liberty profile. In this case, follow the requirements documented in Troubleshooting tips.

java.net.SocketException: java.lang.ClassNotFoundException: Cannot find the specified class com.ibm.websphere.ssl.protocol.SSLSocketFactory
      at javax.net.ssl.DefaultSSLSocketFactory.a(SSLSocketFactory.java:11)
      at javax.net.ssl.DefaultSSLSocketFactory.createSocket(SSLSocketFactory.java:6)
      at com.ibm.net.ssl.www2.protocol.https.c.afterConnect(c.java:161)
      at com.ibm.net.ssl.www2.protocol.https.d.connect(d.java:36)
      at sun.net.www.protocol.http.HttpURLConnection.getInputStream(HttpURLConnection.java:1184)
      at java.net.HttpURLConnection.getResponseCode(HttpURLConnection.java:390)
      at com.ibm.net.ssl.www2.protocol.https.b.getResponseCode(b.java:75)
      at com.ibm.ws.jmx.connector.client.rest.internal.RESTMBeanServerConnection.loadJMXServerInfo(RESTMBeanServerConnection.java:142)
      at com.ibm.ws.jmx.connector.client.rest.internal.RESTMBeanServerConnection.<init>(RESTMBeanServerConnection.java:114)
      at com.ibm.ws.jmx.connector.client.rest.internal.Connector.connect(Connector.java:315)
      at com.ibm.ws.jmx.connector.client.rest.internal.Connector.connect(Connector.java:103)

▲

Last modified on

Installing and configuring the Persistent Mobile Foundation Application Center

Overview

Jump to

Optional creation of databases

Jump to

Creating the DB2 database for PMF Application Center

Creating the MySQL database for PMF Application Center

Creating the Oracle database for PMF Application Center

Installing the Persistent Mobile Foundation Application Center with Ant tasks

Jump to

Creating and configuring the database for PMF Application Center with Ant tasks

Deploying the Application Center Console and Services with Ant tasks

Manually installing Application Center

Jump to

Configuring the DB2 database manually for Application Center

Jump to

Setting up your DB2 database manually for Application Center

Configuring Liberty profile for DB2 manually for Application Center

Configuring WebSphere Application Server for DB2 manually for Application Center

Configuring Apache Tomcat for DB2 manually for Application Center

Configuring the Apache Derby database manually for Application Center

Jump to

Setting up your Apache Derby database manually for Application Center

Configuring Liberty profile for Derby manually for Application Center

Configuring WebSphere Application Server for Derby manually for Application Center

Configuring Apache Tomcat for Derby manually for Application Center

Configuring the MySQL database manually for Application Center

Jump to

Setting up your MySQL database manually for Application Center

Configuring Liberty profile for MySQL manually for Application Center

Configuring WebSphere Application Server for MySQL manually for Application Center

Configuring Apache Tomcat for MySQL manually for Application Center

Configuring the Oracle database manually for Application Center

Jump to

Setting up your Oracle database manually for Application Center

Configuring Liberty profile for Oracle manually for Application Center

Configuring WebSphere Application Server for Oracle manually for Application Center

Configuring Apache Tomcat for Oracle manually for Application Center

Deploying the Application Center WAR files and configuring the application server manually

Jump to

Configuring the Liberty profile for Application Center manually

Configuring WebSphere Application Server for Application Center manually

Configuring Apache Tomcat for Application Center manually

Deploying the PMF Application Center EAR file and configuring the application server manually

Configuring the Liberty profile for PMF Application Center manually

Configuring WebSphere Application Server for PMF Application Center manually

Configuring Application Center after installation

Jump to

Configuring user authentication for Application Center

Jump to

Configuring the Java EE security roles on WebSphere Application Server full profile

Configuring the Java EE security roles on WebSphere Application Server Liberty profile

Configuring the Java EE security roles on Apache Tomcat

Managing users with LDAP

Jump to

LDAP with WebSphere Application Server V8.x

Configuration of the Application Center for ACL management with LDAP

Configuring LDAP authentication for WebSphere Application Server V8.x

Configuring LDAP ACL management for WebSphere Application Server V8.x

LDAP with Liberty profile

Configuring LDAP authentication for the Liberty profile

Configuring LDAP ACL management (Liberty profile)

LDAP with Apache Tomcat

Configuration of LDAP authentication (Apache Tomcat)

Configuring LDAP ACL management (Apache Tomcat)

Configuring properties of DB2 JDBC driver in WebSphere Application Server

Managing the DB2 transaction log size

Defining the endpoint of the application resources

Endpoint properties

Jump to

Configuring the endpoint of application resources (full profile)

If you deployed WAR files

If you deployed an EAR file

Configuring the endpoint of the application resources (Liberty profile)

Example of setting properties for configuring the endpoint

Configuring the endpoint of the application resources (Apache Tomcat)

Example of setting server.xml properties for configuring the endpoint

Configuring Secure Sockets Layer (SSL)

Jump to

Configuring SSL for WebSphere Application Server full profile
