PMF Analytics Receiver Server Installation Guide

Overview

PMF Analytics Receiver Server is implemented and shipped as Java EE standard web application archive (WAR) file. Therefore, it can be installed in any one of the following supported application servers: WebSphere Application Server, WebSphere Application Server Liberty, or Apache Tomcat (WAR files only).

Jump to

• System requirements
• Capacity considerations
• Installing Persistent Mobile Foundation Analytics Receiver on WebSphere Application Server Liberty
• Installing Persistent Mobile Foundation Analytics Receiver on Tomcat
• Installing Persistent Mobile Foundation Analytics Receiver on WebSphere Application Server
• Installing Persistent Mobile Foundation Analytics Receiver with Ant tasks

System requirements

For complete set of system requirements please refer System Requirements page.

Hardware

• RAM: More RAM is better, but not more than 64 GB per node. 32 GB and 16 GB are also acceptable. Less than 8 GB requires many small nodes in the cluster, and 64 GB is wasteful and problematic due to the way Java uses memory for pointers.
• CPU: CPU tends not to be the performance bottleneck. Use systems with 2 to 8 cores.

Hardware configuration

• Give your JVM ample size to scale the in-memory queue with a size of 10000 (i.e., minimum Xmx as 6 GB).
• If you use BSDs and Linux, ensure that your operating system I/O scheduler is set to deadline or noop, not cfq.

Capacity considerations

Capacity is the single-most common question. How much RAM do you need? How much disk space? How many nodes? The answer is always subjective.

Persistent Mobile Foundation Analytics Receiver does not require disk space since it just receives logs from mobile applications and forwards them to analytics server, there is no storage of events data.

Installing Persistent Mobile Foundation Analytics Receiver on WebSphere Application Server Liberty

Ensure that you already have the Persistent Mobile Foundation Analytics Receiver WAR file. For more information on the installation artifacts, see Installing PMF to an application server. The analytics-receiver.war file is found in the <pmf_install_dir>\Analyticsreceiver folder. For more information about how to download and install WebSphere Application Server Liberty, see the About WebSphere Liberty article on IBM developerWorks .

1. Create a server by running the following command in your ./wlp/bin folder.

   ./server create <serverName>


2. Install features by running the following command from your ./bin folder.

   ./featureManager install jsp-2.2 ssl-1.0 appSecurity-1.0 localConnector-1.0


3. Add the analytics-receiver.war file to the ./usr/servers/<serverName>/apps folder of your Liberty Server.

4. Replace the contents of the **** tag of the `./usr/servers//server.xml` file with the following content:

   <featureManager>
        <feature>jsp-2.2</feature>
        <feature>ssl-1.0</feature>
        <feature>appSecurity-1.0</feature>
        <feature>localConnector-1.0</feature>
   </featureManager>


5. Configure analytics-receiver.war as an application with role-based security in the server.xml file. The following example creates a basic hardcoded user registry and assigns a user to each of the different analytics roles.

   <application id="analytics-receiver" name="analytics-receiver" location="analytics-receiver.war" type="war">
        <application-bnd>
            <security-role name="analytics_administrator">
                <user name="admin"/>
            </security-role>
            <security-role name="analytics_infrastructure">
                <user name="infrastructure"/>
            </security-role>
            <security-role name="analytics_support">
                <user name="support"/>
            </security-role>
            <security-role name="analytics_developer">
                <user name="developer"/>
            </security-role>
            <security-role name="analytics_business">
                <user name="business"/>
            </security-role>
        </application-bnd>
   </application>

   <basicRegistry id="worklight" realm="worklightRealm">
        <user name="business" password="demo"/>
        <user name="developer" password="demo"/>
        <user name="support" password="demo"/>
        <user name="infrastructure" password="demo"/>
        <user name="admin" password="admin"/>
   </basicRegistry>


   For more information on how to configure other user registry types, such as LDAP, see the Configuring a user registry for Liberty topic in the WebSphere Application Server product documentation.

6. Start the Liberty Server by running the following command inside your bin folder

   ./server start <serverName>


7. Verify the service by invoking health url

   http://localhost:9080/analytics-receiver/rest/data/health


For more information on administering WebSphere Application Server Liberty, see the Administering Liberty from the command line topic in the WebSphere Application Server product documentation.

Installing Persistent Mobile Foundation Analytics Receiver on Tomcat

Ensure that you already have the Persistent Mobile Foundation Analytics Receiver WAR files. For more information on the installation artifacts, see Installing PMF to an application server. The analytics-receiver.war file is found in the <pmf_install_dir>\Analyticsreceiver folder. For more information on how to download and install Tomcat, see Apache Tomcat. Ensure that you download the version that supports Java 7 or higher. For more information about which version of Tomcat supports Java 7, see Apache Tomcat Versions.

1. Add analytics-receiver.war file to the Tomcat webapps folder.

2. Uncomment the following section in the conf/server.xml file, which is commented out, in a newly downloaded Tomcat archive.

   <Valve className ="org.apache.catalina.authenticator.SingleSignOn"/>


3. Declare the two war files in the conf/server.xml file, and define a user registry.

   <Context docBase ="analytics-receiver-service" path ="/analytics-receiver"></Context>
   <Realm className ="org.apache.catalina.realm.MemoryRealm"/>


   The MemoryRealm recognizes the users that are defined in the conf/tomcat-users.xml file. For information on other available options, see Apache Tomcat Realm Configuration HOW-TO.

4. Add the following sections to the conf/tomcat-users.xml file to configure a MemoryRealm.

   • Add the security roles.

     <role rolename="analytics_administrator"/>
     <role rolename="analytics_infrastructure"/>
     <role rolename="analytics_support"/>
     <role rolename="analytics_developer"/>
     <role rolename="analytics_business"/>


   • Add a few users with the roles you want.

     <user name="admin" password="admin" roles="analytics_administrator"/>
     <user name="support" password="demo" roles="analytics_support"/>
     <user name="business" password="demo" roles="analytics_business"/>
     <user name="developer" password="demo" roles="analytics_developer"/>
     <user name="infrastructure" password="demo" roles="analytics_infrastructure"/>


   • Start your Tomcat Server and verify the service by invoking the health url.

     http://localhost:8080/analytics-receiver/rest/data/health


   For more information about how to start the Tomcat Server, see the official Tomcat site. For example, Apache Tomcat 7, for Tomcat 7.0.

Installing Persistent Mobile Foundation Analytics Receiver on WebSphere Application Server

For information on initial installation steps for acquiring the installation artifacts (JAR and EAR files), see Installing PMF to an application server. The analytics-receiver.war file is found in the <pmf_install_dir>\Analyticsreceiver folder.

The following steps describe how to install and run the Analytics EAR file on WebSphere Application Server. If you are installing the individual WAR files on WebSphere Application Server, follow only steps 2 to 7 on the analytics-receiver WAR file after you deploy.

1. Deploy the WAR file to the application server, but do not start it. For information about how to install an EAR file on WebSphere Application Server, see the Installing enterprise application files with the console topic in the WebSphere Application Server product documentation.

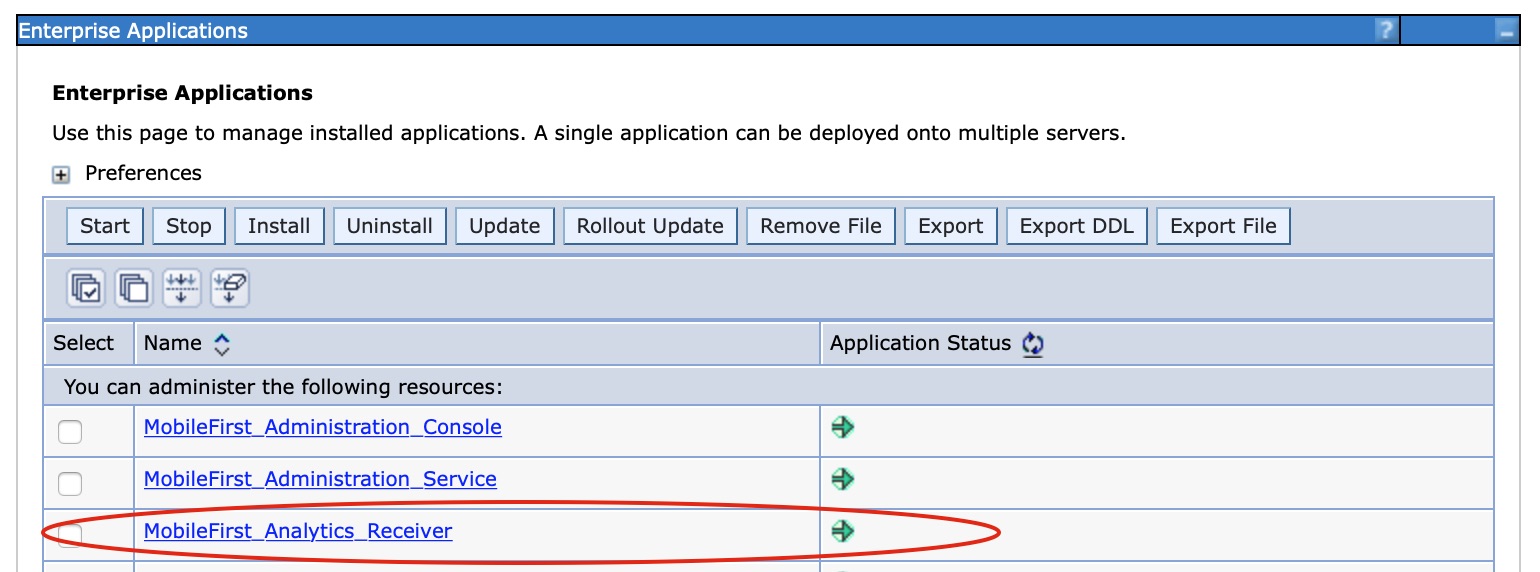

2. Select the MobileFirst Analytics Receiver application from the Enterprise Applications list.

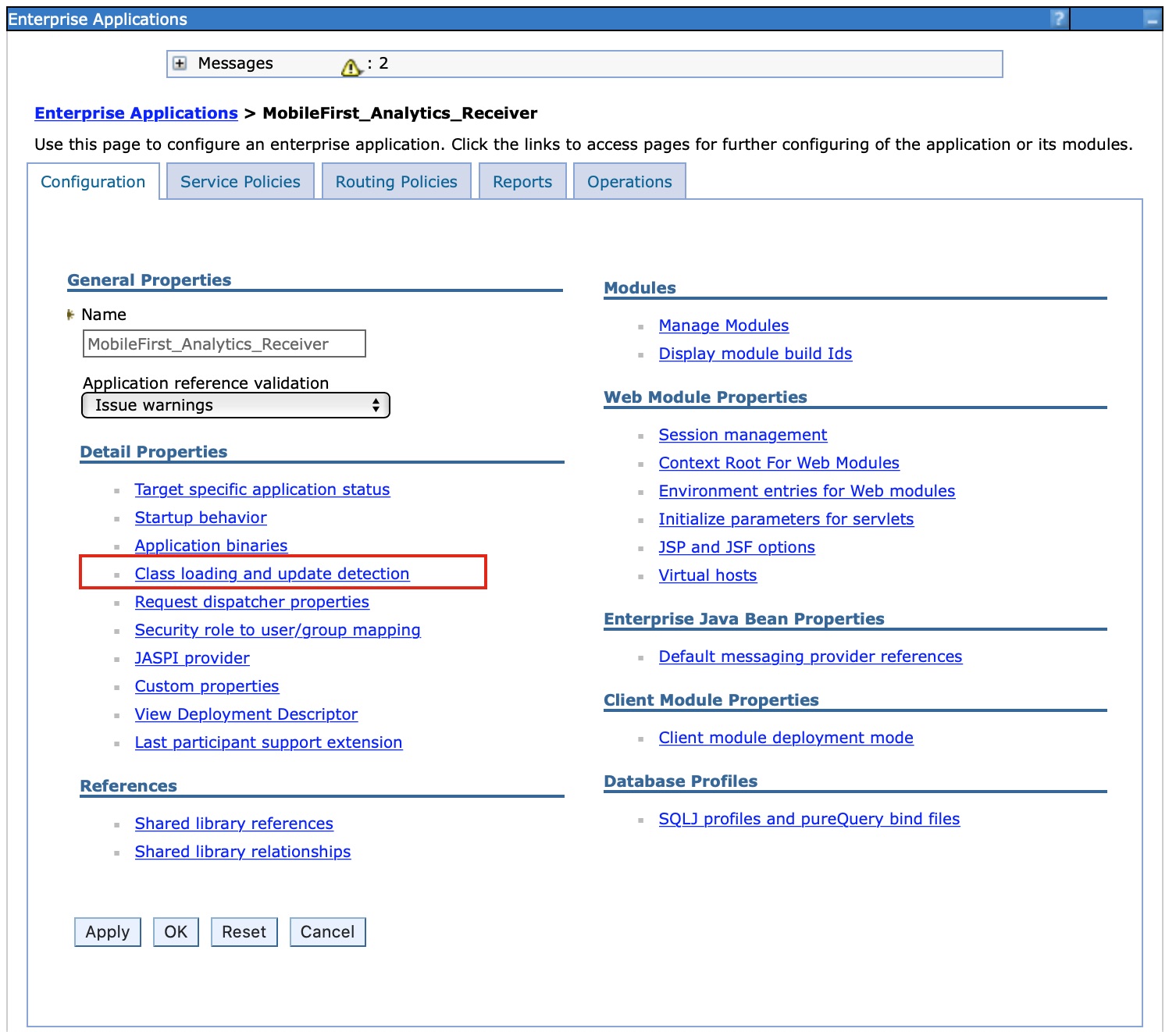

3. Click Class loading and update detection.

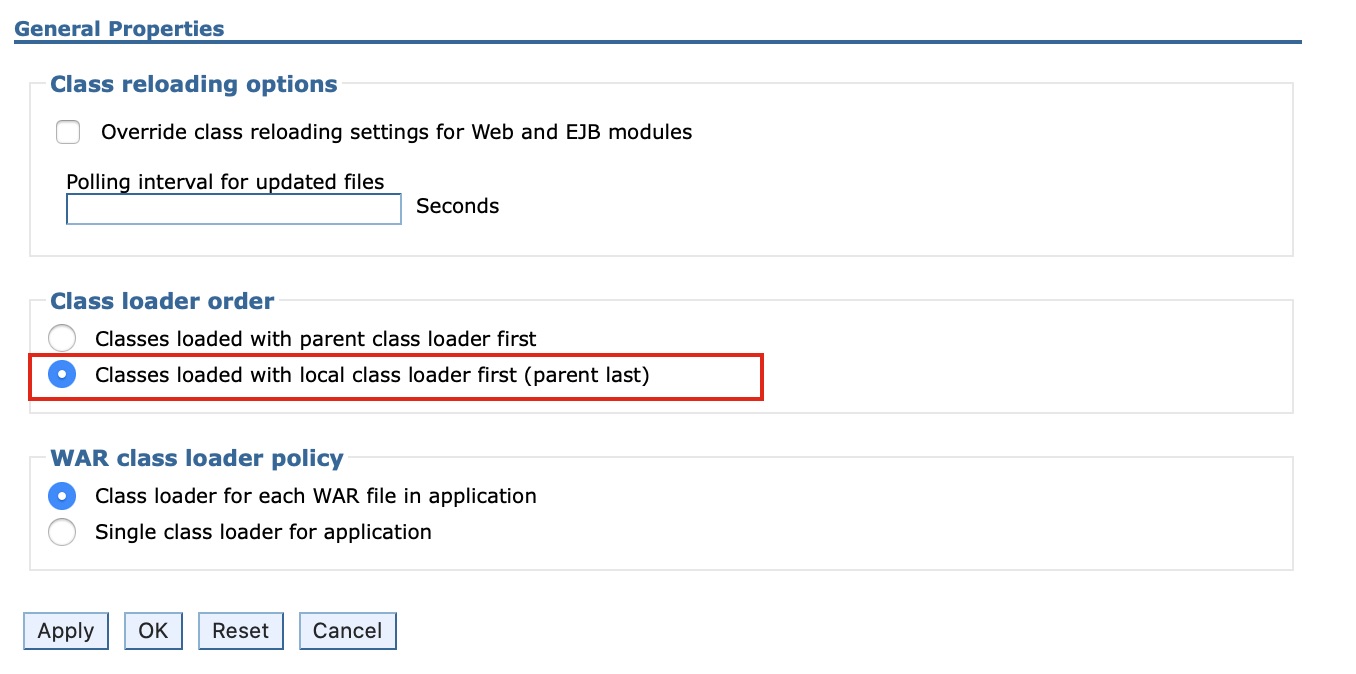

4. Set the class loading order to parent last.

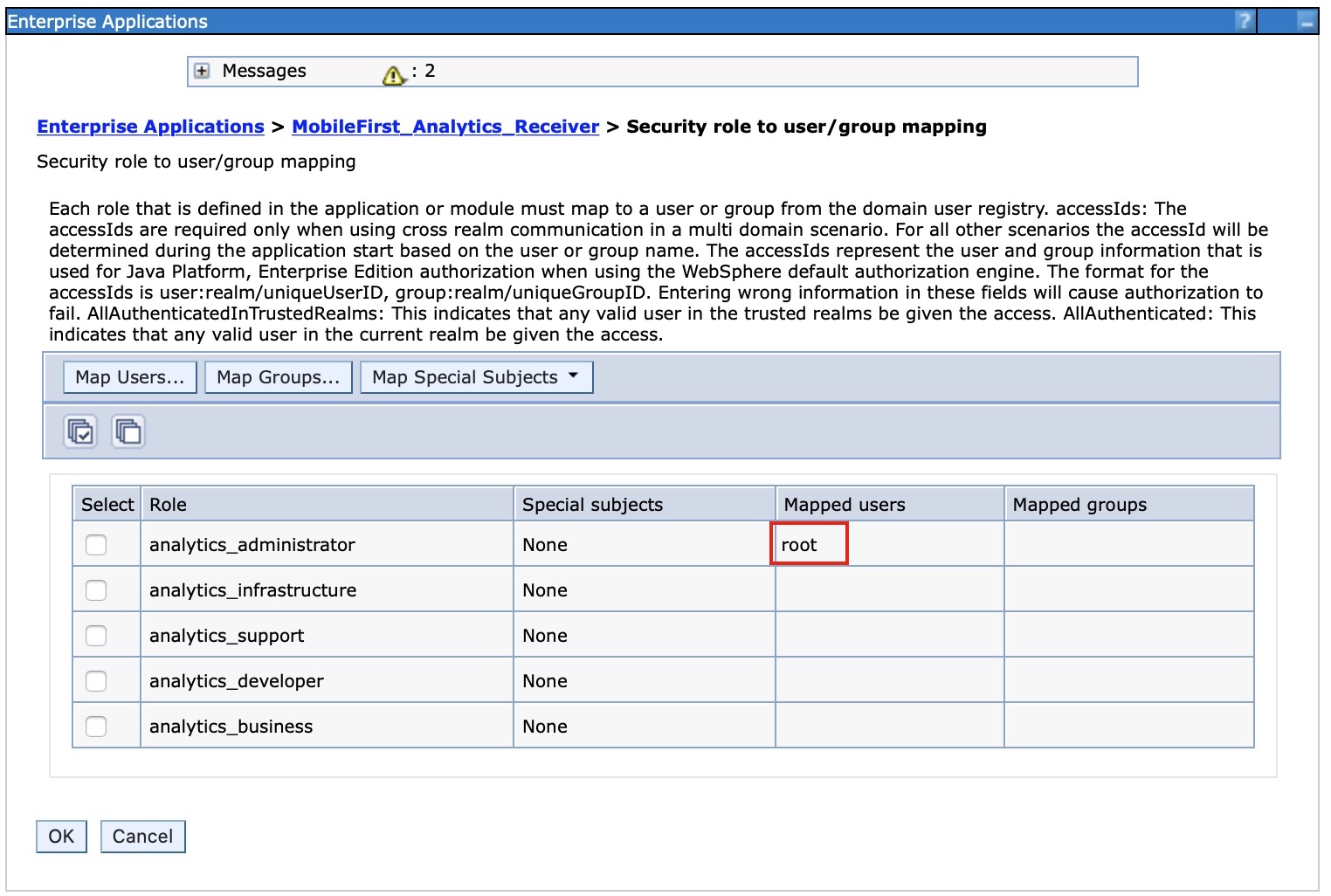

5. Click Security role to user/group mapping to map the admin user.

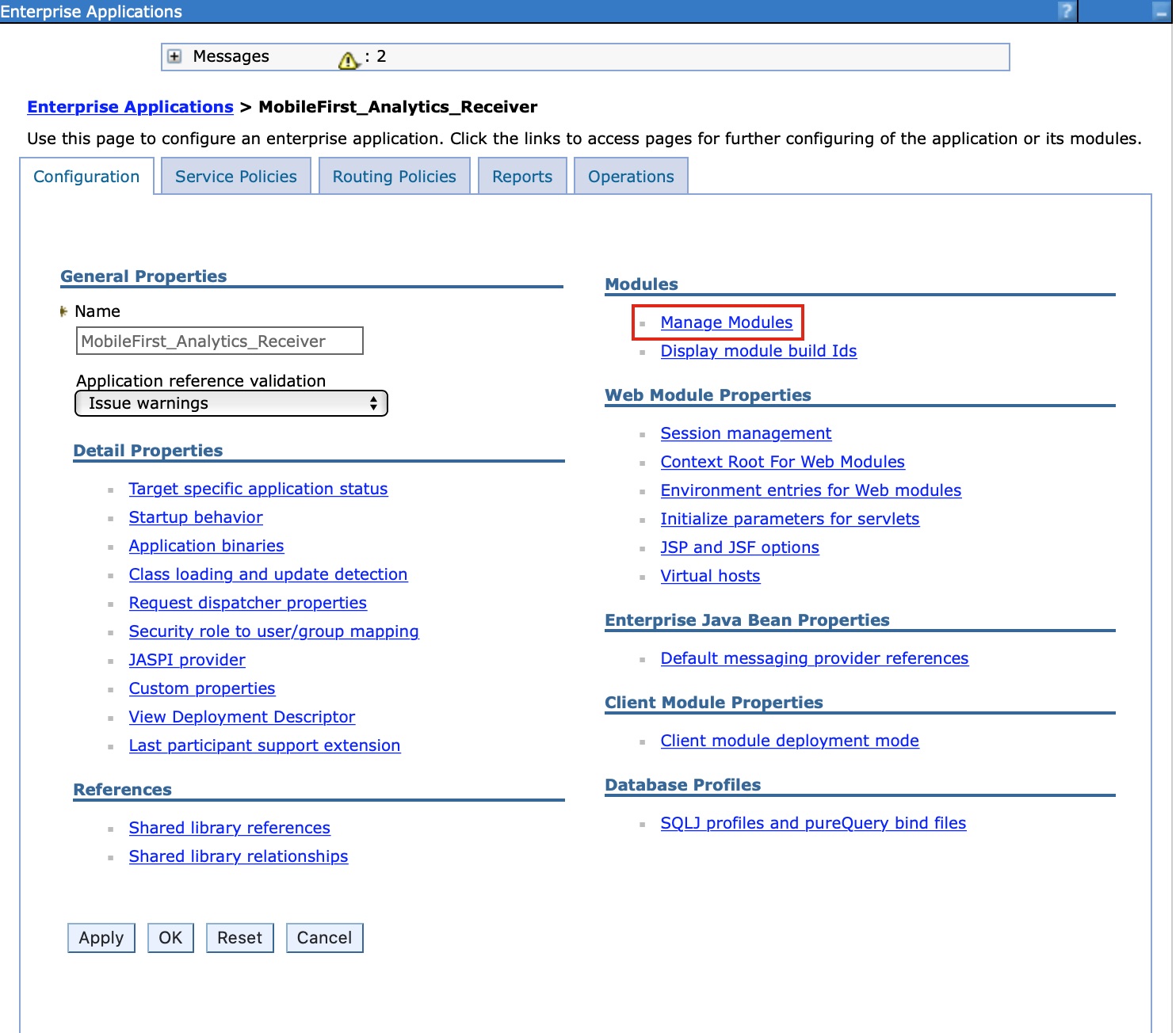

6. Click Manage Modules.

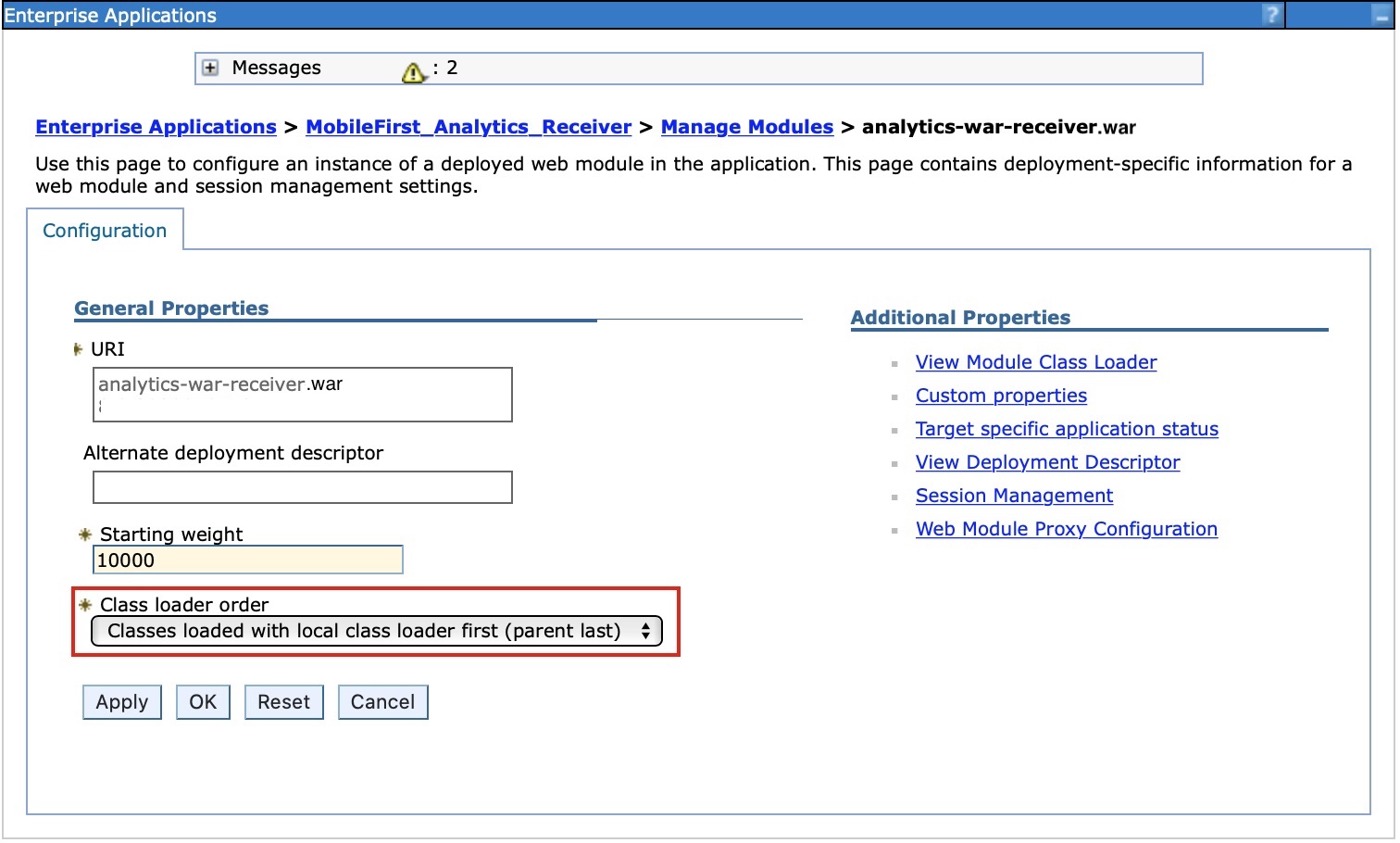

7. Select the analytics-receiver module and change the class loader order to parent last.



8. Enable Administrative security and application security in the WebSphere Application Server administration console:
   • Log in to the WebSphere Application Server administration console.
   • In the Security > Global Security menu, ensure that Enable administrative security and Enable application security are both selected.

     Note: Application security can be selected only after Administrative security is enabled.

   • Click OK and save changes.
9. To enable the analytics service to be accessed via Swagger documentation, complete the following steps:
   • Click Servers > Server Types > WebSphere application servers and choose the server on which Analytics service is deployed, from the list of servers.
   • Under Server Infrastructure, click Java and then navigate to process management > Process definition > Java virtual machine > Custom properties.
     • Set the following custom property
       Property Name: com.ibm.ws.classloader.strict
       Value: true
10. Start the Persistent Mobile Foundation Analytics Receiver application and verify the health url is accessible in the browser: http://<hostname>:<port>/analytics-receiver/rest/data/health.

Installing Persistent Mobile Foundation Analytics Receiver with Ant tasks

Ensure that you have the necessary WAR and configuration files: analytics-receiver.war. For more information on the installation artifacts, see Installing PMF to an application server. The analytics-receiver.war file is found in the MobileFoundationServer\AnalyticsReceiver.

You must run the Ant task on the computer where the application server is installed, or the Network Deployment Manager for WebSphere Application Server Network Deployment. If you want to start the Ant task from a computer on which PMF is not installed, you must copy the file \<pmf_install_dir\>/MobileFoundationServer/mfp-ant-deployer.jar to that computer.

Note: The pmf_install_dir is the directory where you installed PMF.

1. Edit the Ant script that you will use later to deploy Persistent Mobile Foundation Analytics Receiver WAR files.
   • Review the sample configuration files in Sample configuration files for Persistent Mobile Foundation Analytics Receiver.
   • Replace the placeholder values with the properties at the beginning of the file.

   Note: The following special characters must be escaped when they are used in the values of the Ant XML scripts:

   • The dollar sign ($) must be written as $$, unless you explicitly want to reference an Ant variable through the syntax ${variable}, as described in the Properties section of the Apache Ant Manual.
   • The ampersand character (&) must be written as &, unless you explicitly want to reference an XML entity.
   • Double quotation marks (“) must be written as ", except when it is inside a string that is enclosed in single quotation marks.

2. To deploy the WAR file, run the following command:

   ant -f configure-appServer-analytics-receiver.xml install


   This installs a node of Persistent Mobile Foundation Analytics Receiver on the server or on each member of a cluster, if you install on WebSphere Application Server Network Deployment.

3. Save the Ant file. You might need it later to apply a fix pack or perform an upgrade. If you do not want to save the passwords, you can replace them by ************ (12 asterisks) for interactive prompting.
