Live Update

Overview

User segmentation is the practice of dividing users into groups that reflect similarity among users in each group. A common example is geographic segmentation, that is, dividing users on a geographical basis. The goal of segmenting users is to decide how to relate to them in each segment in order to maximize value.

The Live Update feature in PMF provides a simple way to define and serve different configurations for each segment of users of an application. It includes a component in the PMF Operations Console for defining the structure of the configuration as well as the values of the configuration for each segment. Also provided is a client SDK (available for Android and iOS native and for Cordova applications) for consuming the configuration.

Common Use Cases

Live Update supports defining and consuming segment-based configurations, making it easy to make segment-based customizations to the application. Common use cases can be:

• Release trains and feature flipping
• A/B testing
• Context-based customization of the application (e.g. geographic segmentation)

Jump to:

• Live Update Architecture
• Adding Live Update to PMF
• Configuring Application Security
• Schema and Segments
• Adding Live Update SDK to Applications
• Using the Live Update SDK
• Advanced Topics
• Sample Application

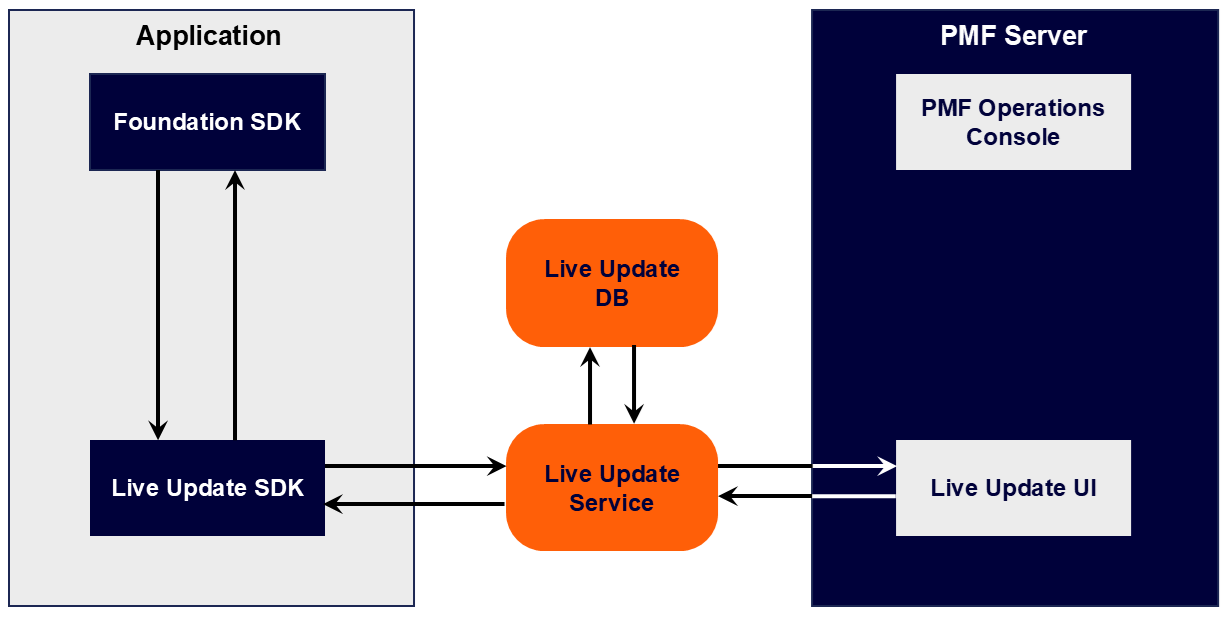

Live Update Architecture

The following system components function together in order to provide the Live Update functionality.

• Live Update adapter: an adapter which provides:
• Application schema and segments management
• Serving configurations to applications
• Segment Resolver adapter: Optional. A custom adapter that is implemented by the developer. The adapter receives application context (such as device and user context, as well as custom parameters) and returns the ID of a segment that corresponds to the context.
• Client-side SDK: the Live Update SDK is used to retrieve and access configuration elements such as features and properties from the PMF.
• PMF Operations Console: used for configuring the Live Update adapter and settings.
• Configuration Service: Internal. Provides configuration management services for the Live Update adapter.

Adding Live Update to PMF

By default, Live Update Settings in the PMF Operations Console is hidden. To enable, the provided Live Update adapter needs to be deployed.

1. Open the PMF Operations Console. From the sidebar navigation click on Download Center → Tools tab.
2. Download and deploy the Live Update adapter.

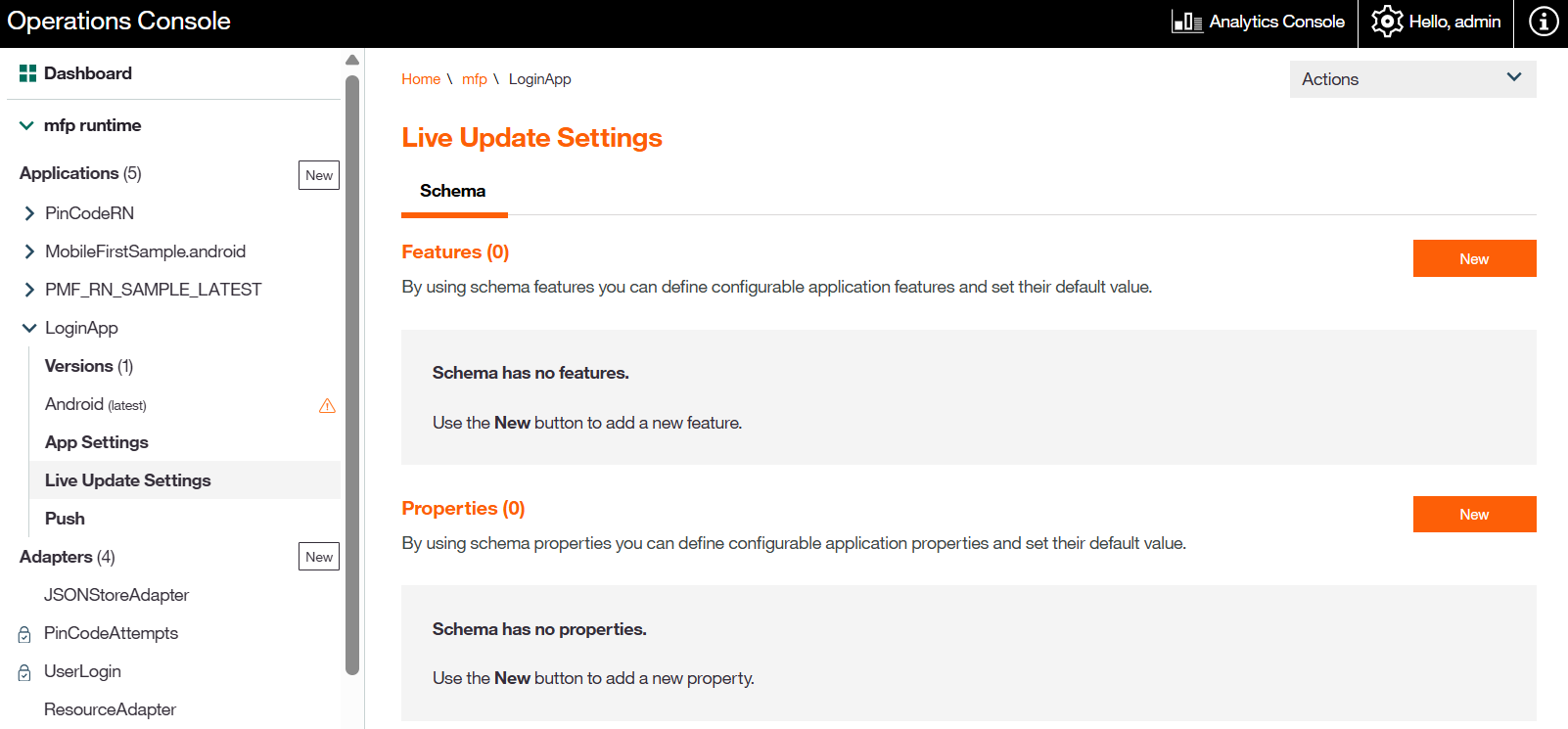

Once deployed, the Live Update Settings screen is then revealed for each registered application.

Configuring Application Security

In order to allow integration with Live Update, a scope element is required. Without it, the adapter will reject requests from client applications.

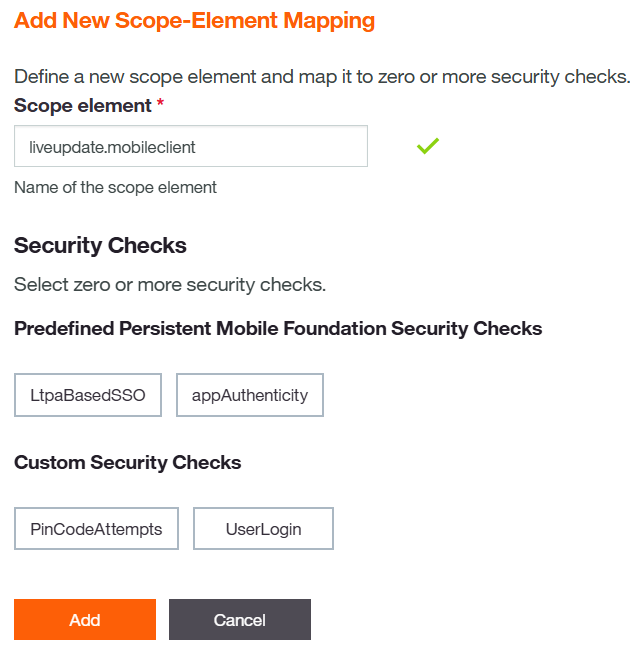

Load the PMF Operations Console and click on [your application] → Security tab → Scope-Elements Mapping. Click New and enter the scope element configuration-user-login. Then, click Add.

You can also map the scope element to a security check in case you’re using one in your application.

Learn more about the PMF security framework

Schema and Segments

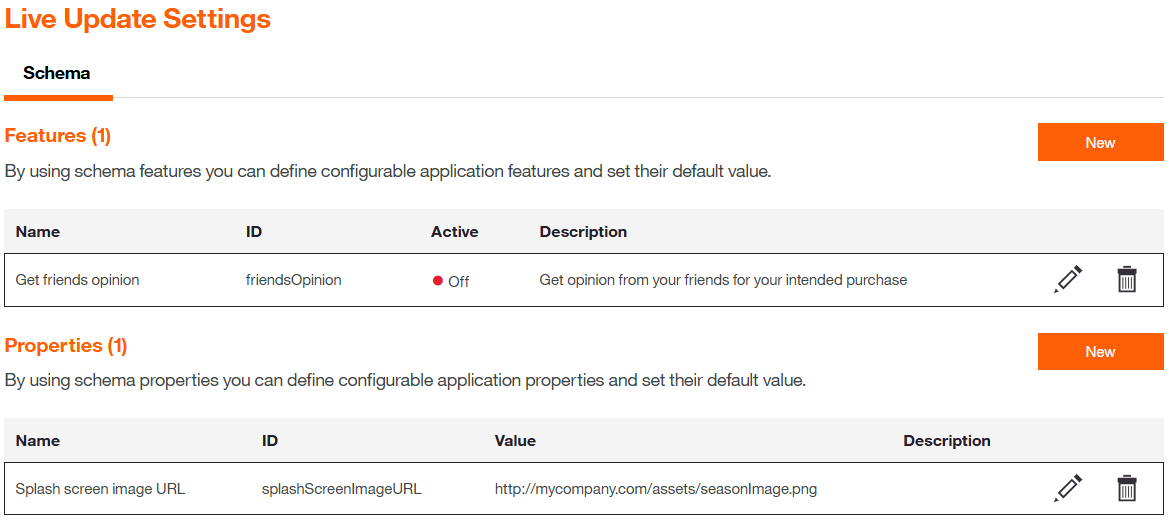

Two tabs are available in the Live Update Settings screen:

What is Schema

A schema is where features and properties are defined.

• Using “features” you can define configurable application features and set their default value.
• Using “properties” you can define configurable application properties and set their default value.

Segments

Segments define unique application behaviors by customizing the default features and properties defined by the schema.

Adding Schema and Segments

Before adding a schema and segments for an applicaiton, the developer or product management team need to reach a decision about several aspects:

• The set of features to utilize Live Update for as well as their default state
• The set of configurable string properties and their default value
• The market segments for the application

For each market segment it should be decided:

• What is the state of every feature, and how this state can change during the application lifetime
• What is the value of every property, and how this value can change during the application lifetime

Once the parameters are decided upon, Schema features & properties and Segments can be added.
To add, click New and provide the requested values.

Define Schema features and properties with default values

Define segments that correspond to market segments

Override default values of features and properties

Enable a feature and change its default state.

Override the default value of a property.

Adding Live Update SDK to applications

The Live Update SDK provides developers with API to query runtime configuration features and properties that were previously defined in the Live Update Settings screen of the registered application in the PMF Operations Console.

For Cordova.

• Cordova plugin documentation

For Android.

• Android SDK documentation

For iOS.

• iOS Swift SDK documentation

Adding the Cordova plugin

In your Cordova application folder run:

cordova plugin add cordova-plugin-mfp-liveupdate

Adding the iOS SDK

1. Edit your application’s podfile by adding the PersistentMobileFoundationLiveUpdate pod.
   For example:

   use_frameworks!

   target 'your-Xcode-project-target' do
      pod 'PersistentMobileFoundation'
      pod 'PersistentMobileFoundationLiveUpdate'
   end


2. From a command-line window, nagivate to the Xcode project’s root folder and run the commmand: pod install.

Adding the Android SDK

1. In Android Studio, select Android → Gradle Scripts, then select the build.gradle (Module: app) file.

2. Add ibmmobilefirstplatformfoundationliveupdate inside dependencies:

   dependencies {
        compile group: 'com.ibm.mobile.foundation',
        name: 'ibmmobilefirstplatformfoundation',
        version: '9.0.+',
        ext: 'aar',
        transitive: true

        compile group: 'com.ibm.mobile.foundation',
        name: 'ibmmobilefirstplatformfoundationliveupdate',
        version: '9.0.0',
        ext: 'aar',
        transitive: true
   }


Using the Live Update SDK

There are several approaches to using the Live Update SDK.

Pre-determined Segment

Implement logic to retrieve a configuration for a relevant segment.
Replace “segment-name”, “property-name” and “feature-name” with your own.

Cordova

    var input = { segmentId :'segment-name' };
    LiveUpdateManager.obtainConfiguration(input,function(configuration) {
        // do something with configration (JSON) object, for example,
        // if you defined in the server a feature named 'feature-name':
        // if (configuration.features.feature-name) {
        //   console.log(configuration.properties.property-name);
	// }
    } ,
    function(err) {
        if (err) {
           alert('liveupdate error:'+err);
        }
  });

iOS

LiveUpdateManager.sharedInstance.obtainConfiguration("segment-name", completionHandler: { (configuration, error) in
  if error == nil {
    print (configuration?.getProperty("property-name"))
    print (configuration?.isFeatureEnabled("feature-name"))
  } else {
    print (error)
  }
})

Android

LiveUpdateManager.getInstance().obtainConfiguration("segment-name", new ConfigurationListener() {

    @Override
    public void onSuccess(final Configuration configuration) {
        Log.i("LiveUpdateDemo", configuration.getProperty("property-name"));
        Log.i("LiveUpdateDemo", configuration.isFeatureEnabled("feature-name").toString());
    }

    @Override
    public void onFailure(WLFailResponse wlFailResponse) {
        Log.e("LiveUpdateDemo", wlFailResponse.getErrorMsg());
    }
});

With the Live Update configuration retrieved, the applicative logic and the application flow can be based on the state of features and properties. For example, if today is a national holiday, introduce a new marketing promotion in the application.

Segment Resolver adapter

In the Live Update Architecture topic, a “segment resolver” adapter was mentioned.
The purpose of this adapter is to provide custom business logic for retrieving a segment based on the application/device/user context and applicative custom parameters.

To use a Segment Resolver adapter:

1. Create a new Java adapter.
2. Define the adapter as the Segment Resolver adpater in Adapters → Live Update adapter → segmentResolverAdapterName.
3. When development is done remember to build and deploy it as well.

The Segment Resolver adapter defines a REST interface. The request to this adapter contains in its body all the required information to decide which segment the end-user belongs to and sends it back to the application.

To obtain the configuration by parameters, use the Live Update API to send the request:

Cordova Resolver

var input = { params : { 'paramKey': 'paramValue'} ,useClientCache : true };
LiveUpdateManager.obtainConfiguration(input,function(configuration) {
        // do something with configration (JSON) object, for example:
        // console.log(configuration.properties.property-name);                                                                                                             // console.log(configuration.data.features.feature-name);
    } ,
    function(err) {
        if (err) {
           alert('liveupdate error:'+err);
        }
  });

iOS

LiveUpdateManager.sharedInstance.obtainConfiguration(["paramKey":"paramValue"], completionHandler: { (configuration, error) in
  if error == nil {
    print (configuration?.getProperty("property-name"))
    print (configuration?.isFeatureEnabled("feature-name"))
  } else {
    print (error)
  }
})

Android

Map <String,String> params = new HashMap<>();
params.put("paramKey", "paramValue");

LiveUpdateManager.getInstance().obtainConfiguration(params , new ConfigurationListener() {

    @Override
    public void onSuccess(final Configuration configuration) {
        Log.i("LiveUpdateDemo", configuration.getProperty("property-name"));
        Log.i("LiveUpdateDemo", configuration.isFeatureEnabled("feature-name").toString());
    }

    @Override
    public void onFailure(WLFailResponse wlFailResponse) {
        Log.e("LiveUpdateDemo", wlFailResponse.getErrorMsg());
    }
});

Adapter implementation

The arguments that are provided by the application using the Live Update client SDK are then passed to the Live Update adapter and from there to the Segment Resolver adapter. This is done automatically by the Live Update adapter without any developer action needed.

Update your newly created Segment Resolver adapter’s implementation to handle these arguments to return the relevant segment.
The below is sample code you can use.

Note: Make sure to add the Gson dependency in your adapter’s pom.xml:

<dependency>
    <groupId>com.google.code.gson</groupId>
    <artifactId>gson</artifactId>
    <version>2.7</version>
</dependency>

SampleSegmentResolverAdapterApplication.java

@Api(value = "Sample segment resolver adapter")
@Path("/")
public class SampleSegmentResolverAdapter {

    private static final Gson gson = new Gson();
    private static final Logger logger = Logger.getLogger(SampleSegmentResolverAdapter.class.getName());

    @POST
    @Path("segment")
    @Produces("text/plain;charset=UTF-8")
    @OAuthSecurity(enabled = true, scope = "configuration-user-login")
    public String getSegment(String body) throws Exception {
        ResolverAdapterData data = gson.fromJson(body, ResolverAdapterData.class);
        String segmentName = "";

        // Get the custom arguments
        Map<String, List<String>> arguments = data.getQueryArguments();

        // Get the authenticatedUser object
        AuthenticatedUser authenticatedUser = data.getAuthenticatedUser();
        String name = authenticatedUser.getDisplayName();

        // Get registration data such as device and application
        RegistrationData registrationData = data.getRegistrationData();
        ApplicationKey application = registrationData.getApplication();
        DeviceData deviceData = registrationData.getDevice();

        // Based on the above context (arguments, authenticatedUser and registrationData) resolve the segment name.
        // Write your custom logic to resolve the segment name.

        return segmentName;
    }
}

SampleSegmentResolverAdapter.java

public class ResolverAdapterData {
    public ResolverAdapterData() {
    }

    public ResolverAdapterData(AdapterSecurityContext asc, Map<String, List<String>> queryArguments)
    {
        ClientData cd = asc.getClientRegistrationData();

        this.authenticatedUser = asc.getAuthenticatedUser();
        this.registrationData = cd == null ? null : cd.getRegistration();
        this.queryArguments = queryArguments;
    }

    public AuthenticatedUser getAuthenticatedUser() {
        return authenticatedUser;
    }

    public RegistrationData getRegistrationData() {
        return registrationData;
    }

    public Map<String, List<String>> getQueryArguments() {
        return queryArguments;
    }

    private AuthenticatedUser authenticatedUser;
    private RegistrationData registrationData;
    private Map<String, List<String>> queryArguments;
}

REST interface of the Segment Resolver adapter

Request

Response

Advanced Topics

Import/Export

Once a schmea and segments have been defined, the system administrator can export and import them to other server instances.

Export schema

curl --user admin:admin http://localhost:9080/mfpadmin/management-apis/2.0/runtimes/mfp/admin-plugins/liveUpdateAdapter/com.sample.HelloLiveUpdate/schema > schema.txt

Import schema

curl -X PUT -d @schema.txt --user admin:admin -H "Content-Type:application/json" http://localhost:9080/mfpadmin/management-apis/2.0/runtimes/mfp/admin-plugins/liveUpdateAdapter/com.sample.HelloLiveUpdate/schema

• Replace “admin:admin” with your own (default is “admin”)
• Replace “localhost” and the port number with your own if needed
• Replace the application identifier “com.sample.HelloLiveUpdate” with your own application’s.

Export segment(s)

curl --user admin:admin http://localhost:9080/mfpadmin/management-apis/2.0/runtimes/mfp/admin-plugins/liveUpdateAdapter/com.sample.HelloLiveUpdate/segment?embedObjects=true > segments.txt

Import segment(s)

#!/bin/bash
segments_number=$(python -c 'import json,sys;obj=json.load(sys.stdin);print len(obj["items"]);' < segments.txt)
counter=0
while [ $segments_number -gt $counter ]
do
    segment=$(cat segments.txt | python -c 'import json,sys;obj=json.load(sys.stdin);data_str=json.dumps(obj["items"]['$counter']);print data_str;')
    echo $segment | curl -X POST -d @- --user admin:admin --header "Content-Type:application/json" http://localhost:9080/mfpadmin/management-apis/2.0/runtimes/mfp/admin-plugins/liveUpdateAdapter/com.sample.HelloLiveUpdate/segment
    ((counter++))
done

• Replace “admin:admin” with your own (default is “admin”)
• Replace “localhost” and the port number with your own if needed
• Replace the application identifier “com.sample.HelloLiveUpdate” with your own application’s.

Caching

Caching is enabled by default in order to avoid network latency. This means that updates may not take place immediately.
Caching can be disabled if more frequent updates are required.

Cordova

controlling client side cache by using an optional useClientCache boolean flag:

	var input = { segmentId :'18' ,useClientCache : false };
        LiveUpdateManager.getConfiguration(input,function(configuration) {
                // do something with resulting configuration, for example:
                // console.log(configuration.data.properties.property-name);
                // console.log(configuration.data.features.feature-name);
        } ,
        function(err) {
                if (err) {
                   alert('liveupdate error:'+err);
                }
  });

iOS

LiveUpdateManager.sharedInstance.obtainConfiguration("segment-name", useCache: false, completionHandler: { (configuration, error) in
  if error == nil {
    print (configuration?.getProperty("property-name"))
    print (configuration?.isFeatureEnabled("feature-name"))
  } else {
    print (error)
  }
})

Android

LiveUpdateManager.getInstance().obtainConfiguration("segment-name", false, new ConfigurationListener() {

    @Override
    public void onSuccess(final Configuration configuration) {
      Log.i("LiveUpdateSample", configuration.getProperty("property-name"));
      Log.i("LiveUpdateSample", configuration.isFeatureEnabled("feature-name").toString());
    }

    @Override
    public void onFailure(WLFailResponse wlFailResponse) {
        Log.e("LiveUpdateSample", wlFailResponse.getErrorMsg());
    }
});

Cache expiration

The expirationPeriod value that is defined in Adapters → Live Update adapter dictates the length of time until the caching expires.

Sample application

In the sample application you select a country flag and using Live Update the app then outputs text in language that corresponds to the selected country. If enabling the map feature and providing the map, a map of the corresponding country will be displayed.

Click to download the Xcode project.
Click to download the Android Studio project.

Sample usage

Follow the sample’s README.md file for instructions.

Changing Live Update Settings

Each segment gets the default value from the schema. Change each one according to the language. For example, for French add: helloText - Bonjour le monde.

In PMF Operations Console → [your application] → Live Update Settings → Segments tab, click on the Properties link that belongs, for example, to FR.

• Click the Edit icon and provide a link to an image that representes for example the France geography map.
• To see the map while using the app, you need to enable to includeMap feature.
